XWolf 700L
XWolf 700
Attention, here is desert where wolf often was. The 4 - wheel driving system with refined craftsmanship of LONCIN XWolf 700 ATV, a best friend helps stepping down everything under exploring tire - print, the steep mountain, rapid stream, forest behind mystery, and desert full of rage, who applies best condition to all terrains. Nothing is a block in the way for your deep love with cross - country driving, get adventure flashing most in your own kingdom of fun, look for a way forward, to be a lonely warrior in wolf - like way with LONCIN XWolf 700 ATV.
700
Multi-angle
images
EFI of BOSCH
Strong suitability and stable performance
Individual suspension rack of double cross arm for both front and rear
Individual suspension rack of double cross arm for both front and rear, analyzied by systematic K&C and adjusted shock absorber of oil-air mixture, bigger free-play design for front and rear, better performance for cross-country.
Effective braking system
Disc brake for 4 wheels of 210mm, piston caliper of auto grade, jointly brake by hand and foot, with strong braking force and quick response
4 wheel driving by 3 modes
4 wheel driving by 3 modes, fast shift along 2WD, 4WD and 4WD locking-up, provides more excellent experience for cross-country driving.
Electric assistant steering of EPS
Easy steering of EPS， reduces fatigue for cross-country of long time.
Excellent loading
Maximal of 230kg（About 510lb），plastic luggage rack with cover for both front and rear, firmly fixes luggage and other materials.
Super space of 25L for fuel tank
EPA the driving range reaches 300km
Digital and color speedometer of multi-function
Simple and clear design for speedometer display page, know everything about vehicle easily while making more comfortable driving.
Specifications
| Engine specification | Single cylinder、SOHC、4 valves、oil & liquid-cooled |
| Displacement | 686 |
| Bore x Stroke | 102 × 84mm |
| Compression ratio | 9.7:1 |
| Maximal power | 35kW/5500rpm |
| Maximal torque | 66N·m/4500rpm |
| Fuel supply | BOSCH ® EFI |
| Speed transmission | CVT, P/R/N/H/L |
| LxWxH | 2040×1190×1298mm |
| Wheelbase | 1300mm |
| Seat height | 890(To ground）mm |
| Minimum ground clearance | 280mm |
| Minimum turning radius | 3.75m |
| Dry weight | 367kg |
| Maximal loading | 230kg |
| Fuel tank capacity | 25L |
| Drive mode | 2WD/4WD/4WD Locking-up |
| Brake mode | Disc brake for 4 wheels |
| Suspension mode | Front：Double A-shaped arm of arch Rear：Double A-shaped arm |
| Front shock absorber | Oil-air mixture |
| Rear shock absorber | Oil-air mixture |
| Wheel hub specification | Aluminium wheel of 12 inches |
| Front tire | AT25×8-12 |
| Rear tire | AT25×10-12 |

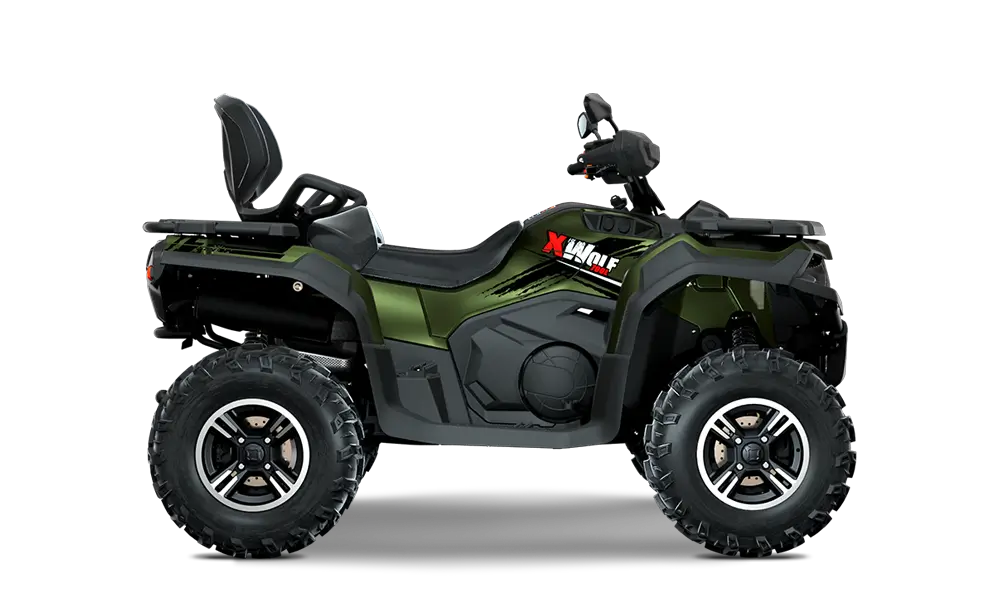

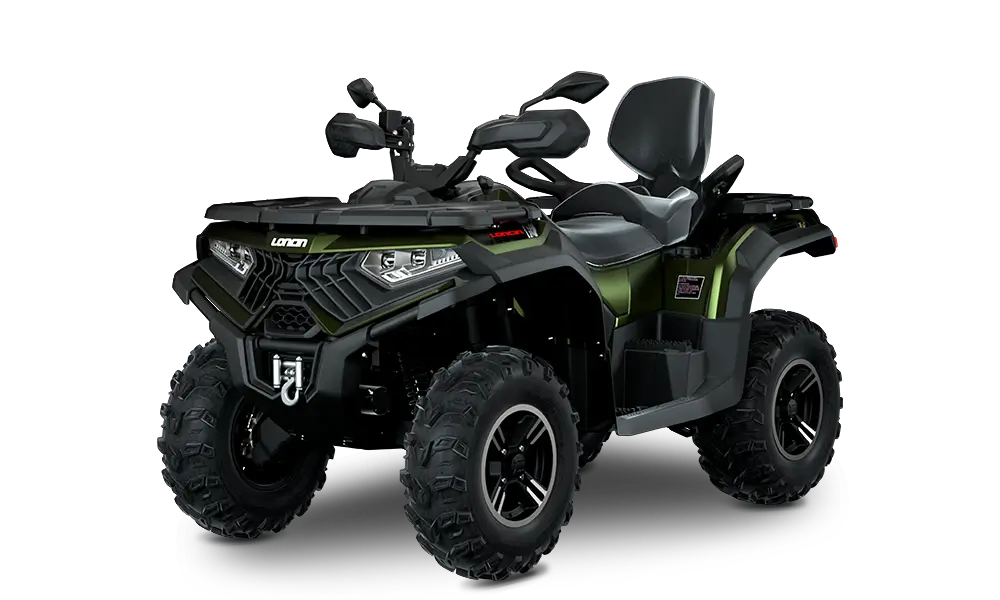

XWolf 700L
A deep love for liberty faraway, sets free soul of fun so lively. Feel easy and pack luggage, robust power of loading takes you and all cherishing belongings, to leave happy memory on every rough road you had been ever passing, while forever lasting. Go all lengths for free running, the sheer feeling of conquering all roads with LONCIN XWolf 700L, also to be the most collectable medal throughout lifetime full of happiness.
700L
Multi-angle
images

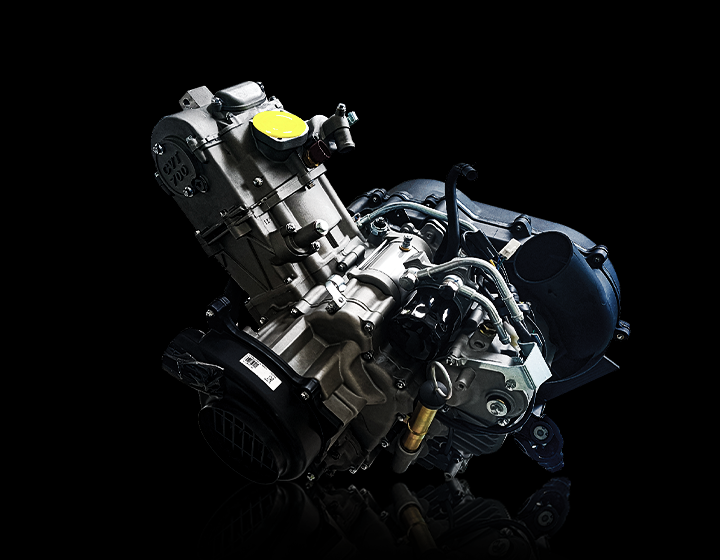

EFI of BOSCH
Strong suitability and stable performance
Individual suspension rack of double cross arm for both front and rear
Individual suspension rack of double cross arm for both front and rear, analyzied by systematic K&C and adjusted shock absorber of oil-air mixture, bigger free-play design for front and rear, better performance for cross-country.
Effective braking system
Disc brake for 4 wheels of 210mm, piston caliper of auto grade, jointly brake by hand and foot, with strong braking force and quick response
4 wheel driving by 3 modes
4 wheel driving by 3 modes, fast shift along 2WD, 4WD and 4WD locking-up, provides more excellent experience for cross-country driving.
Electric assistant steering of EPS
Easy steering of EPS， reduces fatigue for cross-country of long time.
Excellent loading
Maximal of 230kg（About 510lb），plastic luggage rack with cover for both front and rear, firmly fixes luggage and other materials.
Super space of 25L for fuel tank
EPA the driving range reaches 300km
Digital and color speedometer of multi-function
Simple and clear design for speedometer display page, know everything about vehicle easily while making more comfortable driving.
Comfortable double seat
Material PP-GF30 for backrest and bracket, suitable curve of people's back and improve comfortability.
Specifications
| Engine specification | Single cylinder、SOHC、4 valves、oil & liquid-cooled |
| Displacement | 686 |
| Bore x Stroke | 102 × 84mm |
| Compression ratio | 9.7:1 |
| Maximal power | 35kW/5500rpm |
| Maximal torque | 66N·m/4500rpm |
| Fuel supply | BOSCH ® EFI |
| Speed transmission | CVT, P/R/N/H/L |
| LxWxH | 2220×1190×1438mm |
| Wheelbase | 1480mm |
| Seat height | 890(To ground）mm |
| Minimum ground clearance | 280mm |
| Minimum turning radius | 3750mm |
| Dry weight | 385kg |
| Maximal loading | 230kg |
| Fuel tank capacity | 25L |
| Drive mode | 2WD/4WD/4WD Locking-up |
| Brake mode | Disc brake for 4 wheels |
| Suspension mode | Front：Double A-shaped arm of arch Rear：Double A-shaped arm |
| Front shock absorber | Oil-air mixture |
| Rear shock absorber | Oil-air mixture |
| Wheel hub specification | Aluminium wheel of 12 inches |
| Front tire | AT25×8-12 |
| Rear tire | AT25×10-12 |

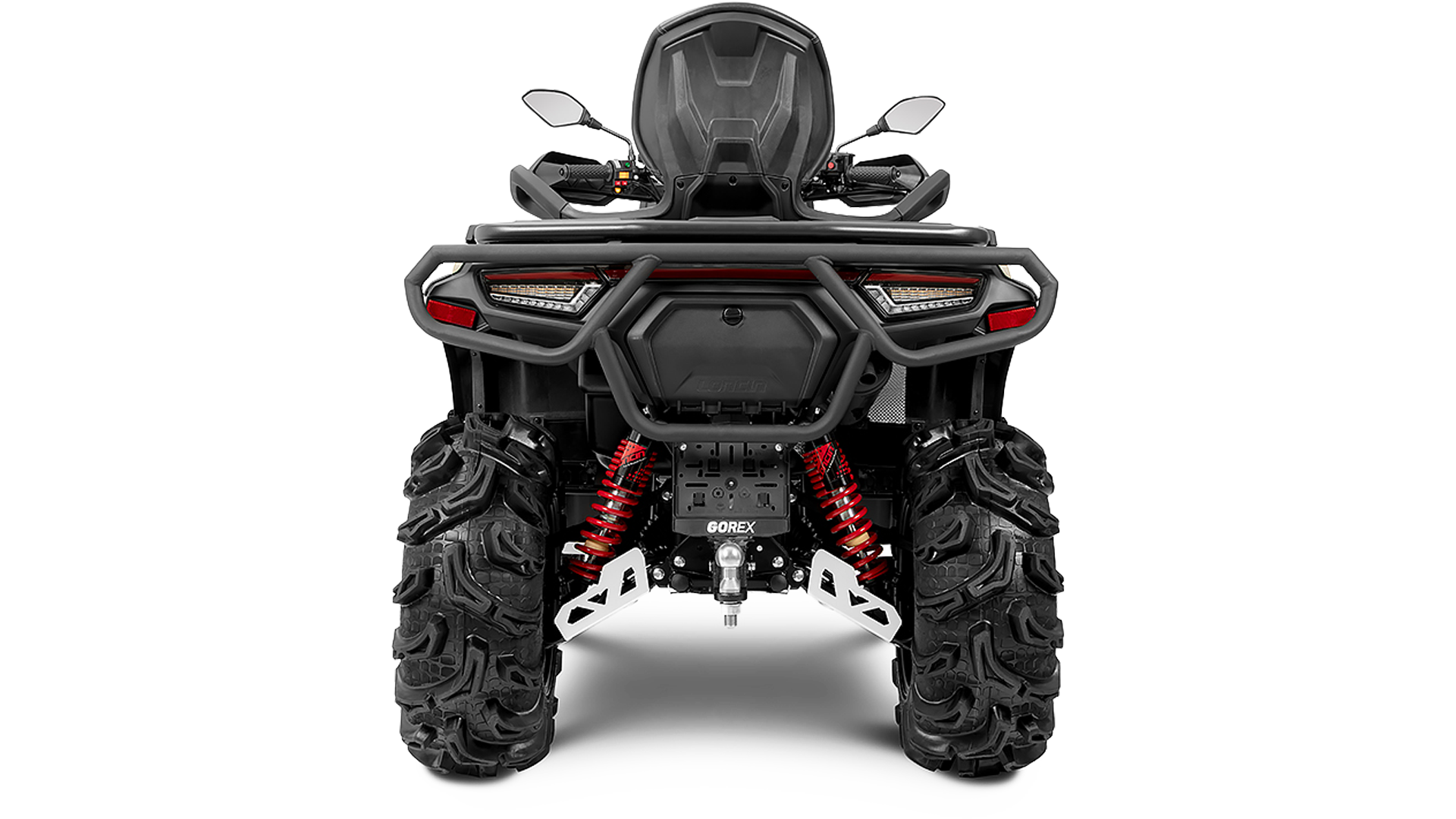

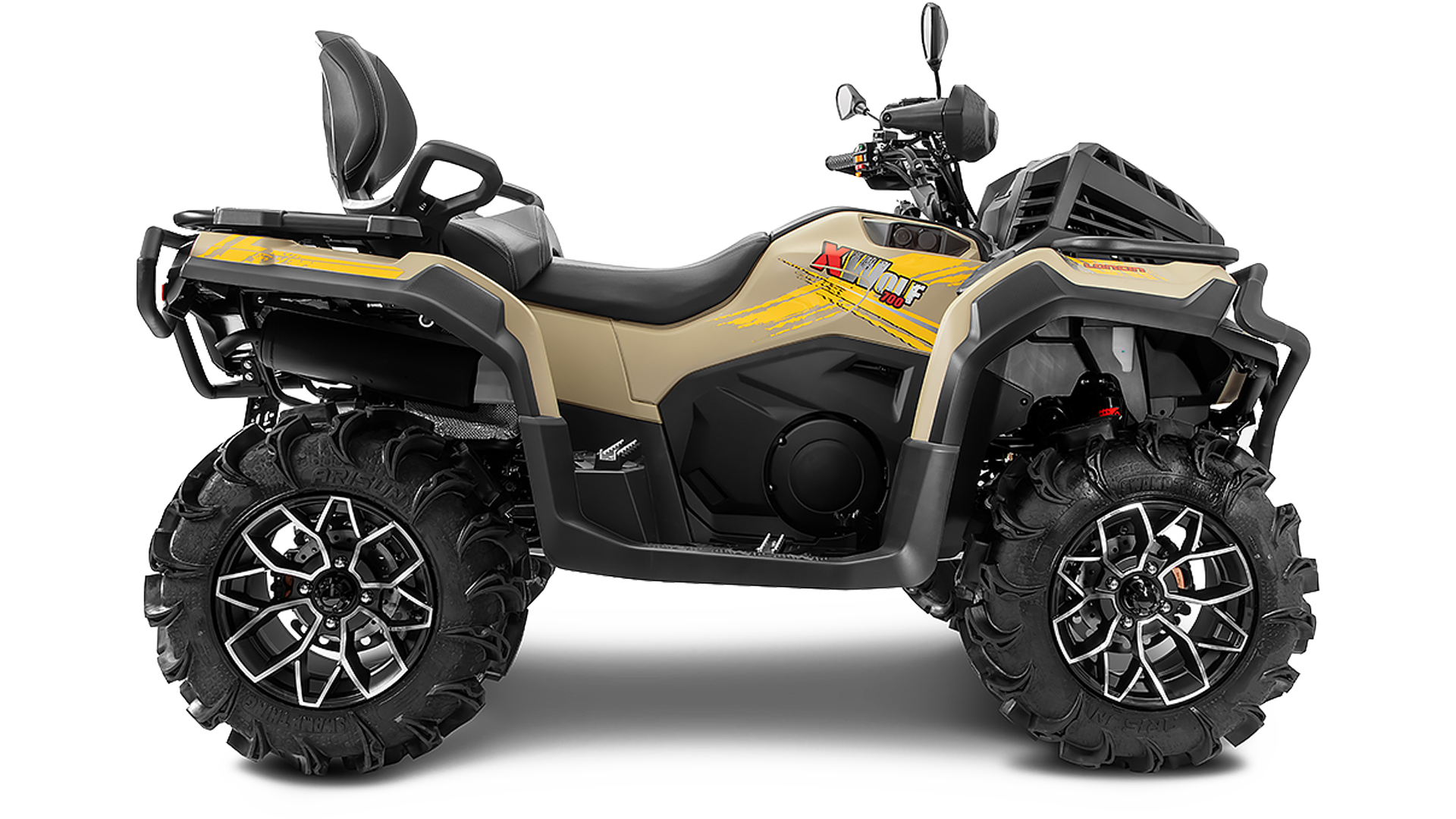

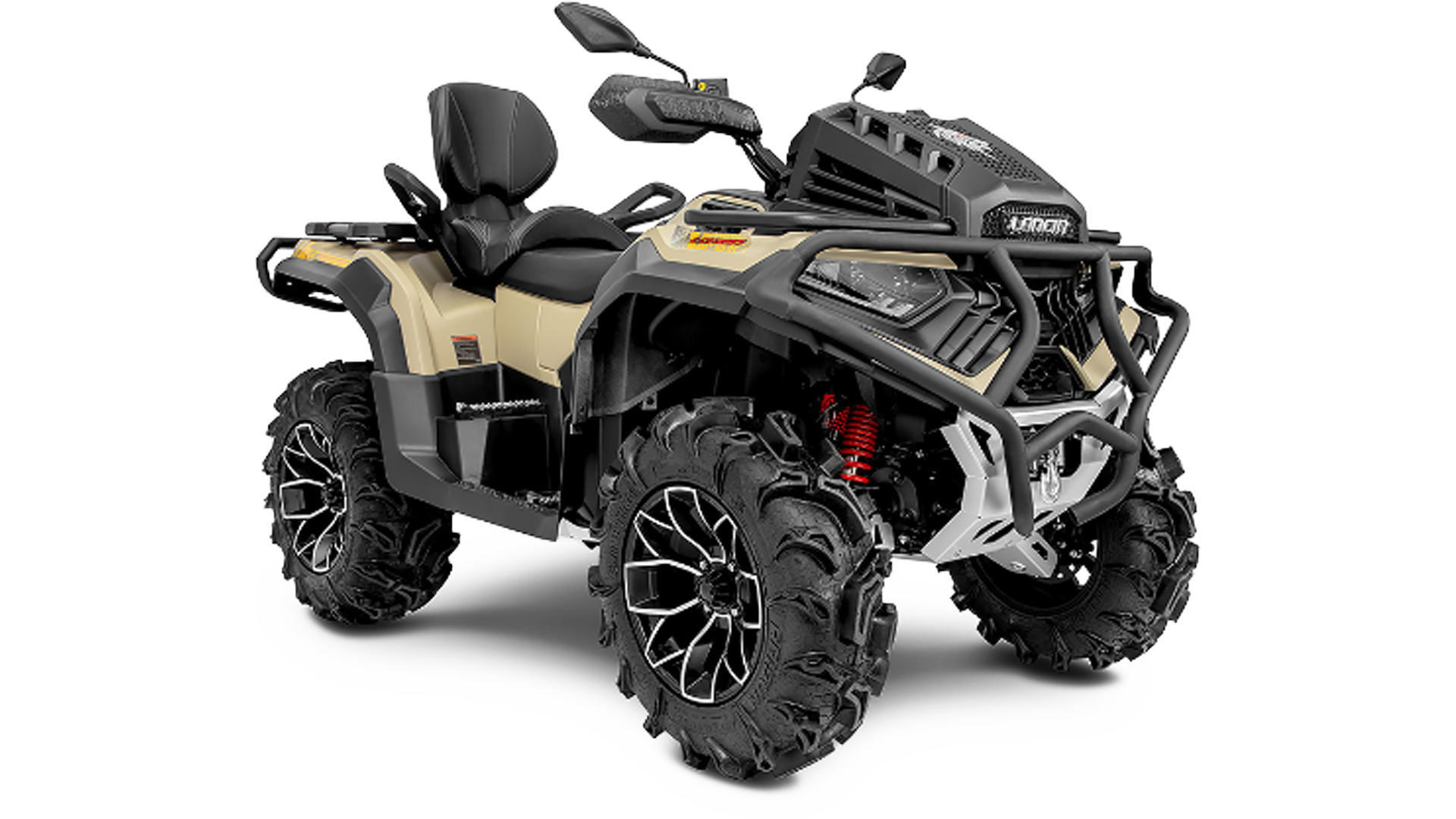

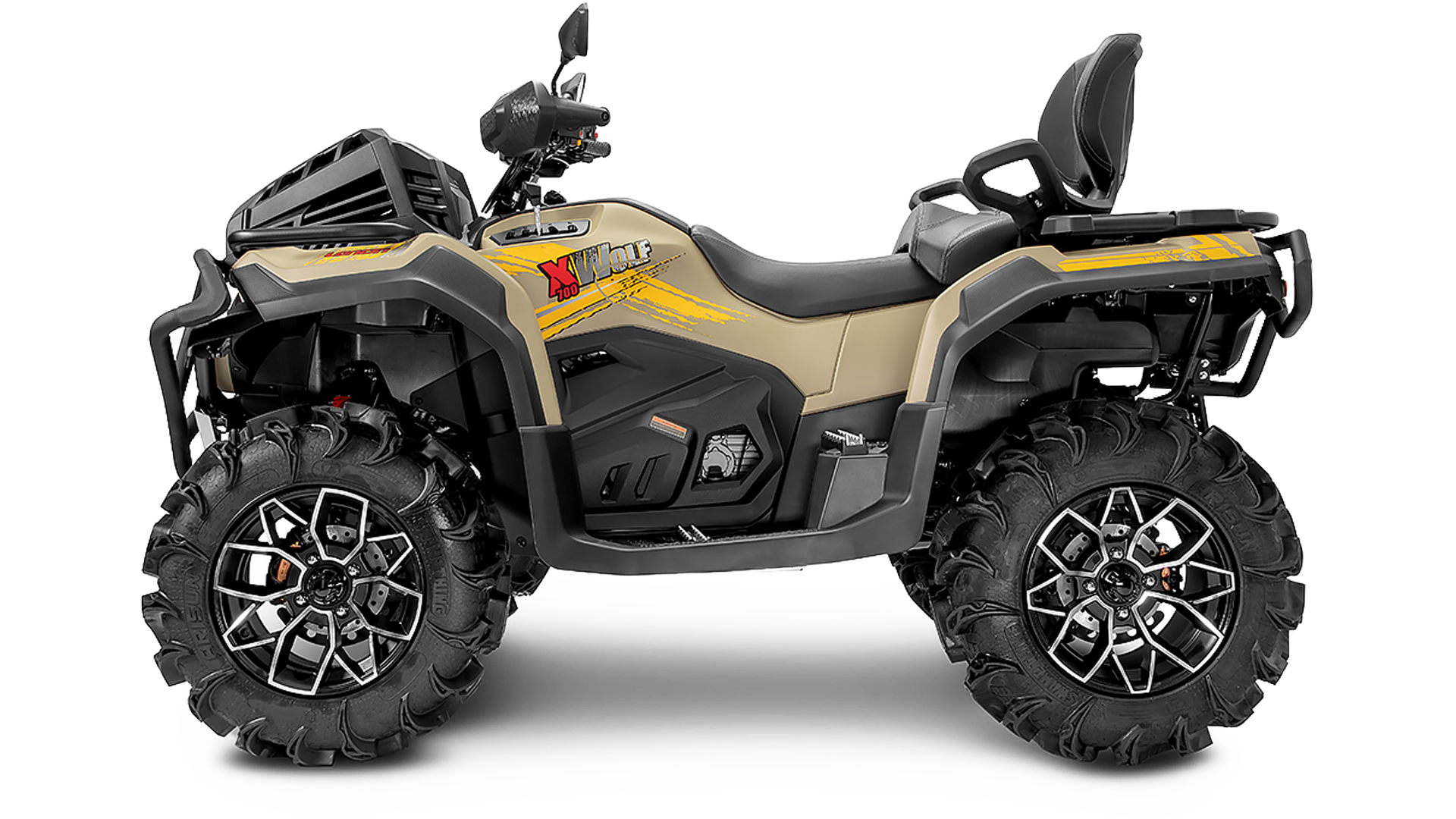

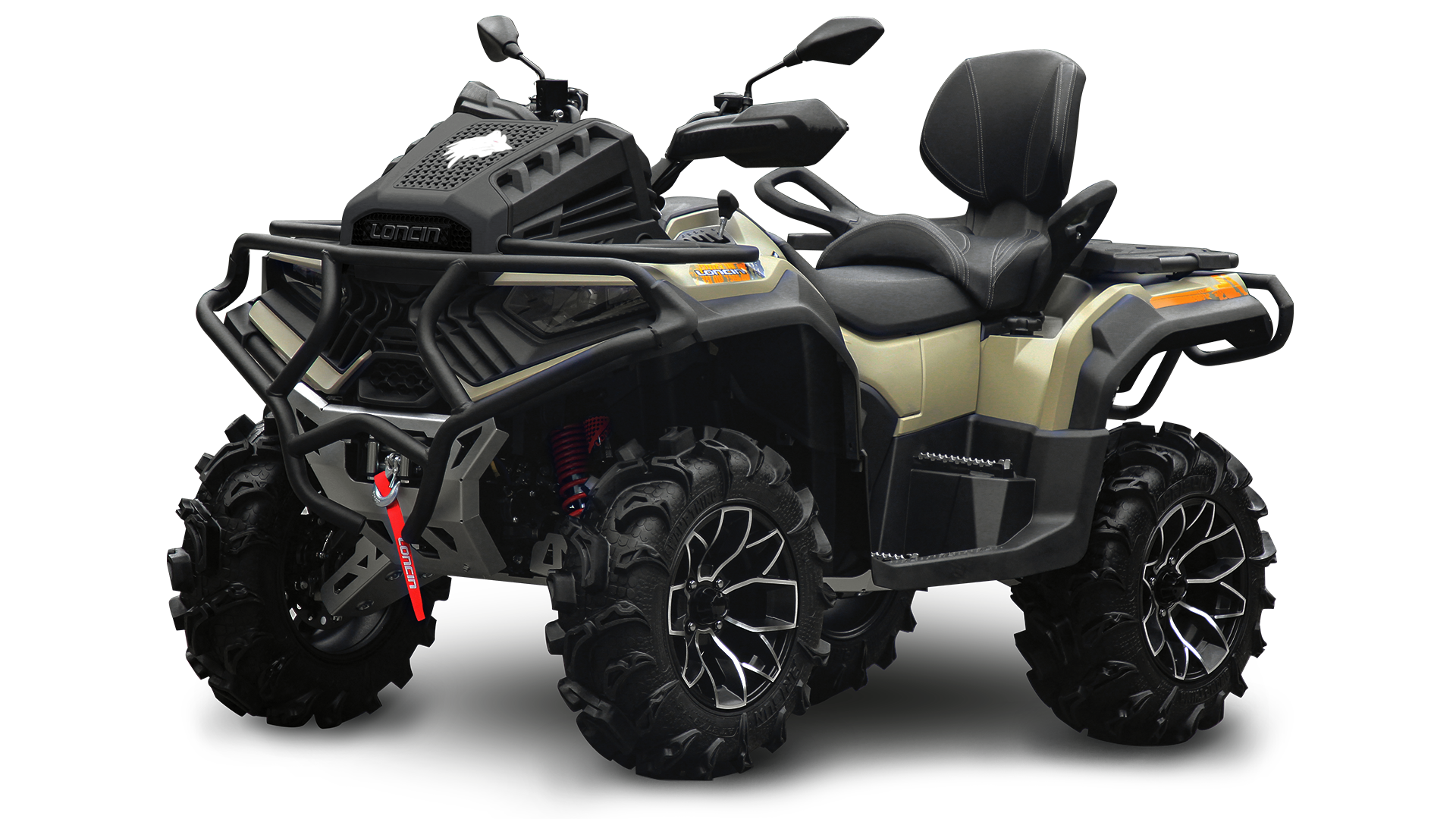

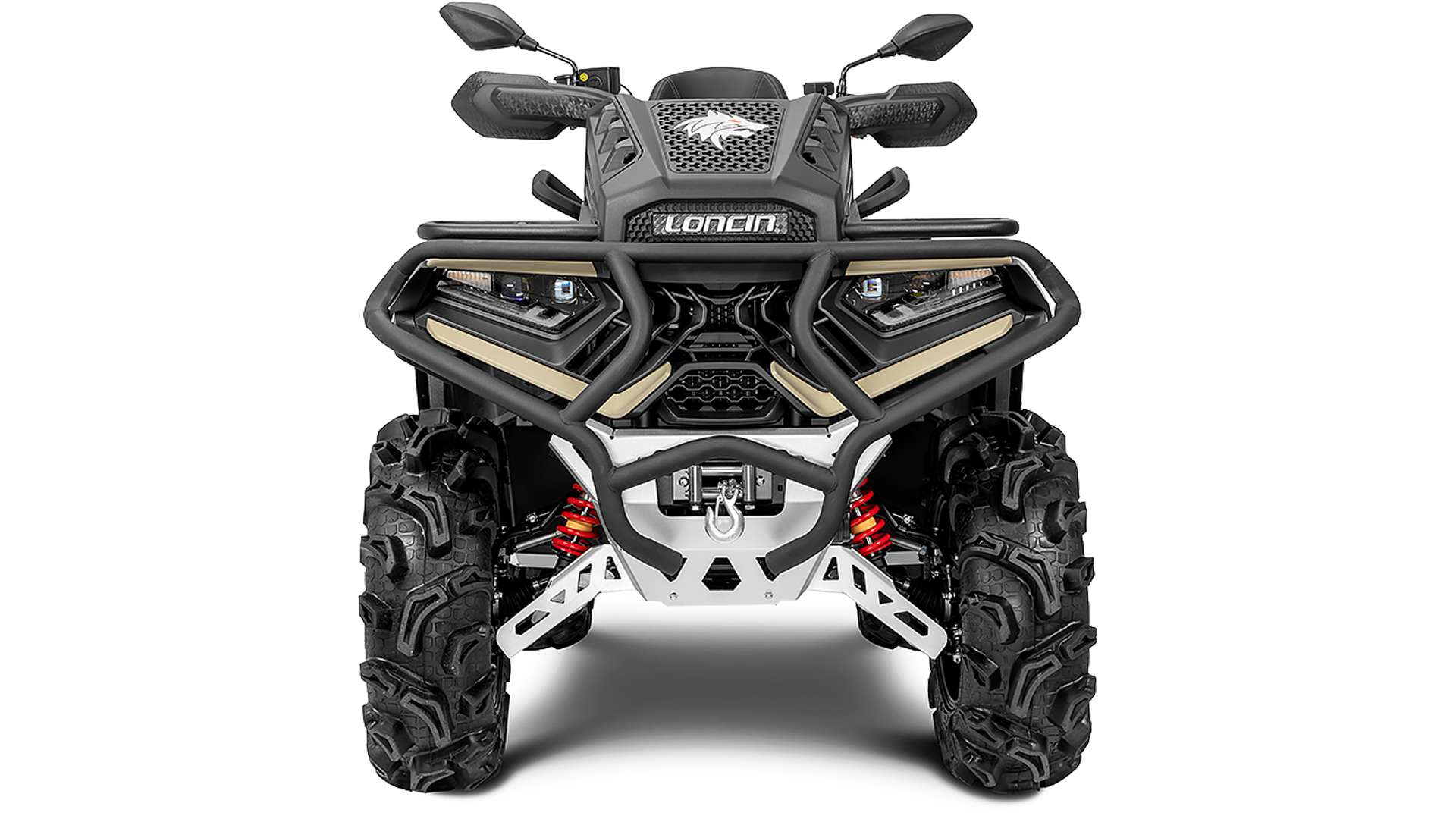

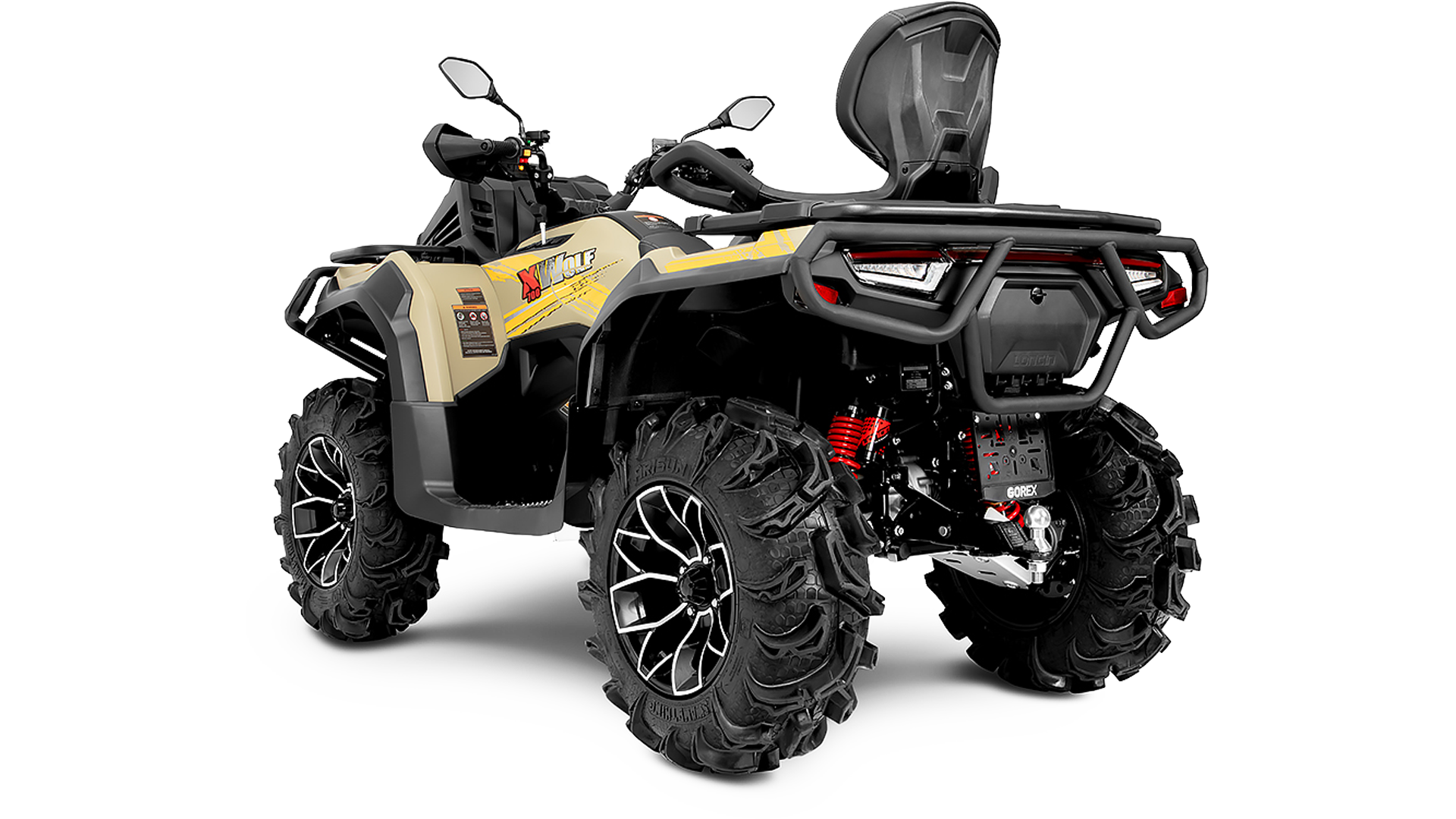

XWolf 700 MUD
When mud swamps the tires and gravel blurs the sight, the LONCIN XWolf 700Mud fearlessly charges ahead, breaking through the mud's grip!
The raised radiator acts like armor, and the separated air ducts showcase power. With better ground clearance and suspension tuning, it cruises over gravel and potholes effortlessly. On bumpy rides, adjustable airbag shocks smooth out harsh vibrations, keeping you in control amid splattering mud.
LONCIN XWolf 700 Mud – the ultimate mud-adventure expert.
MUD
Multi-angle
images
Superior Power
Equipped with a 686cc liquid- and oil-cooled single-cylinder four-valve engine.
BOSCH EFI
Features a BOSCH electronic fuel injection system, delivering high torque output across the entire RPM range.
Superior Suspension
Front and rear arched double A-arm suspension.
4 wheel driving by 3 modes
4 wheel driving by 3 modes, fast shift along 2WD, 4WD and 4WD locking-up, provides more excellent experience for cross-country driving.
Agile Steering
Standard electronic power steering (EPS).

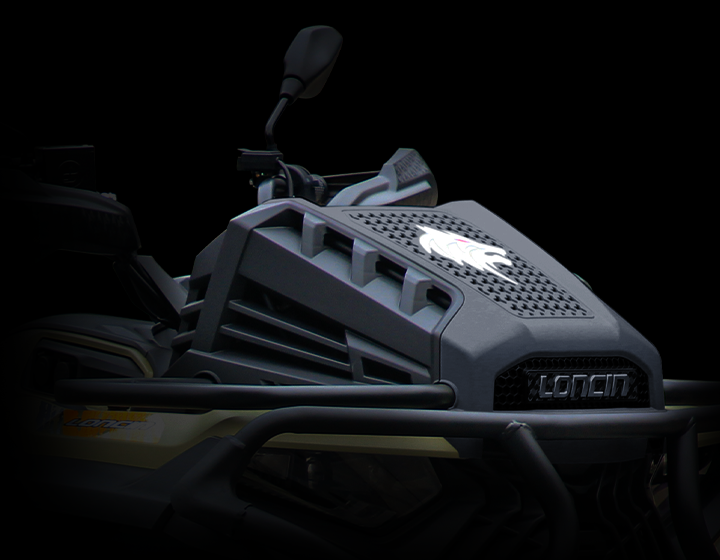

Efficient Cooling
Adopts an overhead cooling architecture, elevating the radiator based on the new front grille design to optimize aerodynamics and significantly enhance cooling efficiency.

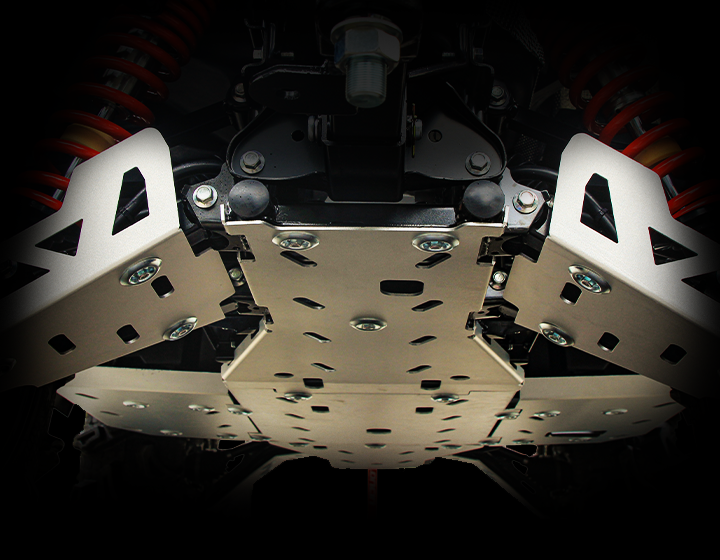

Safety Protection
Equipped with underbody armor, footrest supports, and front and rear external bumpers.
Digital and color speedometer of multi-function
Simple and clear design for speedometer display page, know everything about vehicle easily while making more comfortable driving.
Specifications
| Engine specification | Single cylinder、SOHC、4 valves、oil & liquid-cooled |
| Displacement | 686 |
| Bore x Stroke | 102 × 84mm |
| Compression ratio | 9.7:1 |
| Maximal power | 35kW/5500rpm |
| Maximal torque | 66N·m/4500rpm |
| Fuel supply | BOSCH ® EFI |
| Speed transmission | CVT, P/R/N/H/L |
| LxWxH | 2305×1230×1460mm |
| Wheelbase | 1480mm |
| Seat height | - |
| Minimum ground clearance | 305mm |
| Minimum turning radius | 3.75m |
| Dry weight | 445kg |
| Maximal loading | - |
| Fuel tank capacity | 25L |
| Drive mode | 2WD/4WD/4WD Locking-up |
| Brake mode | Disc brake for 4 wheels |
| Suspension mode | Front：Double A-shaped arm of arch Rear：Double A-shaped arm |
| Front shock absorber | Piggyback gas shock absorbers |
| Rear shock absorber | Piggyback gas shock absorbers |
| Wheel hub specification | Aluminium wheel of 14 inches |
| Front tire | 27×9-14 |
| Rear tire | 27×11-14 |
