XWolf1000
XWolf 1000
LONCIN XWolf 1000 - High performance ahead, here would be the final winner wherever open air is. Naturally dares to act, whose excellent power equipment makes more exciting adventure a certainty. When ability was enough to dominate all, even rampage is a word that stands for good. Travelling over land and water, even running with load on rough roads, all came naturally easy with LONCIN XWolf 1000. Match up with good - looking in luxury, it easily takes the major role even in wild - sight. Perfect balance covers working and leisure, breaks through barriers blocking out work from life, gets sheer sense of outdoors adventure for you only.
1000

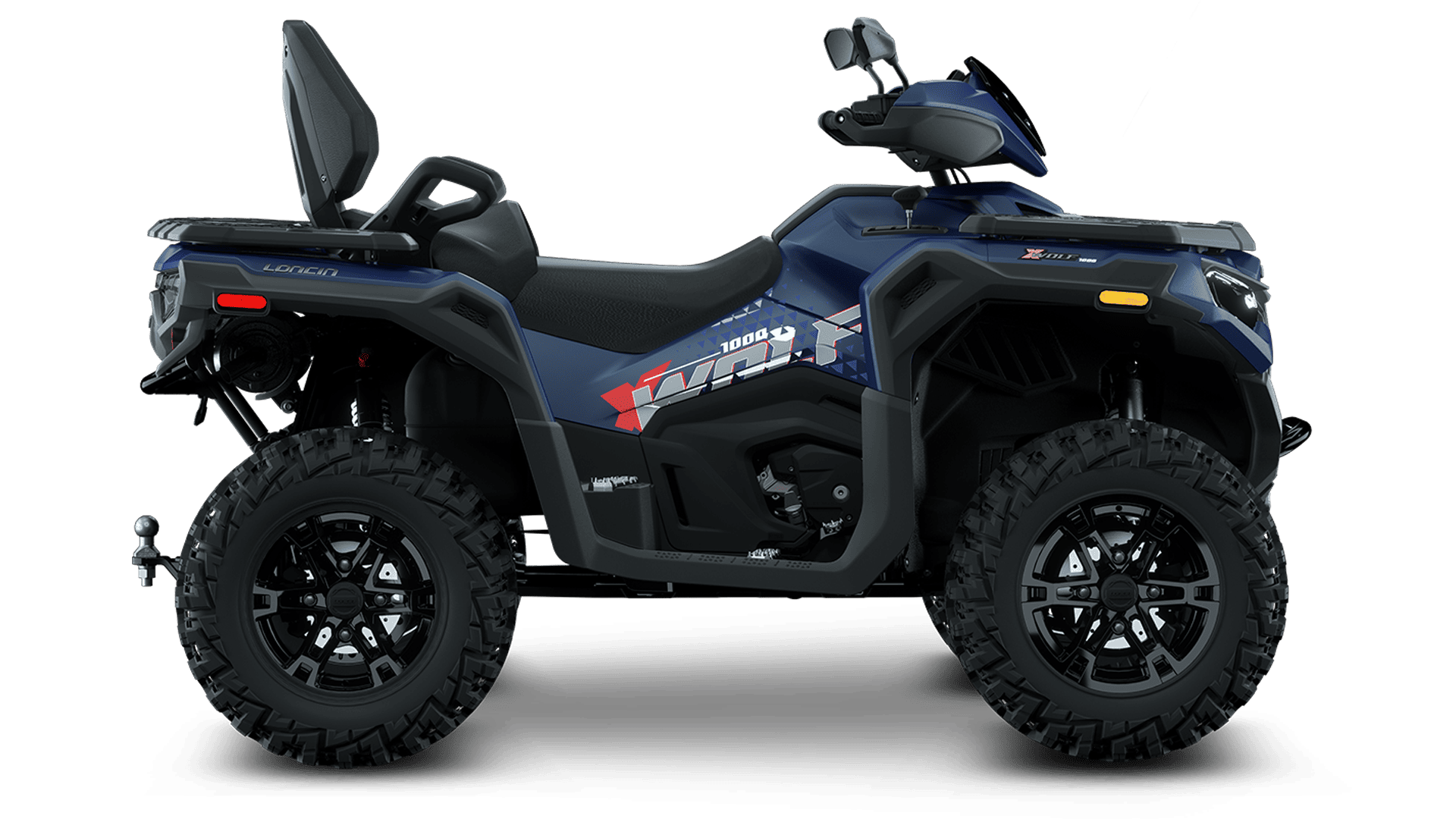

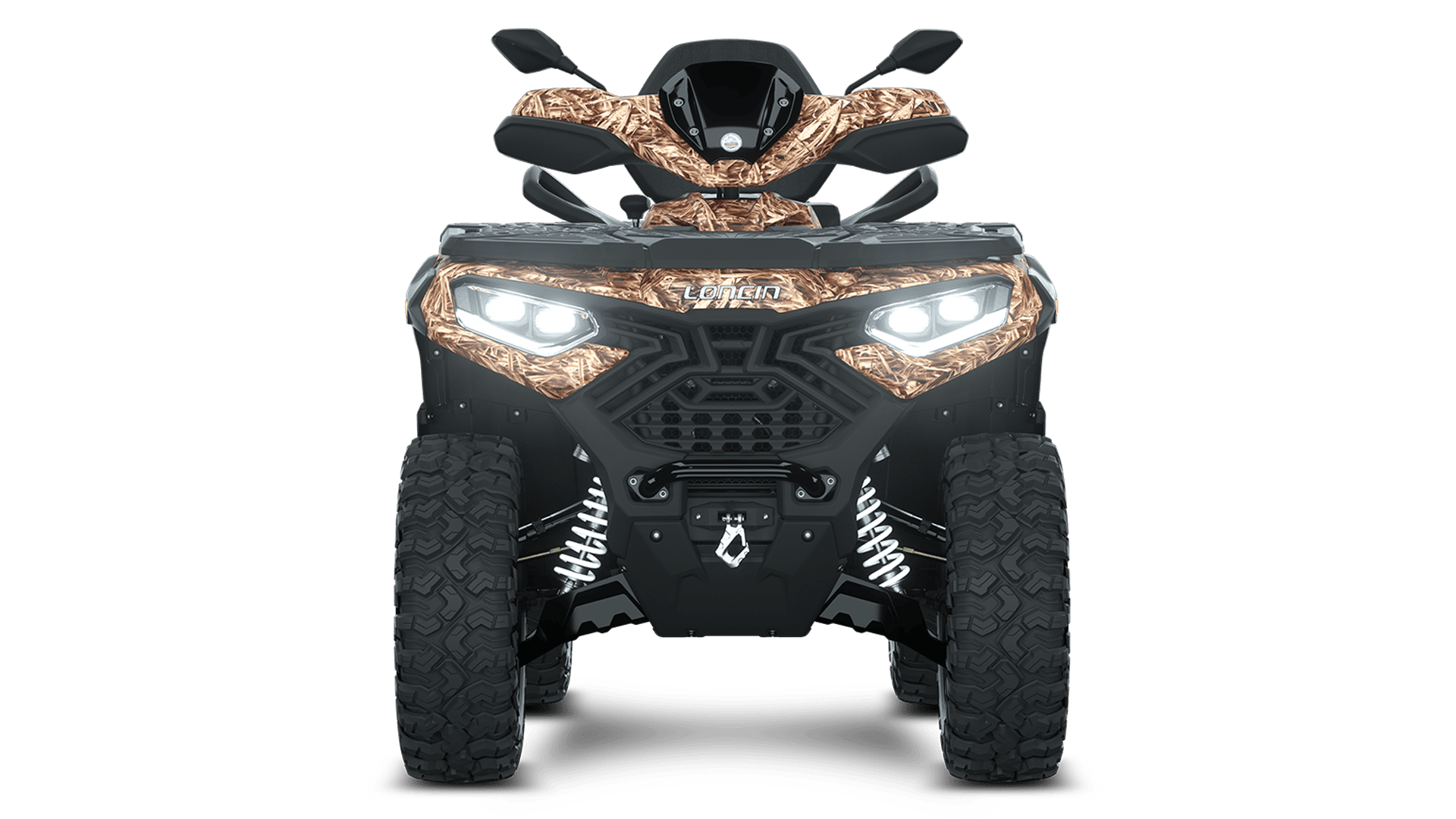

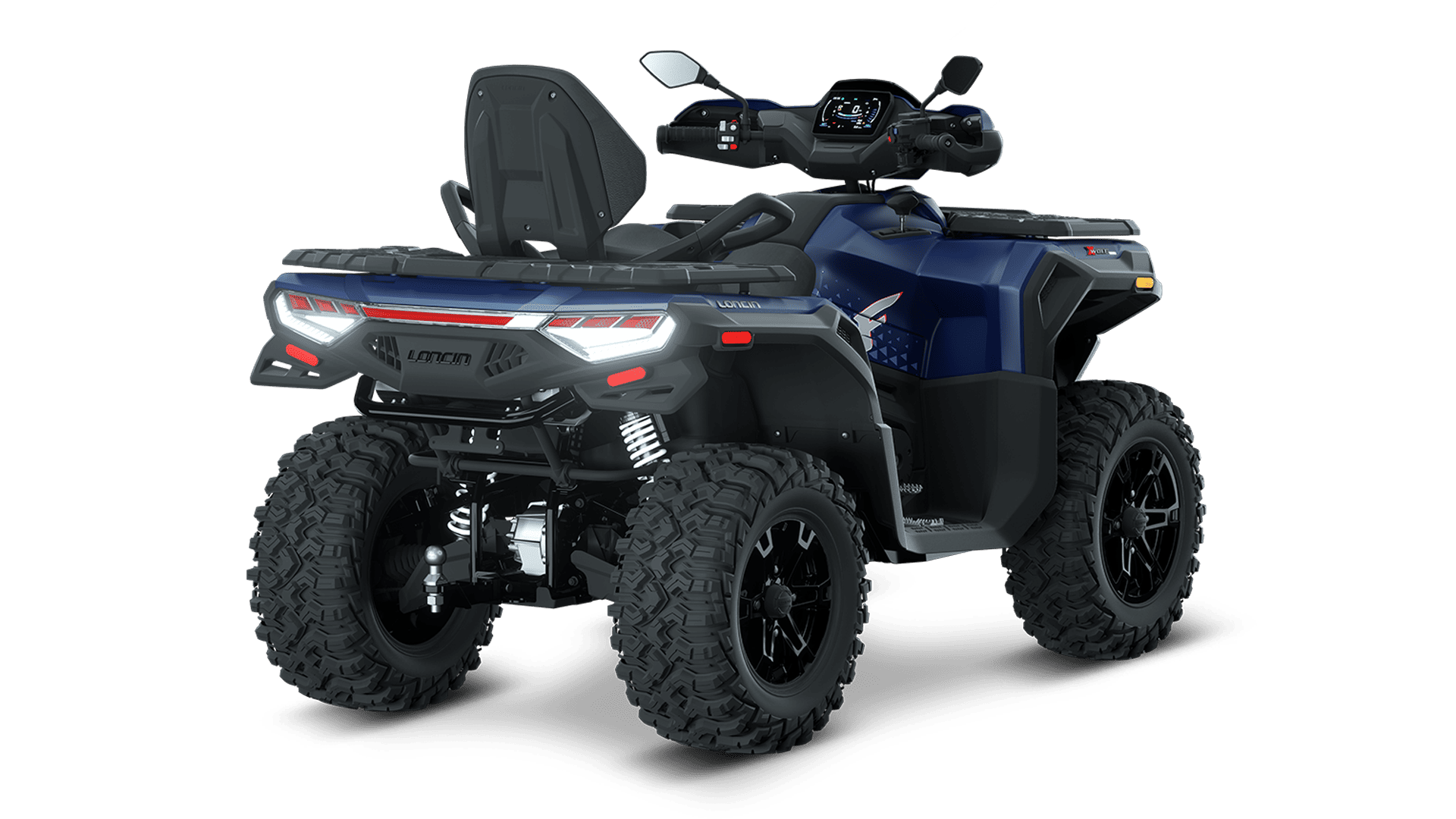

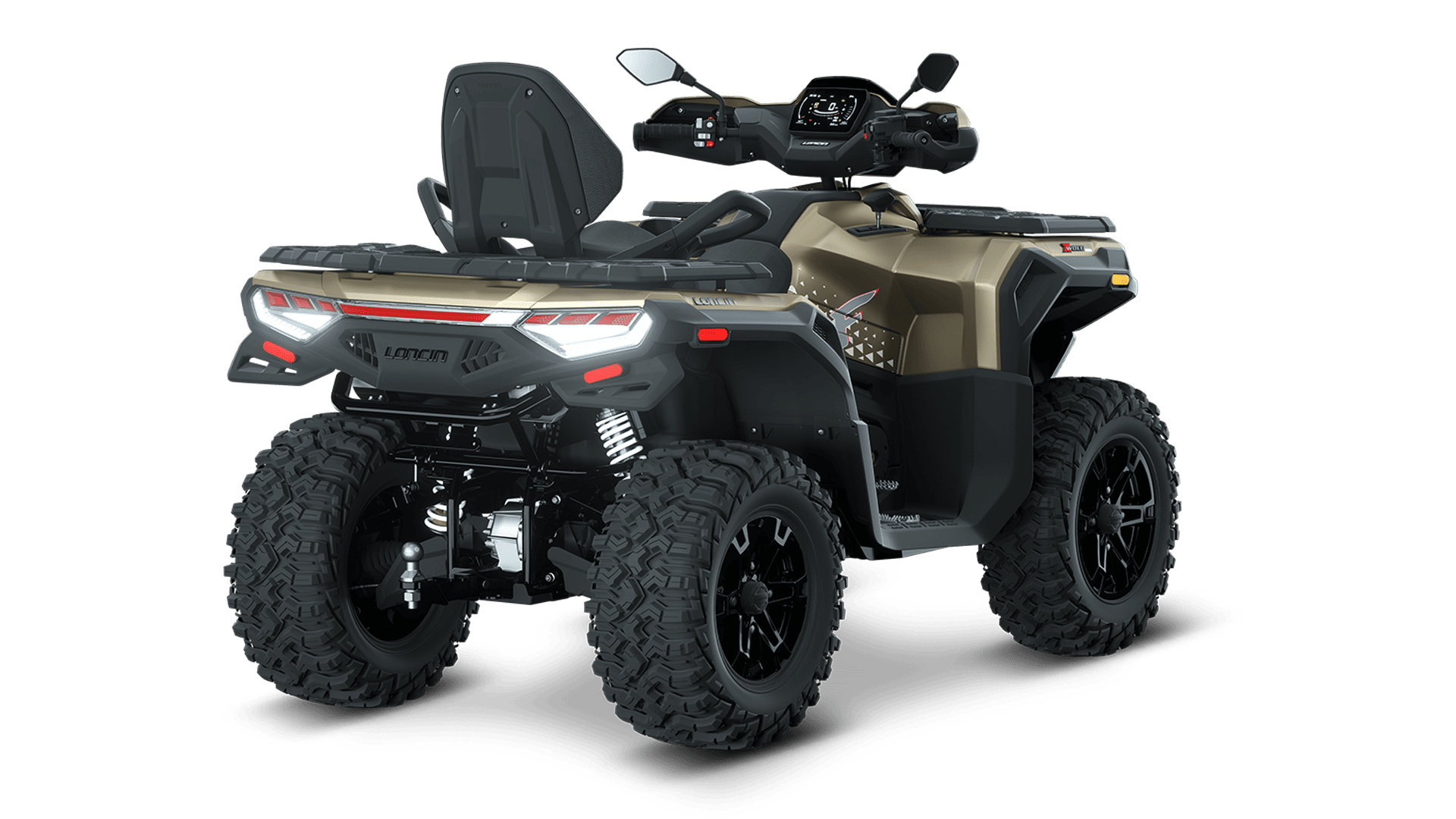

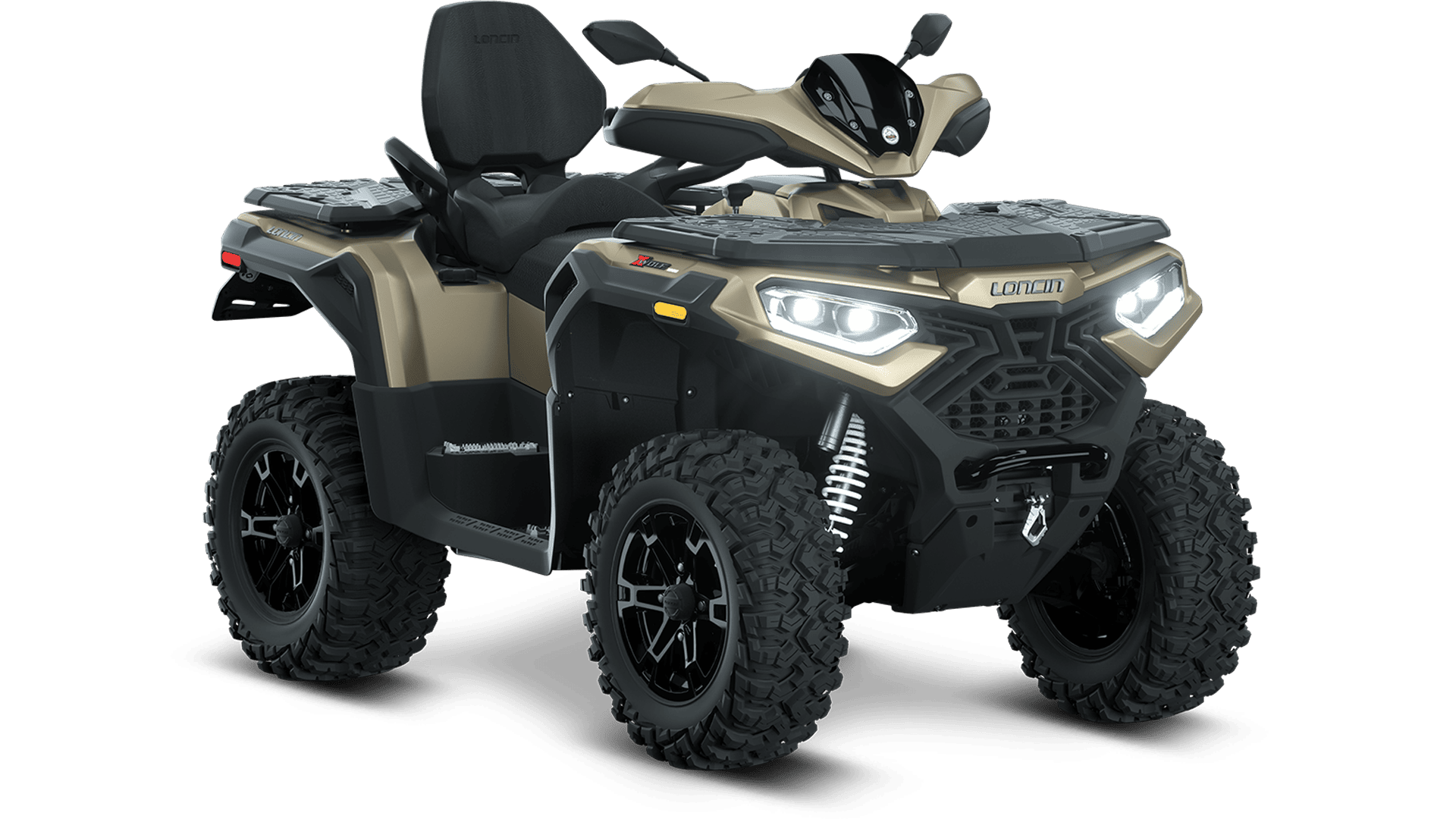

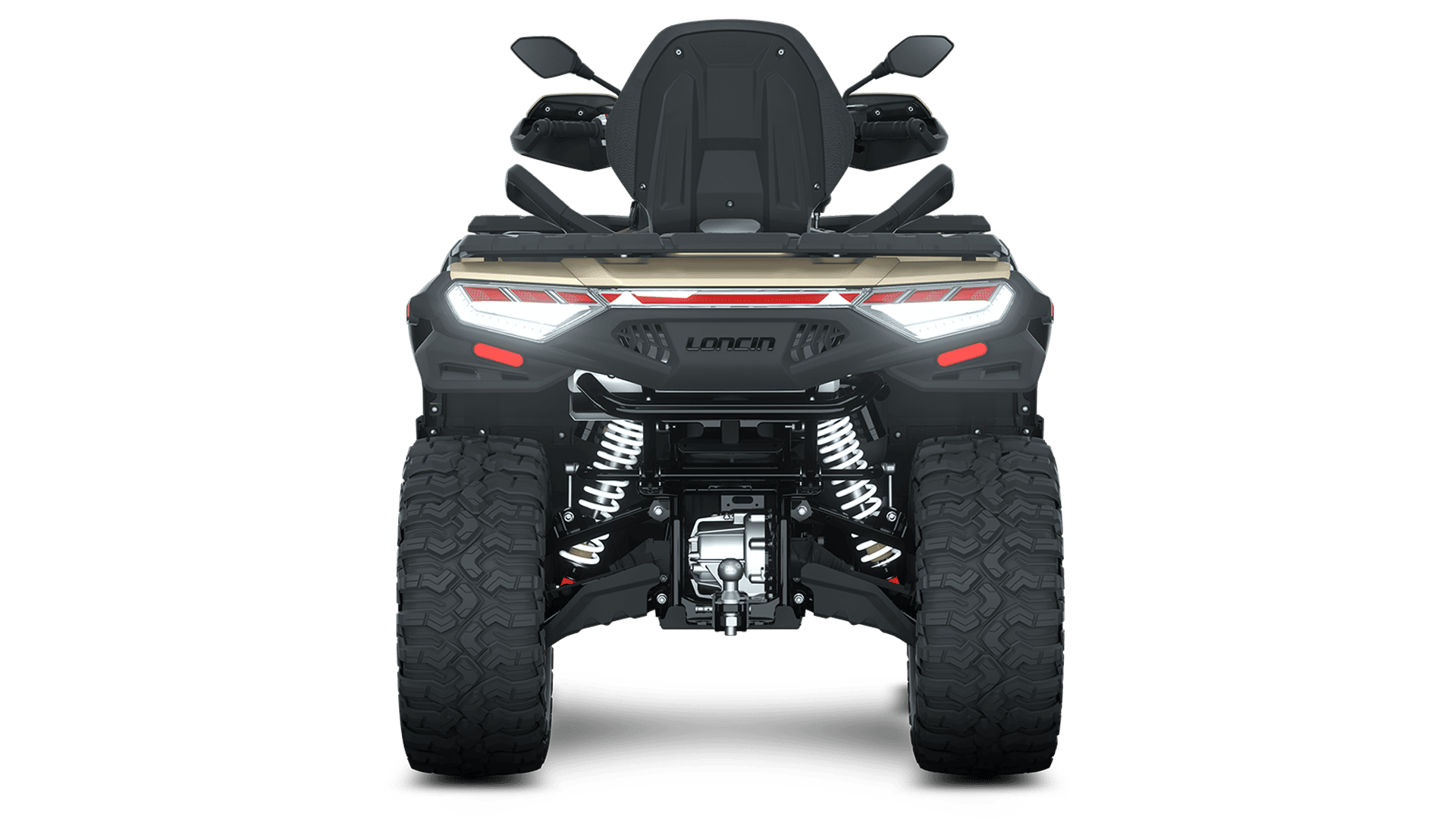

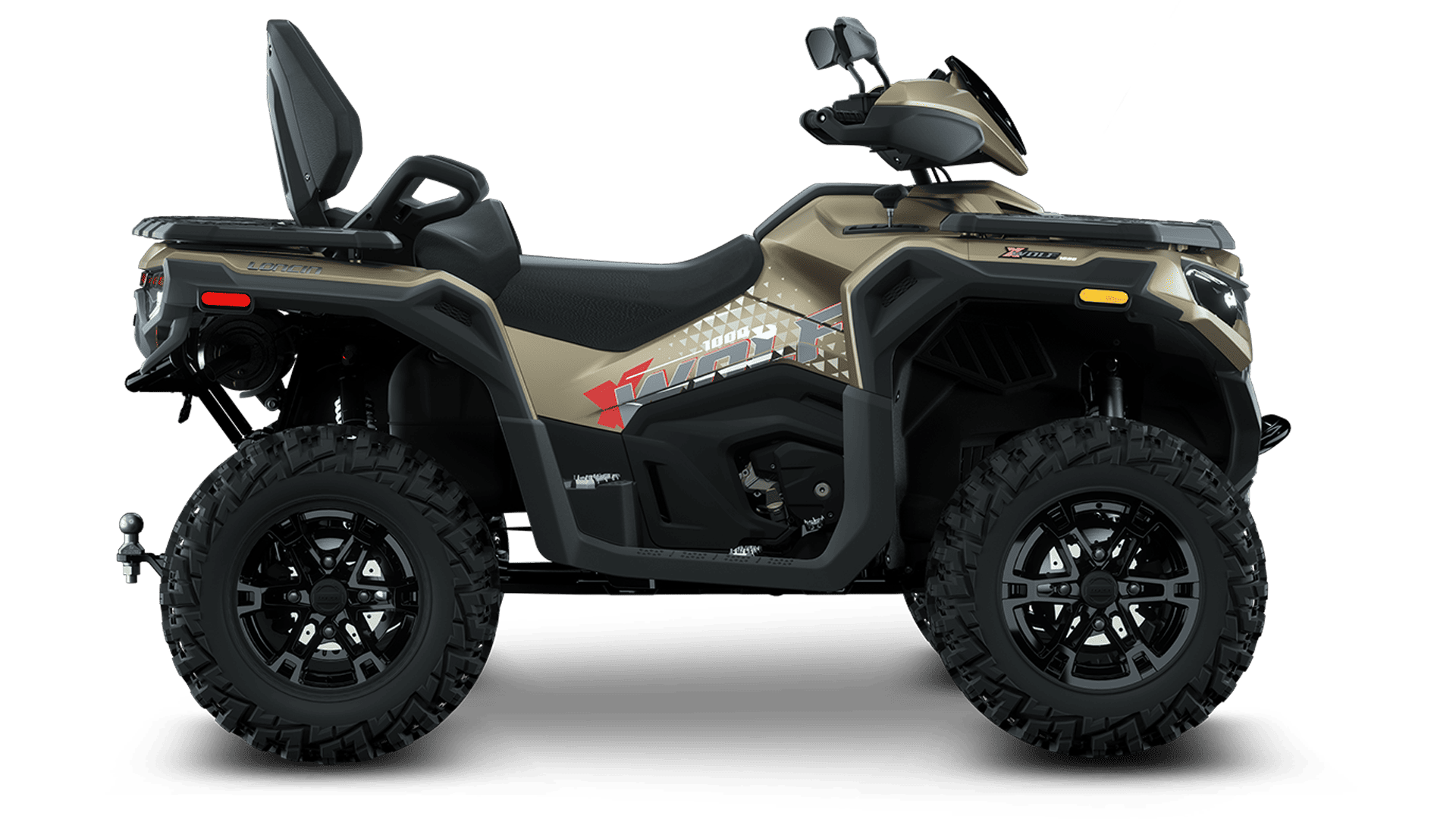

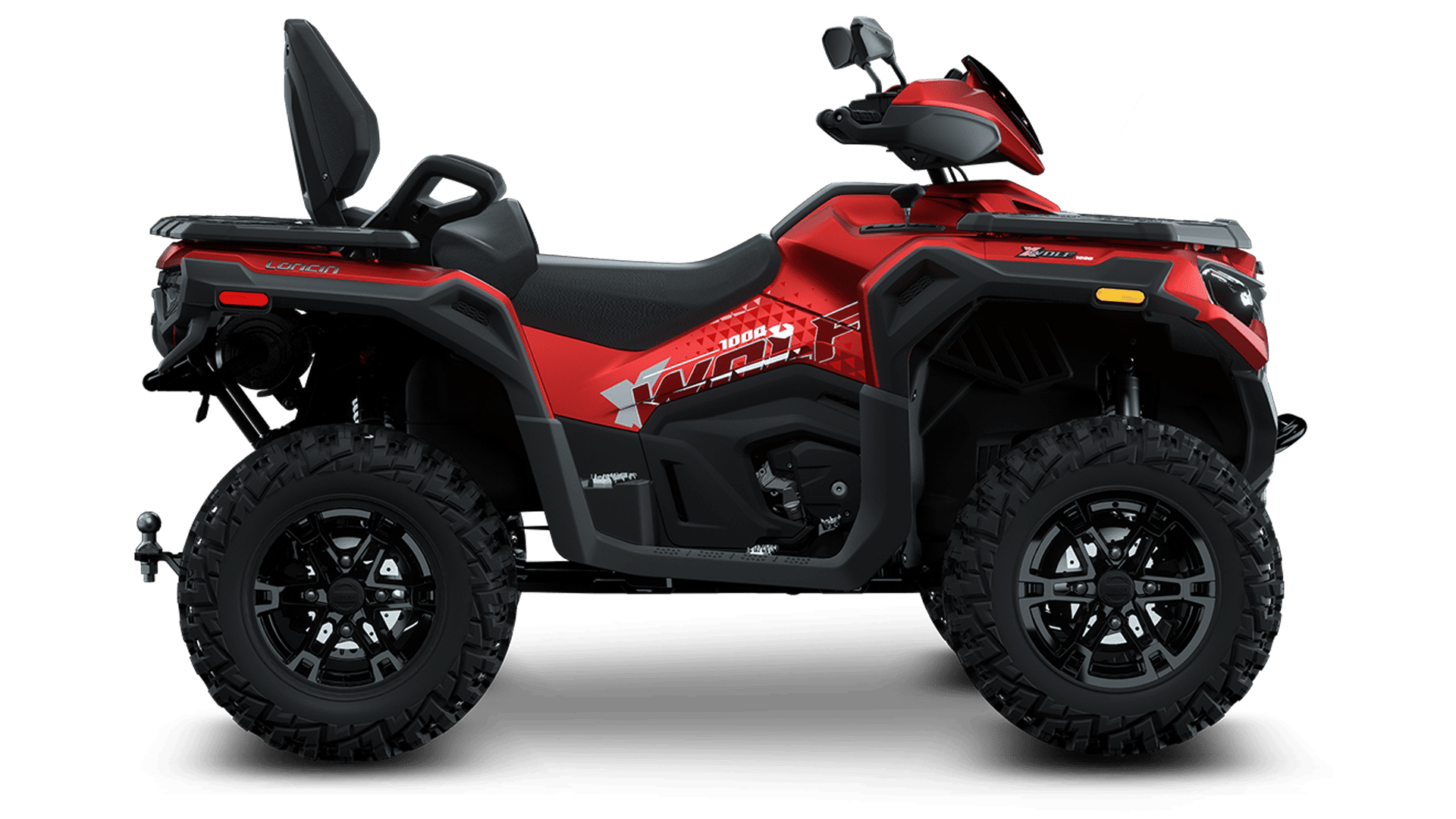

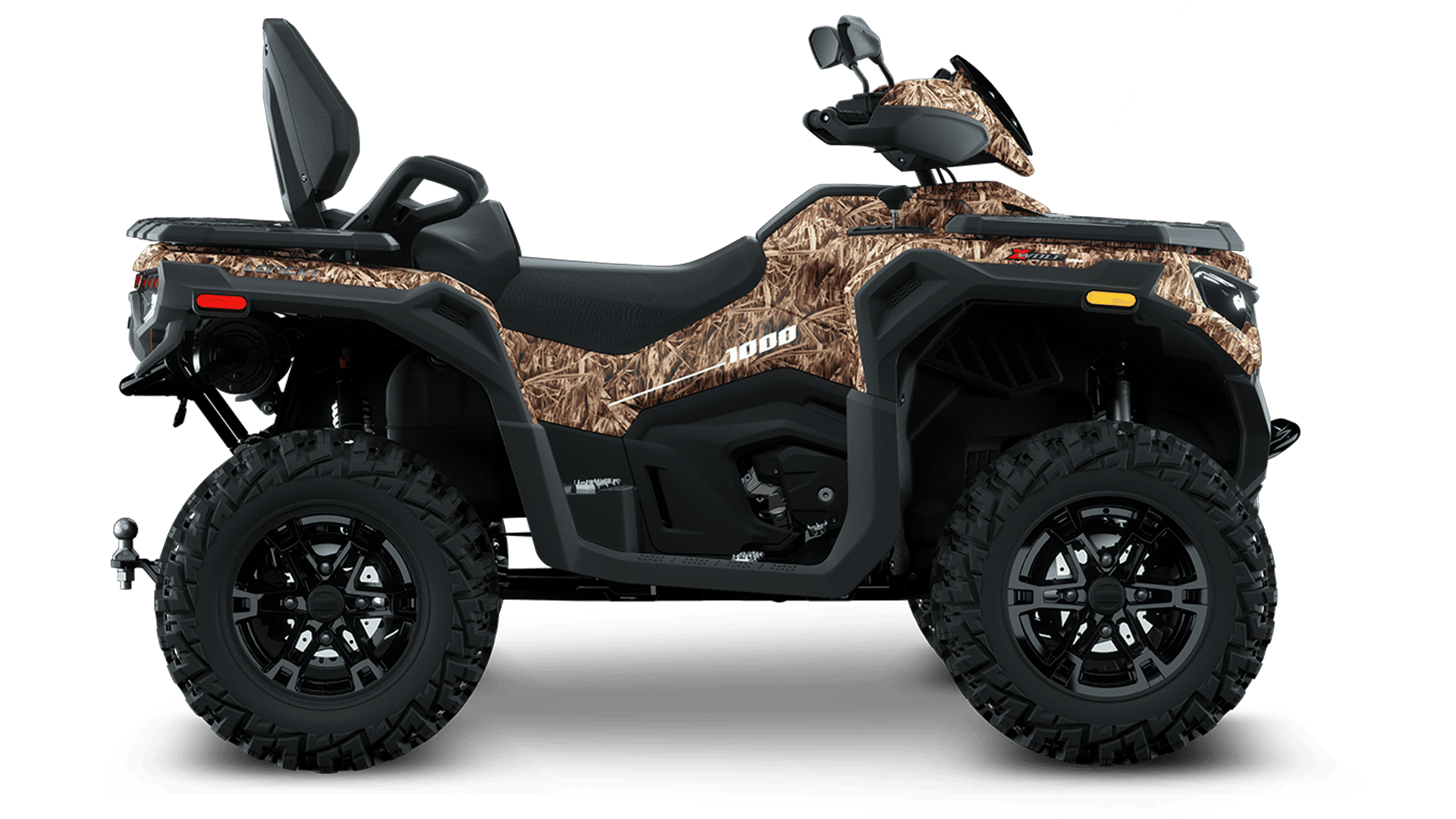

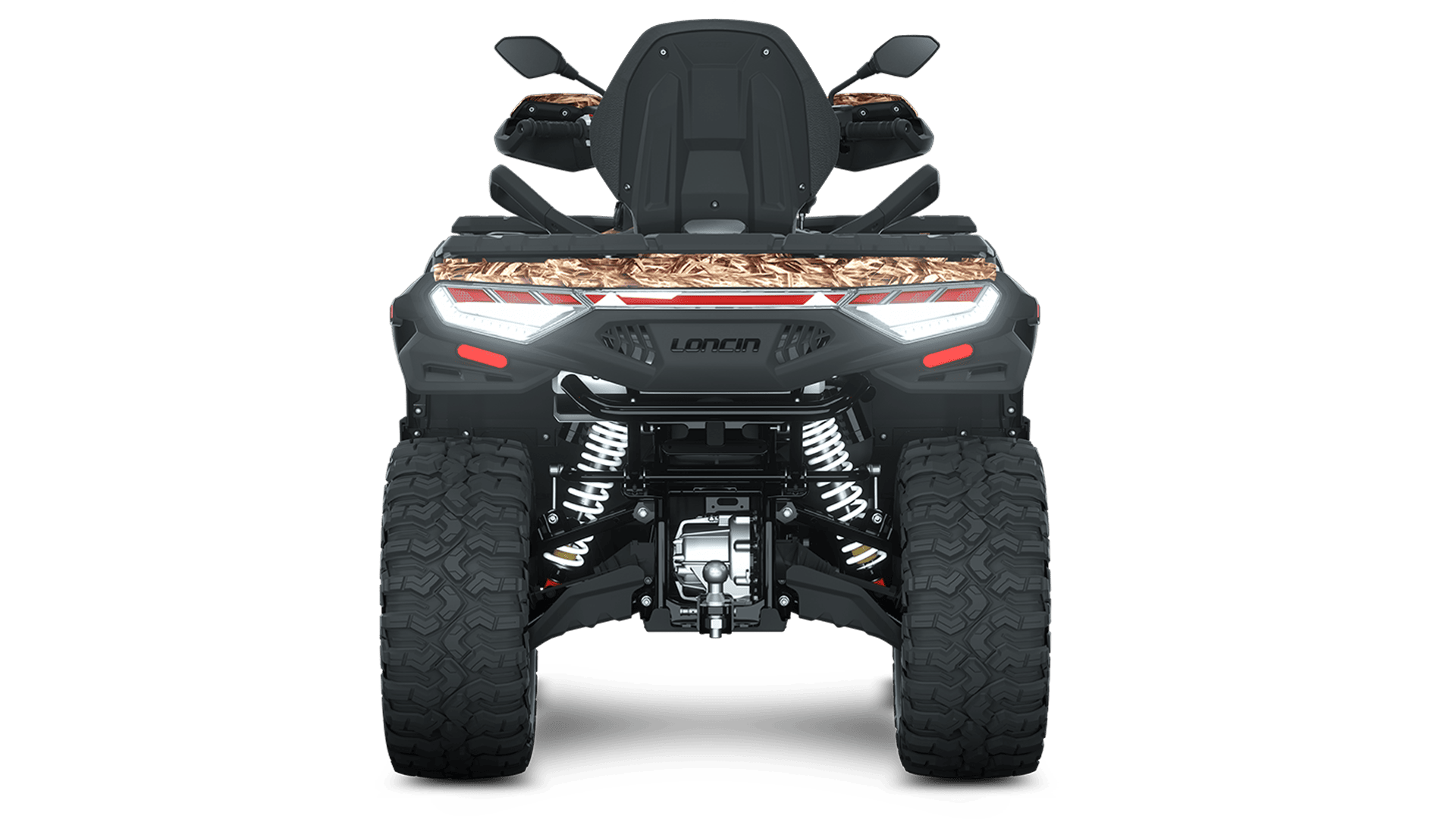

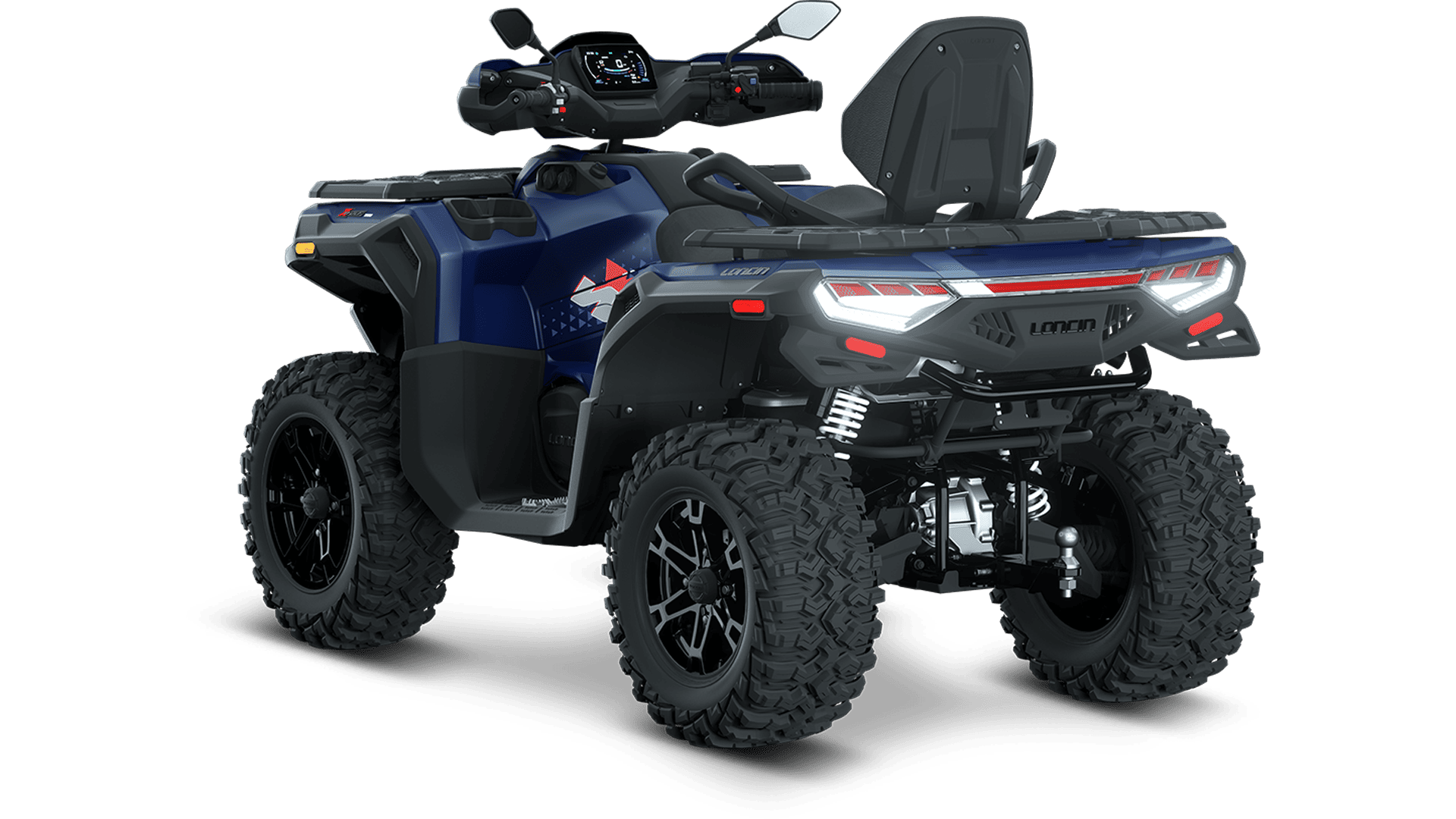

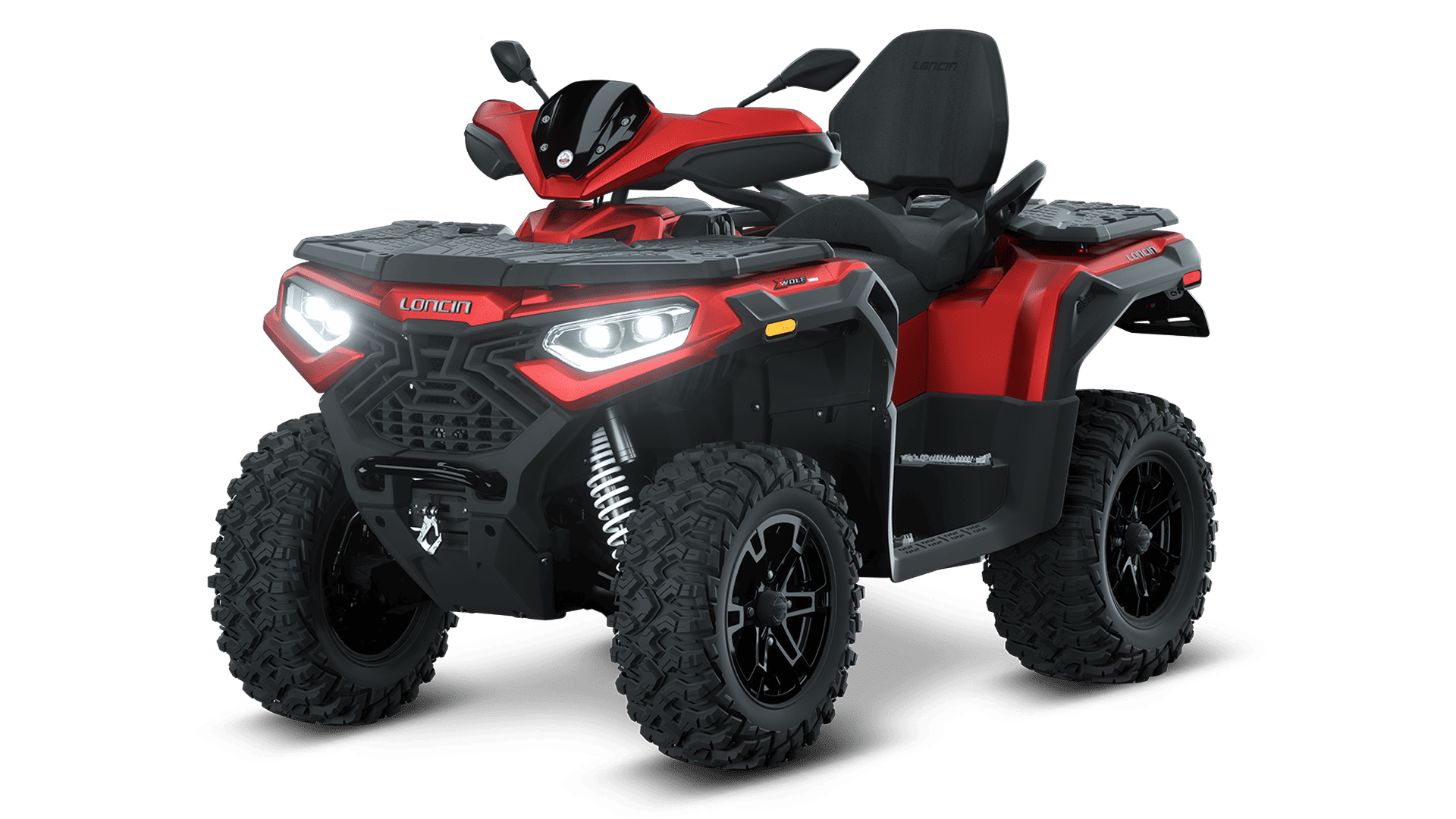

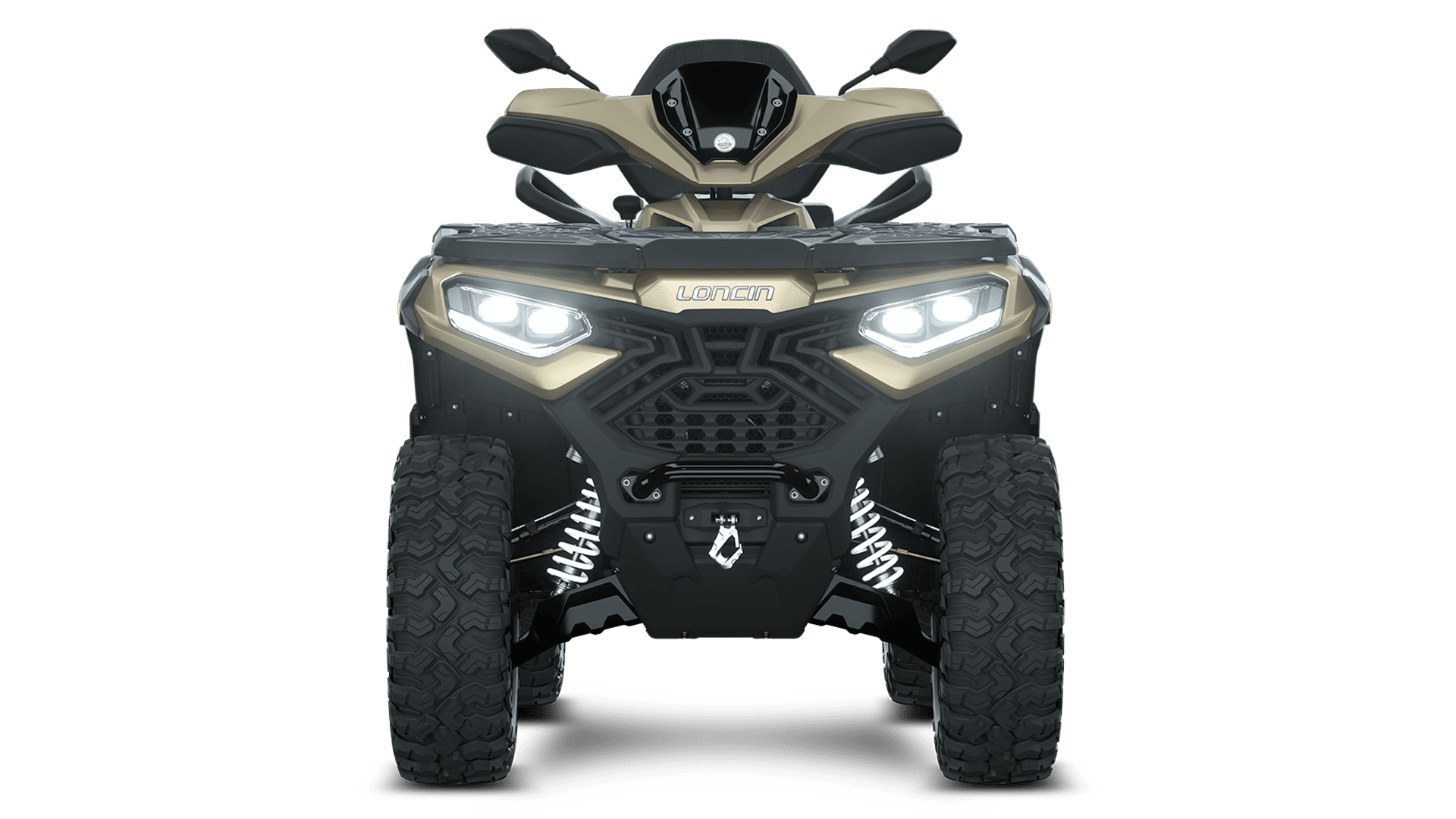

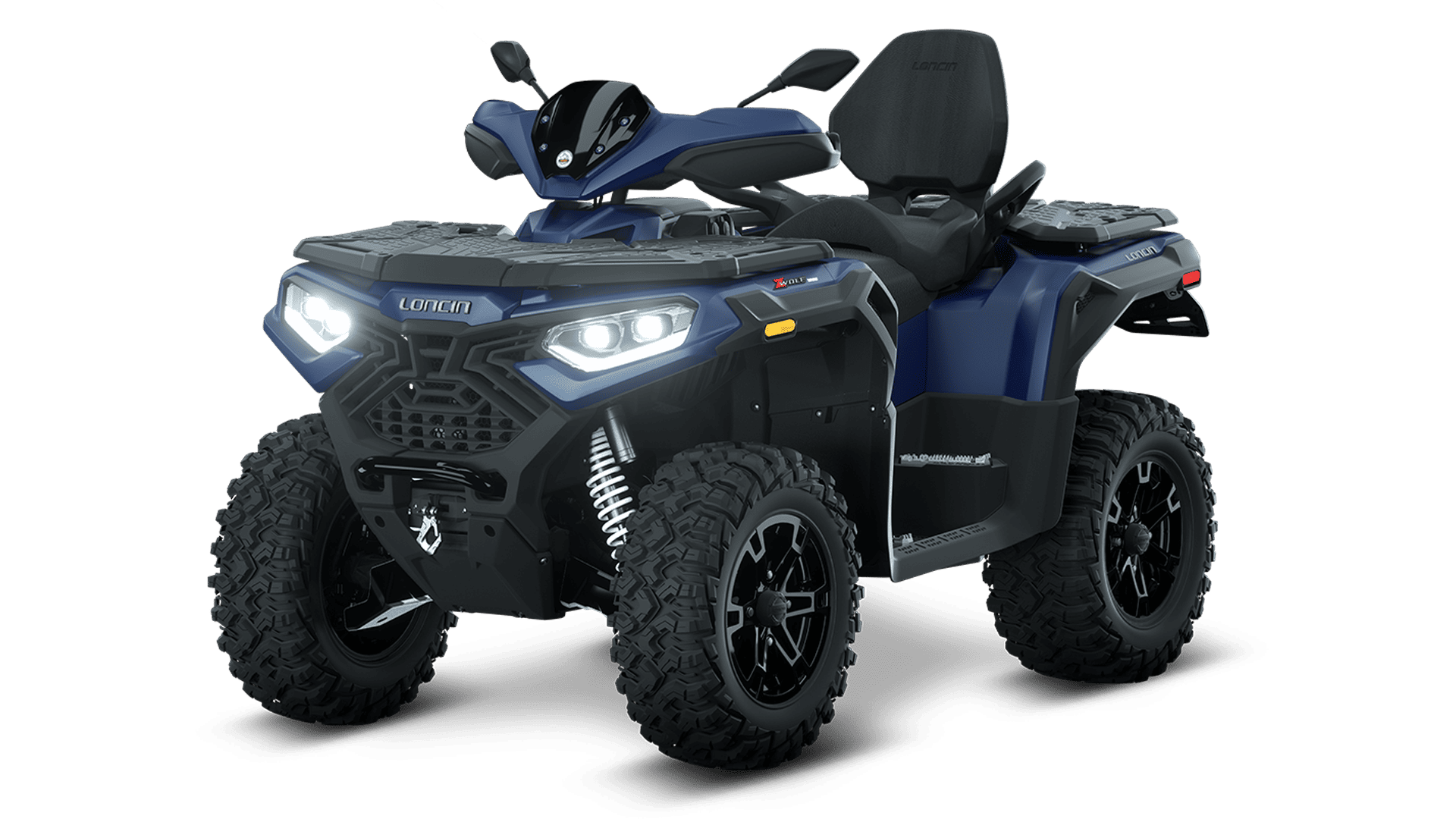

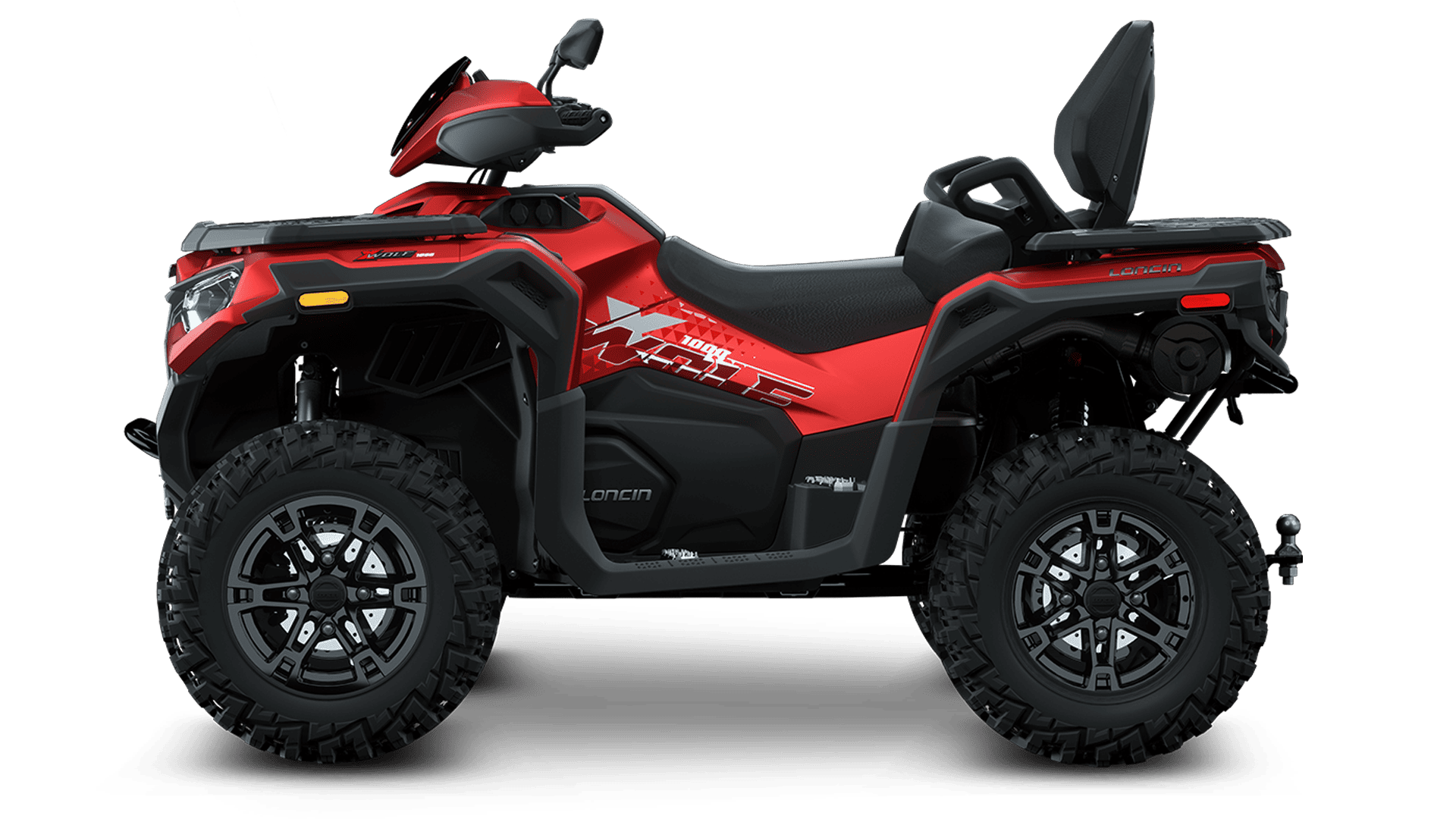

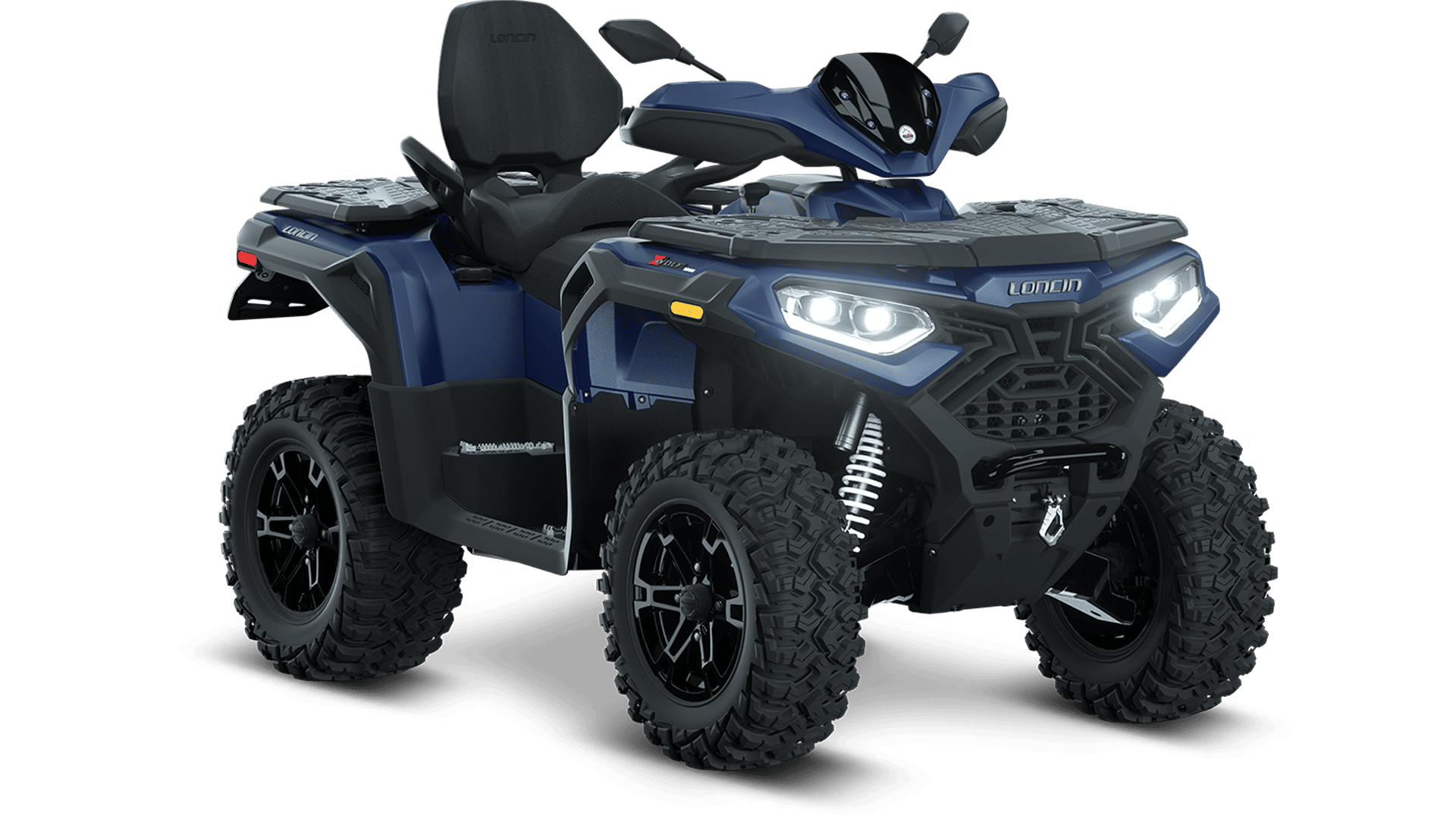

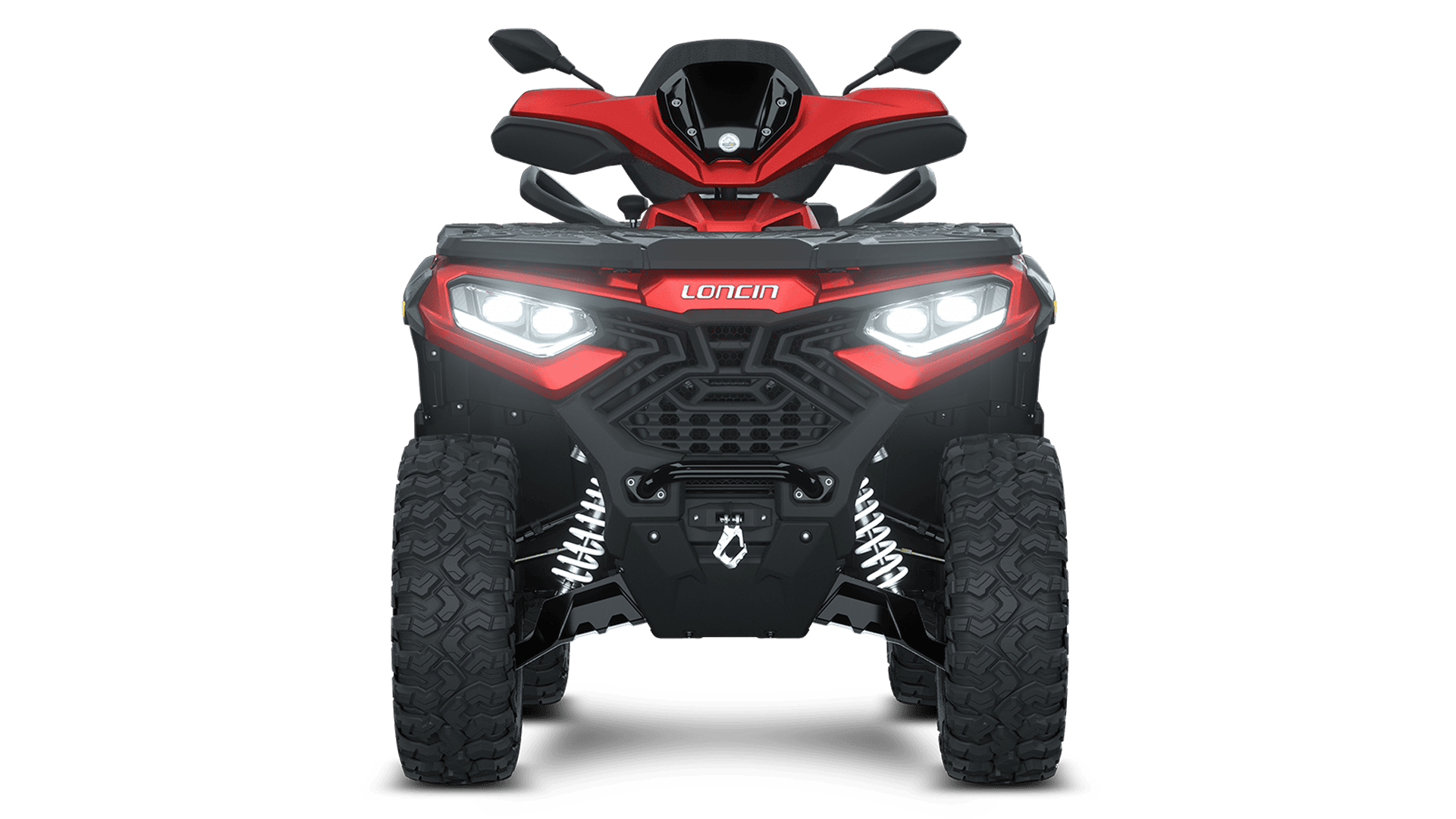

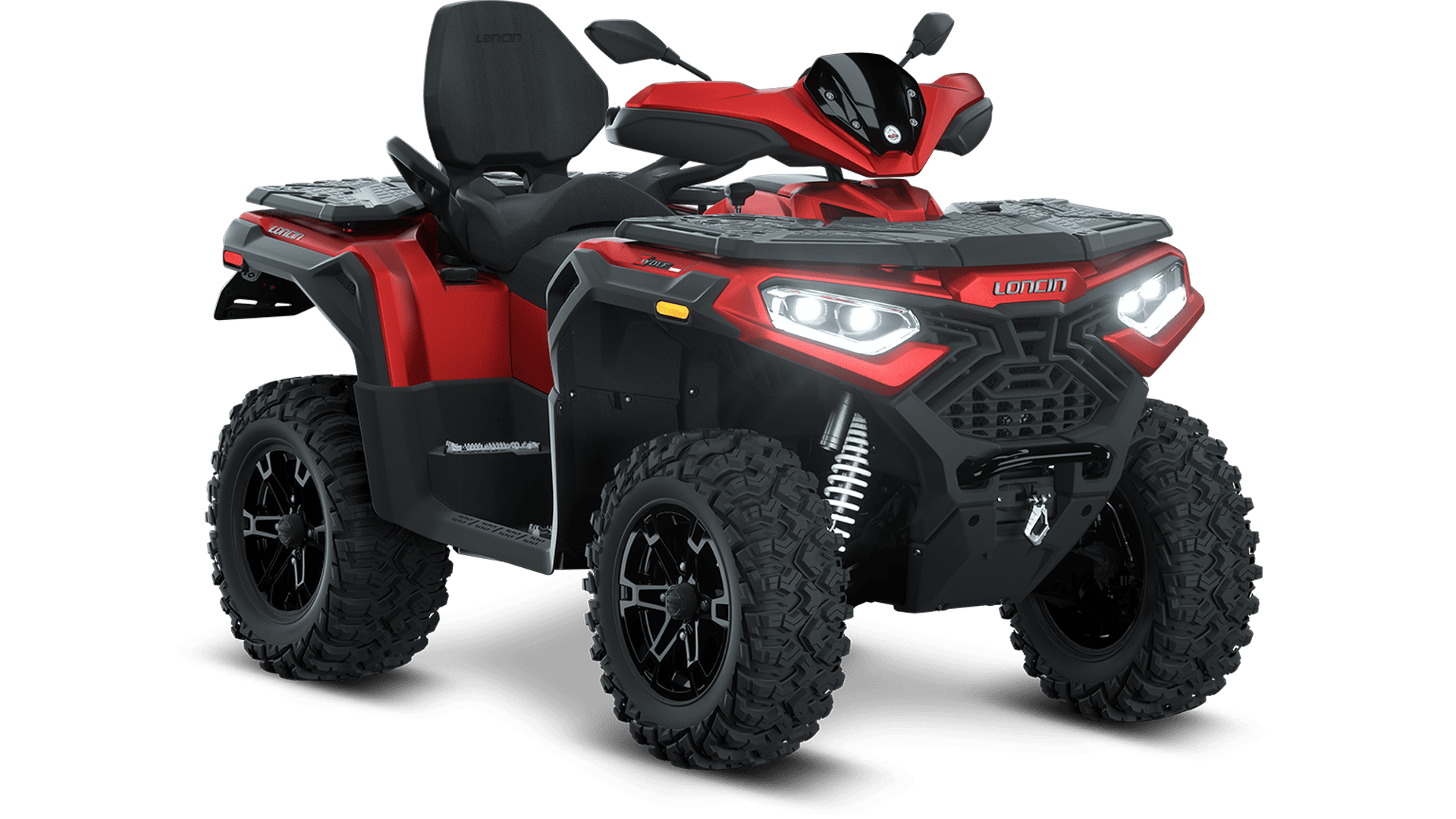

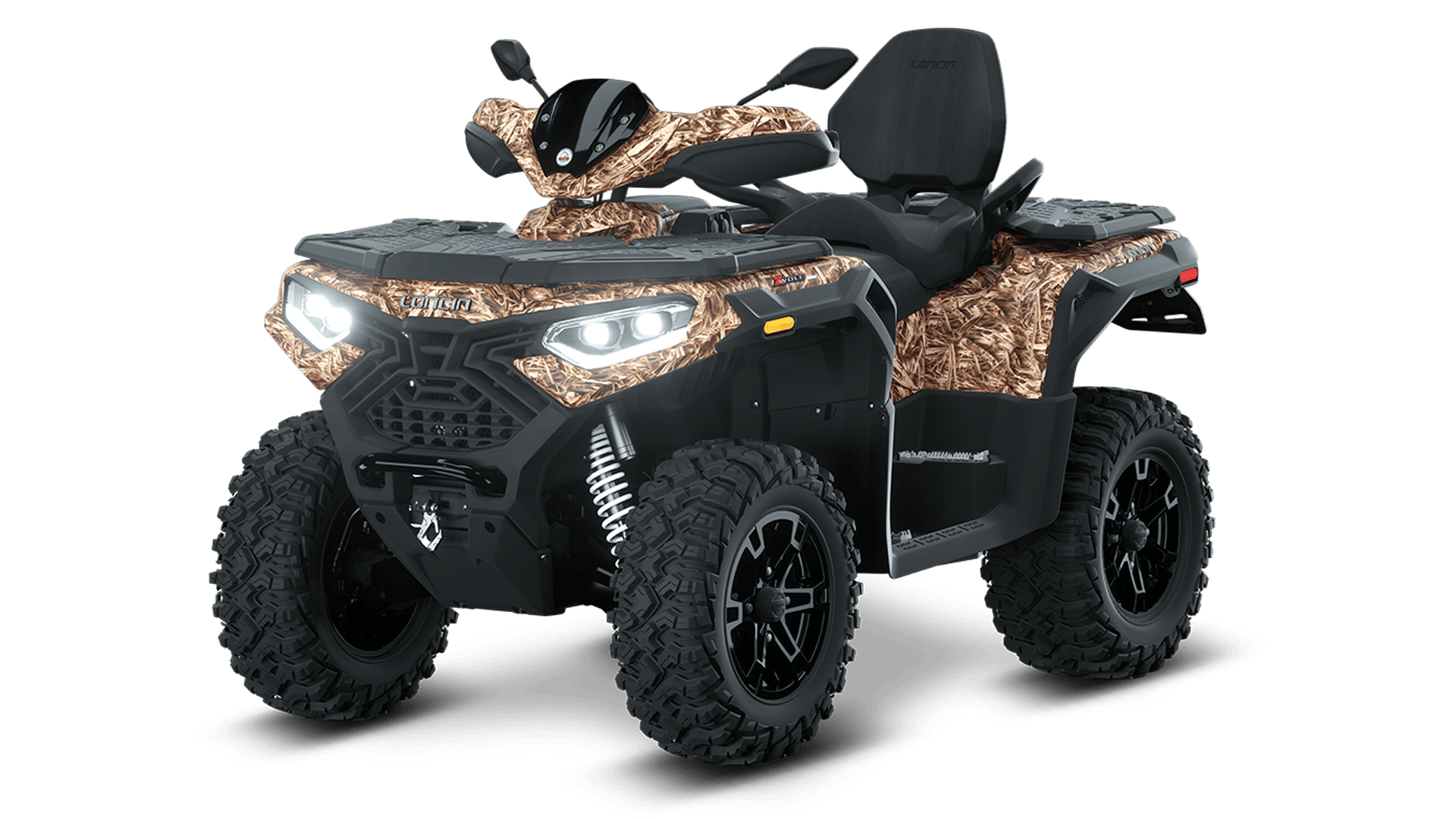

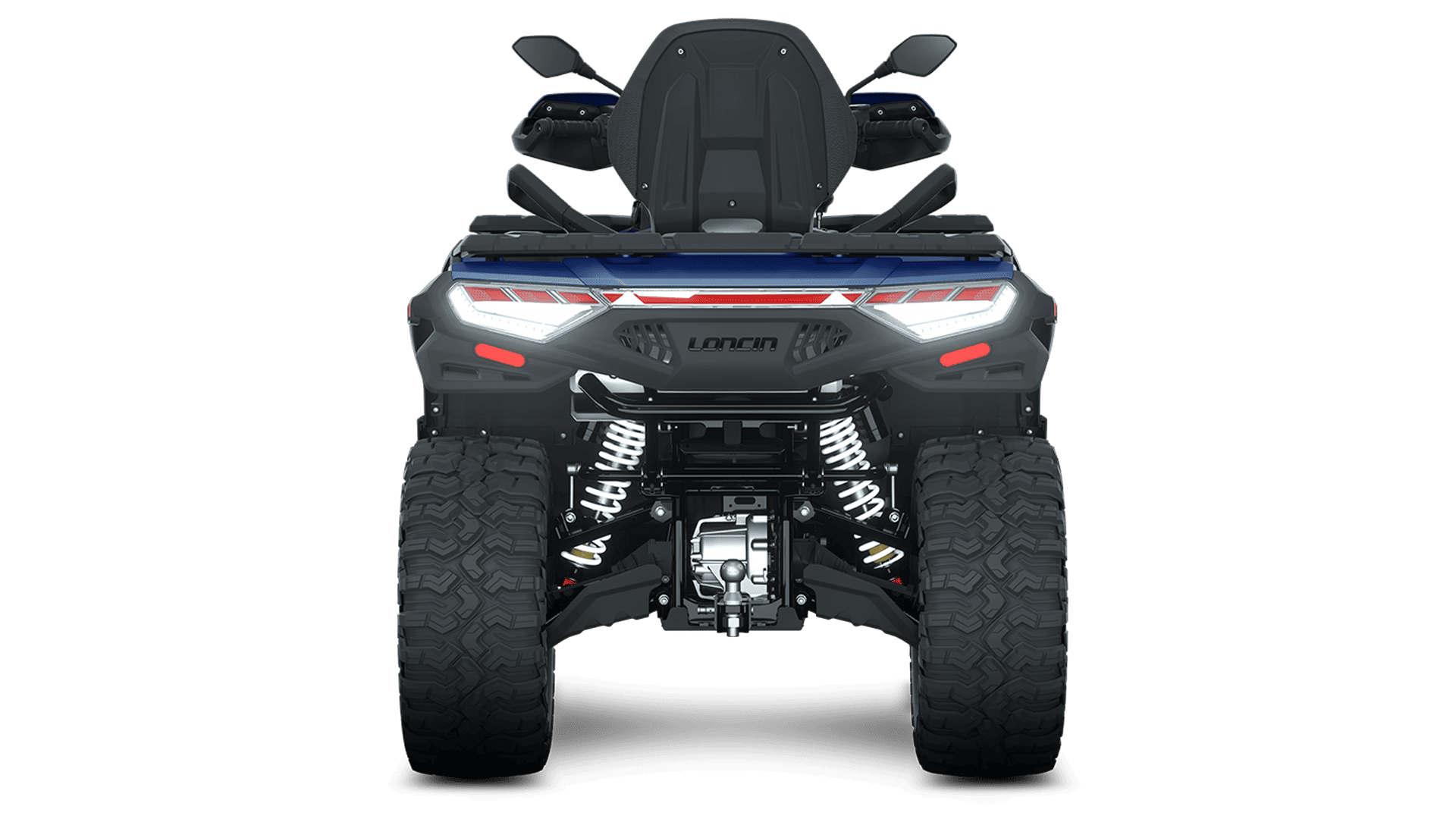

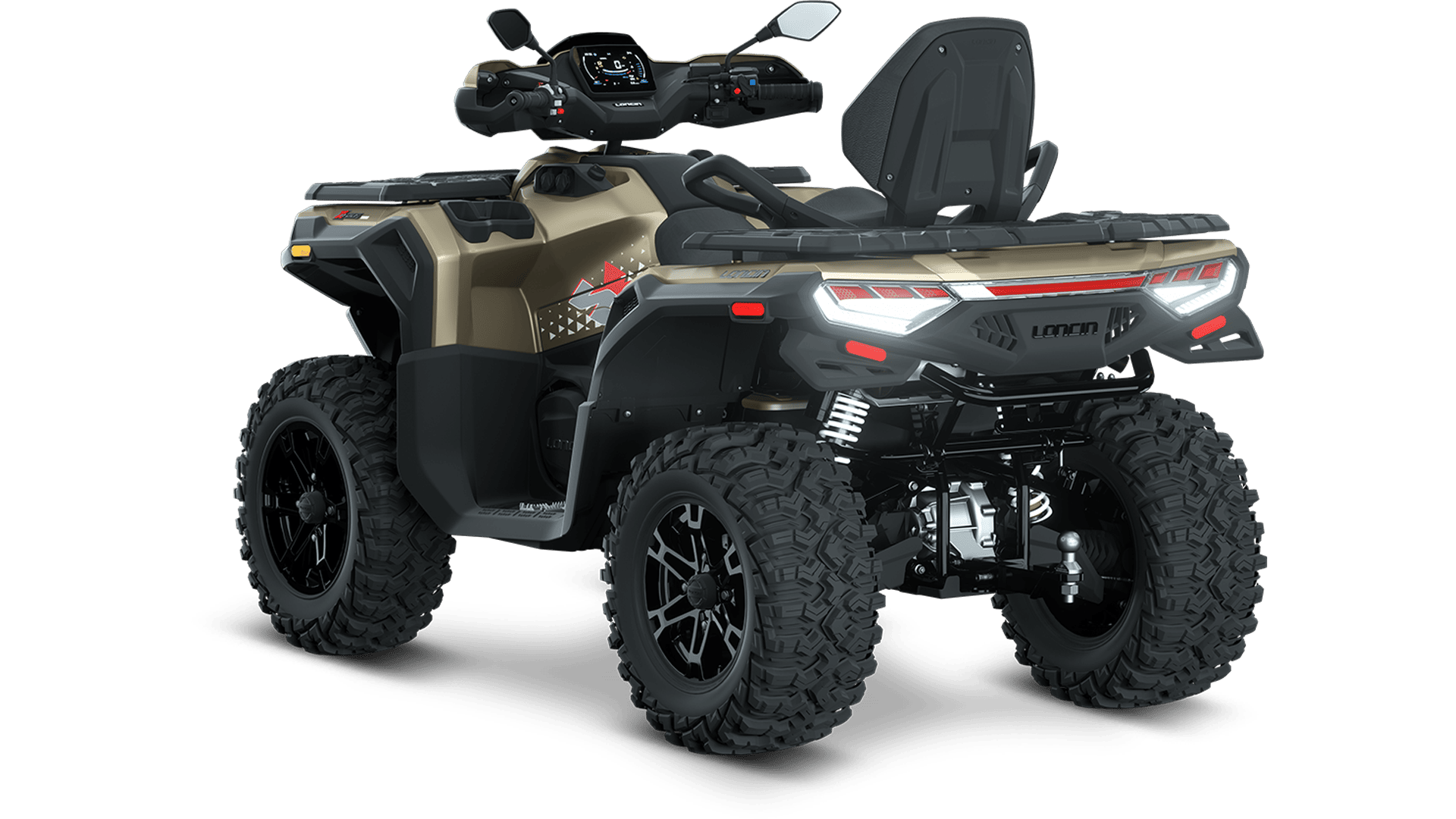

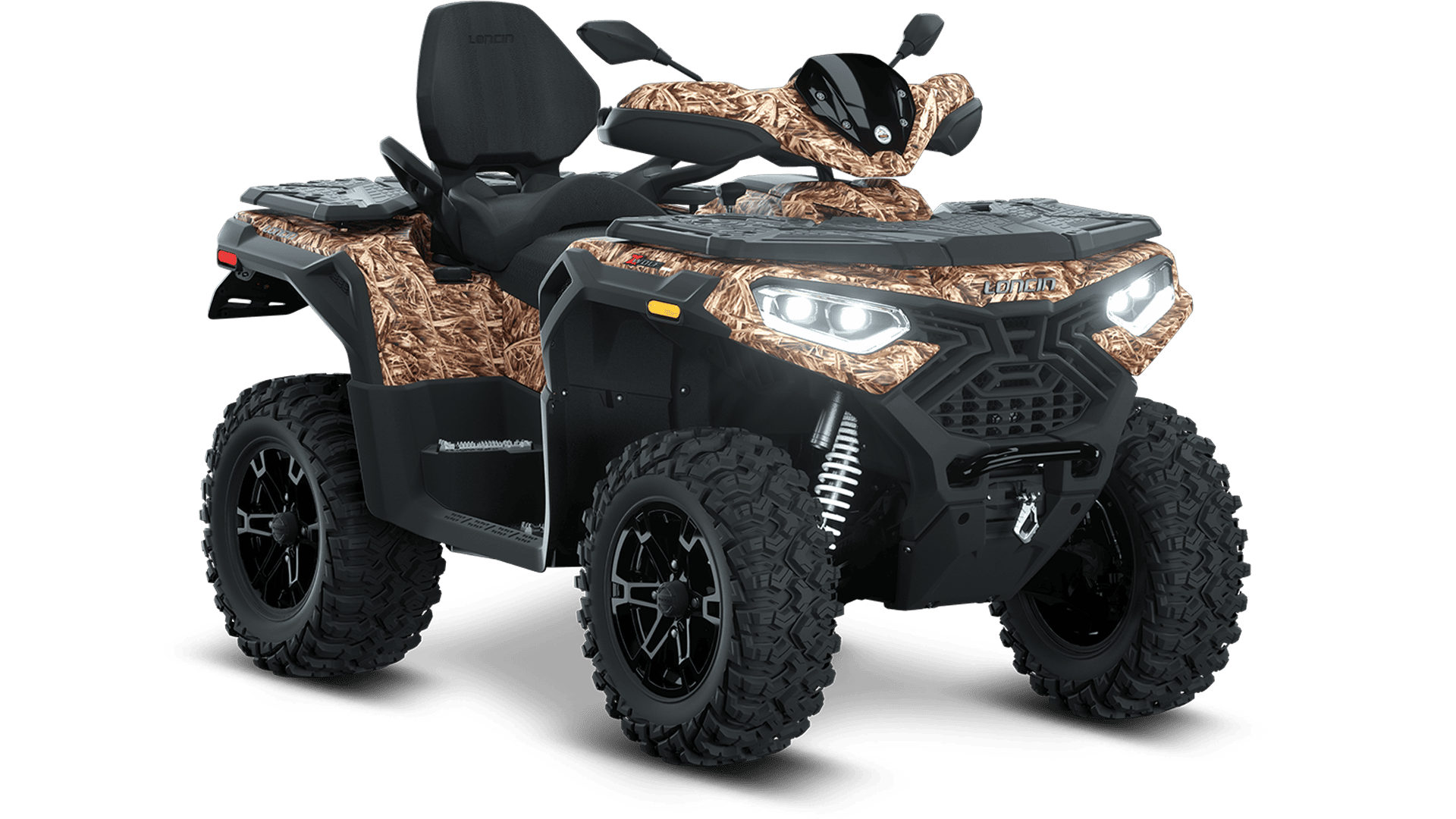

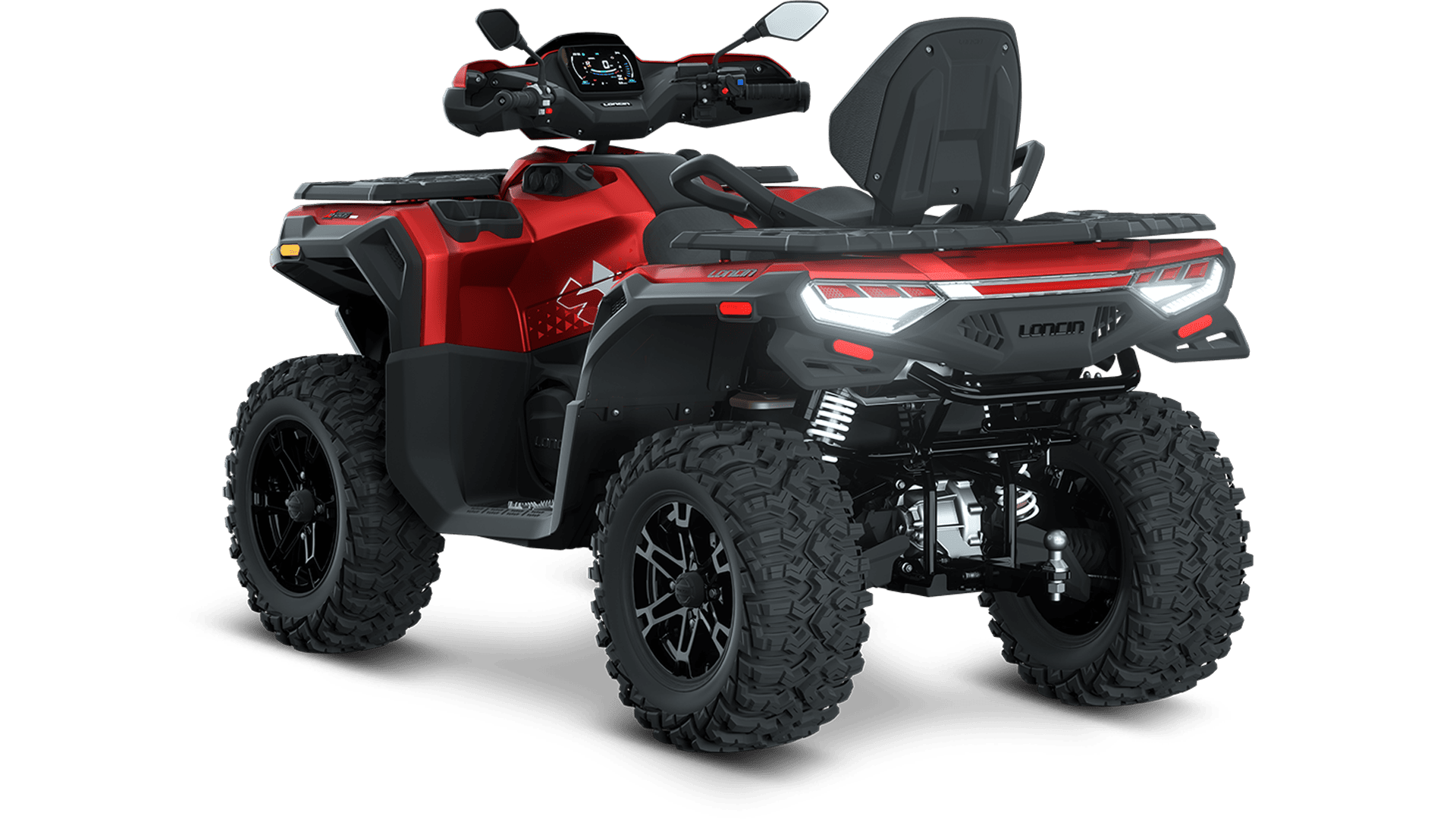

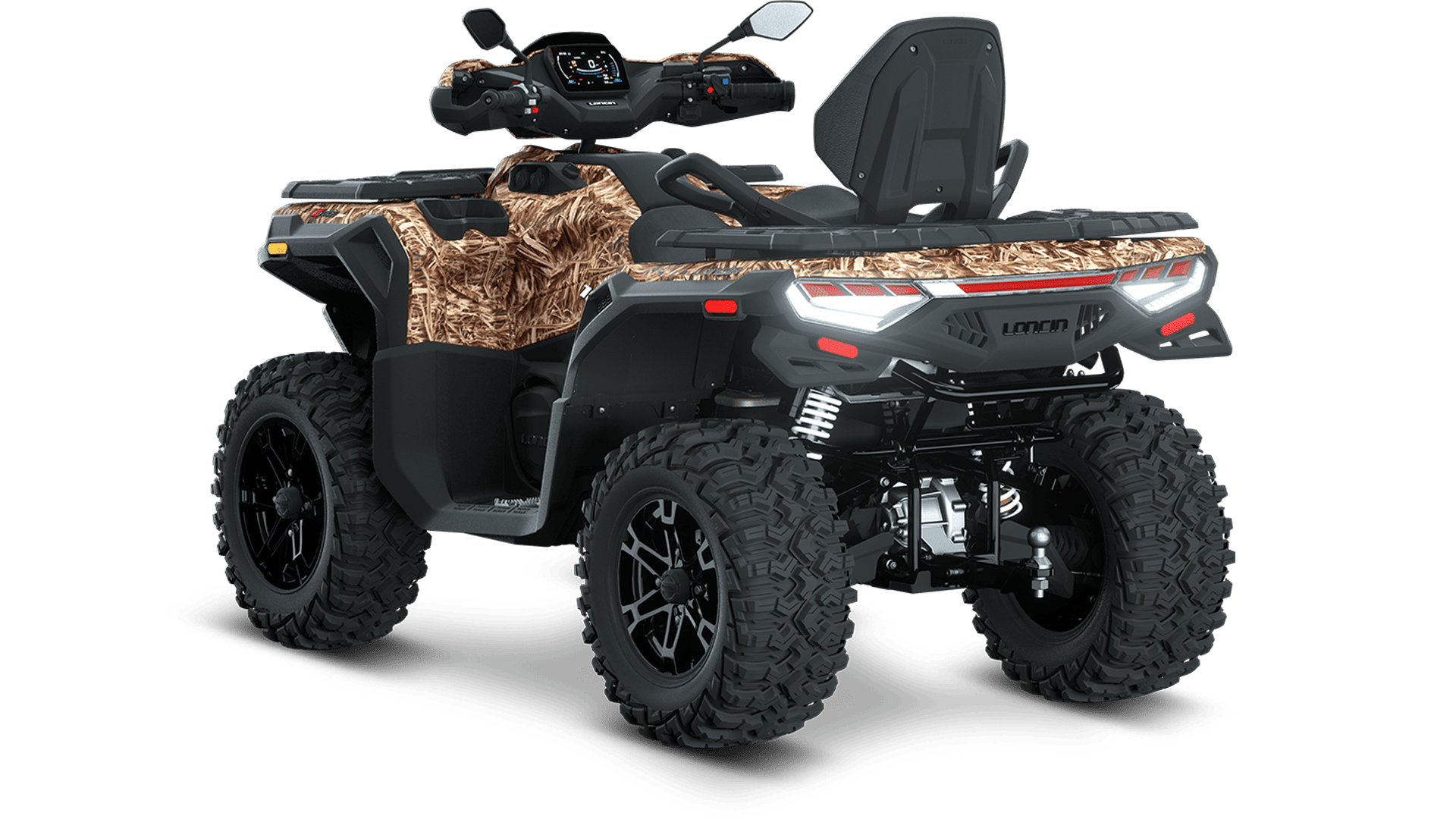

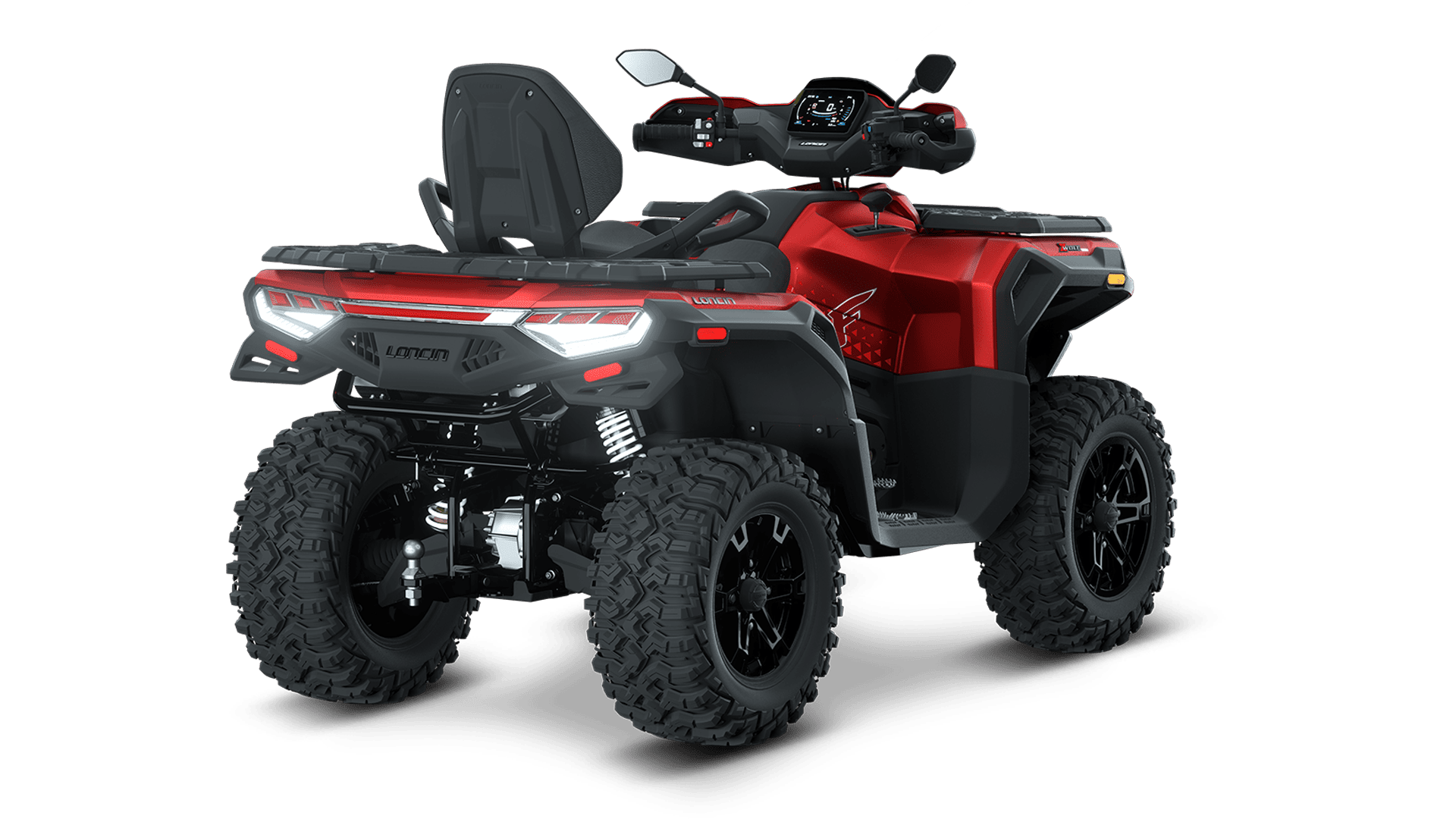

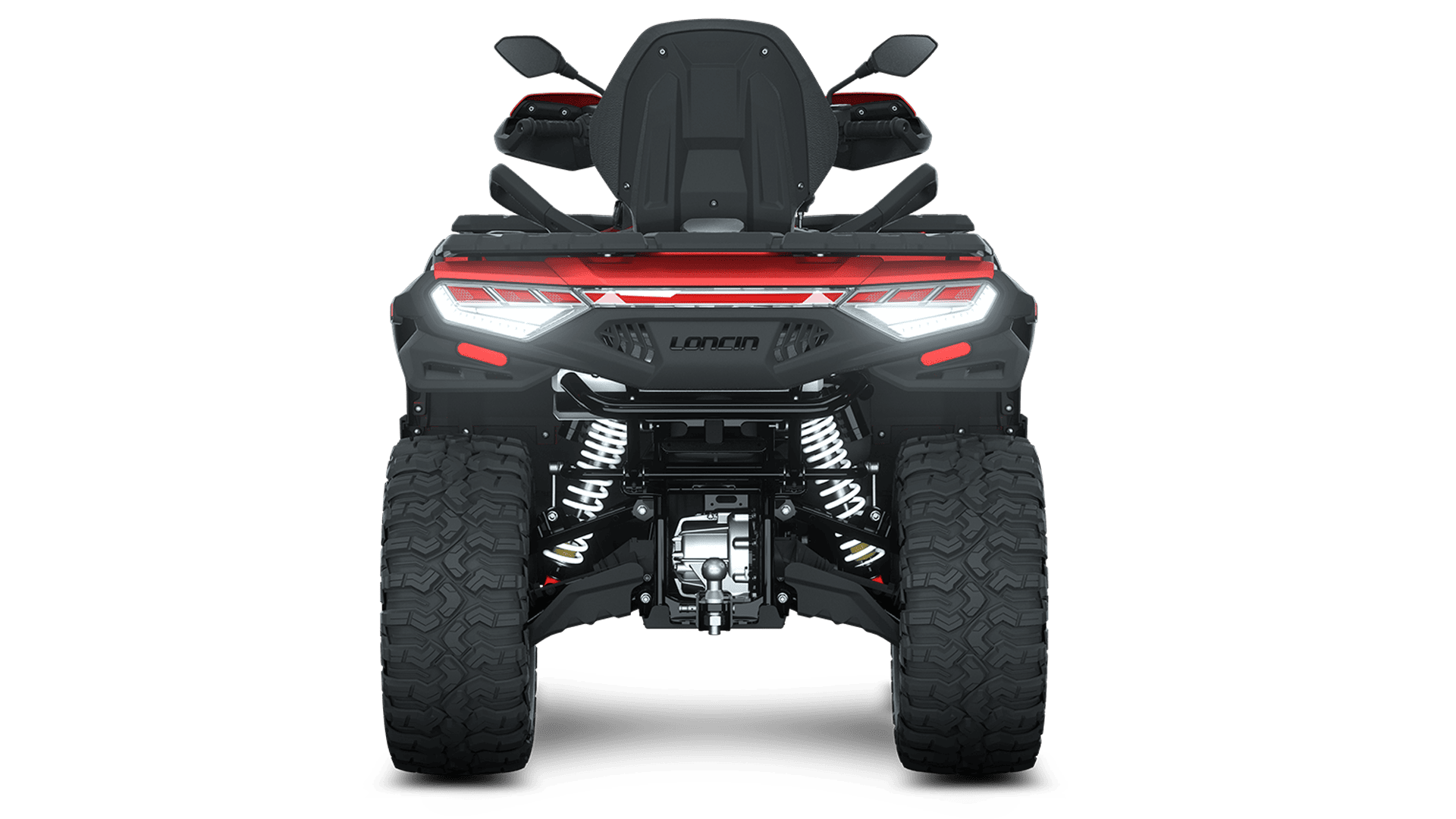

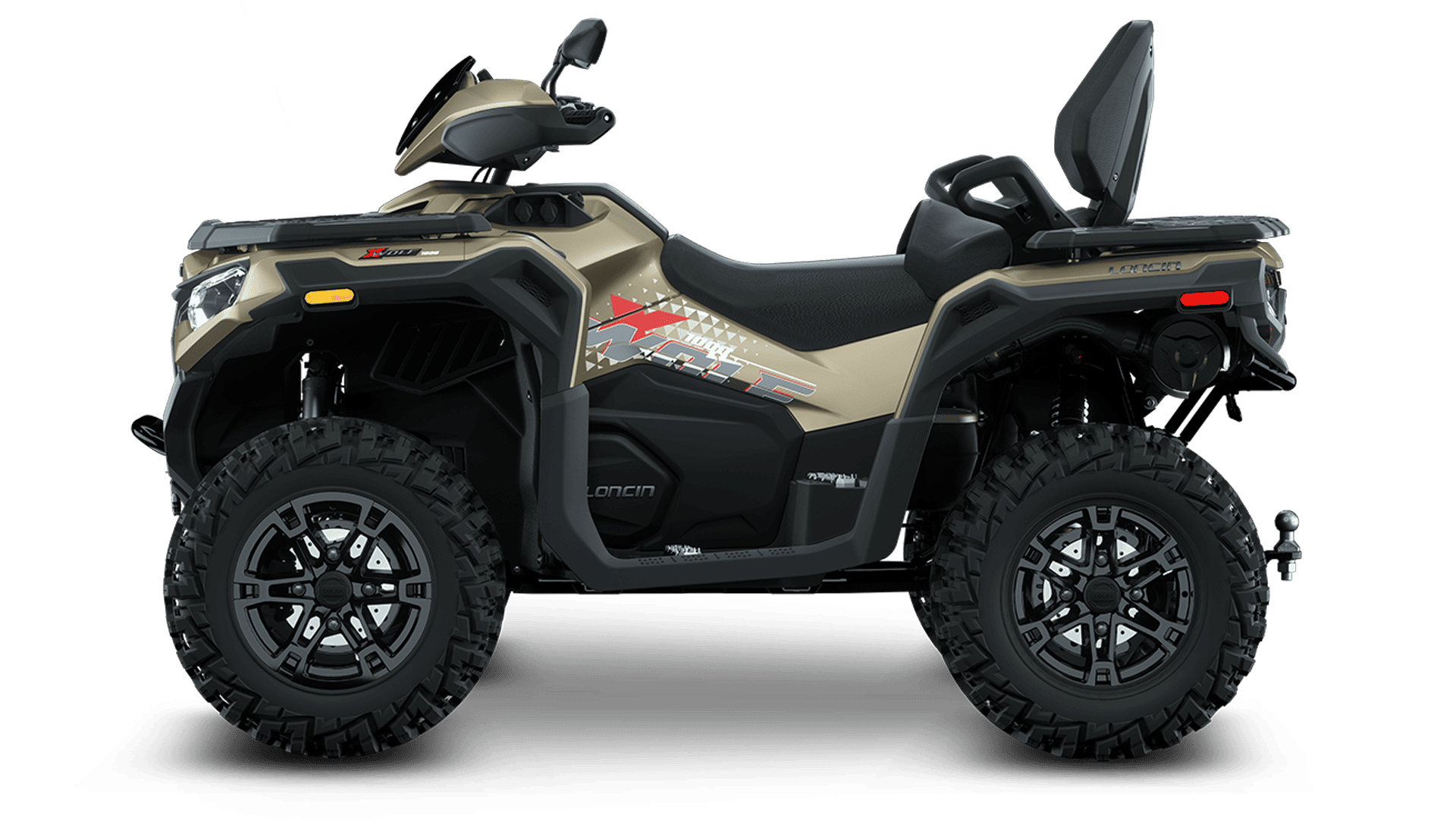

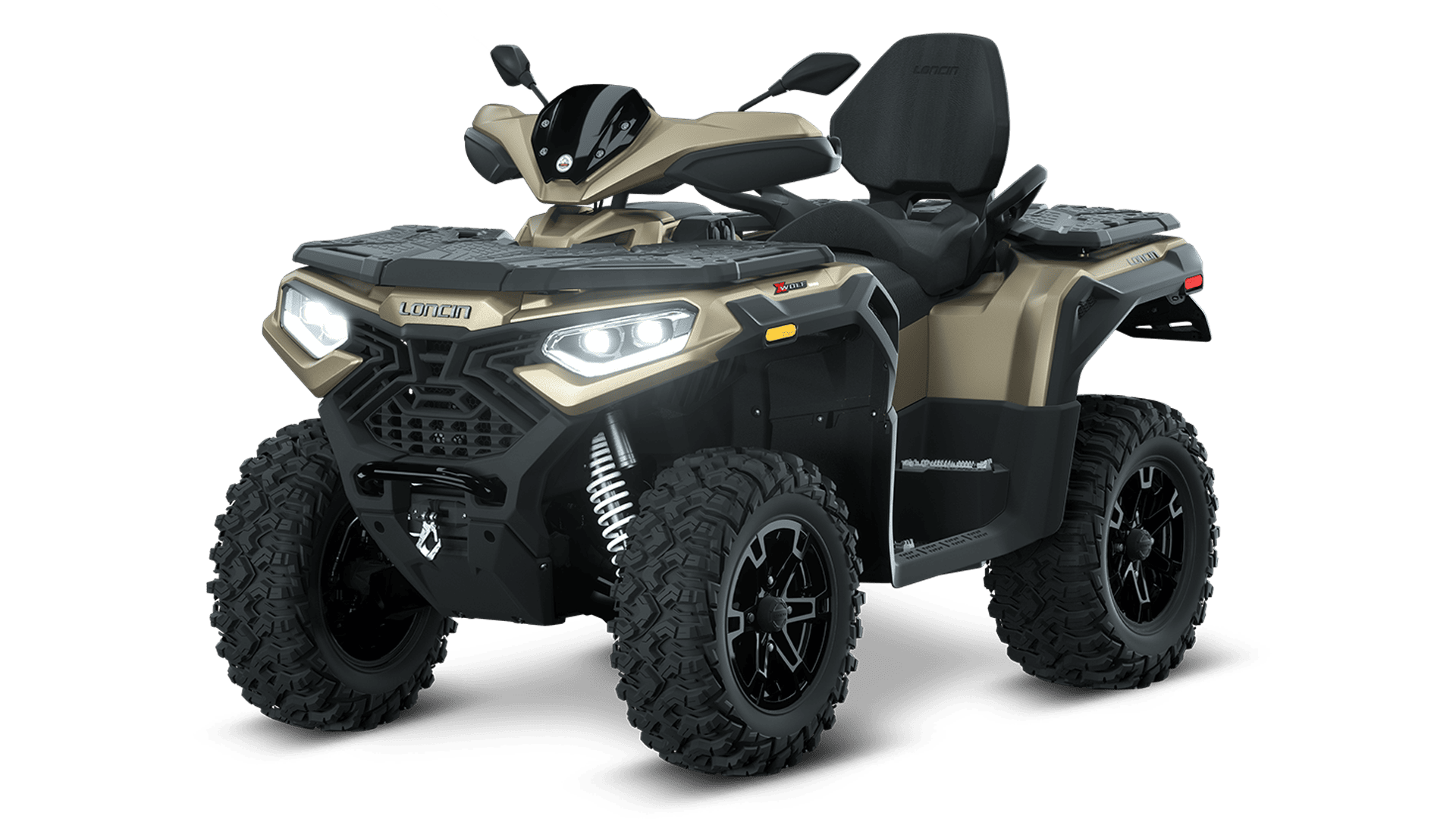

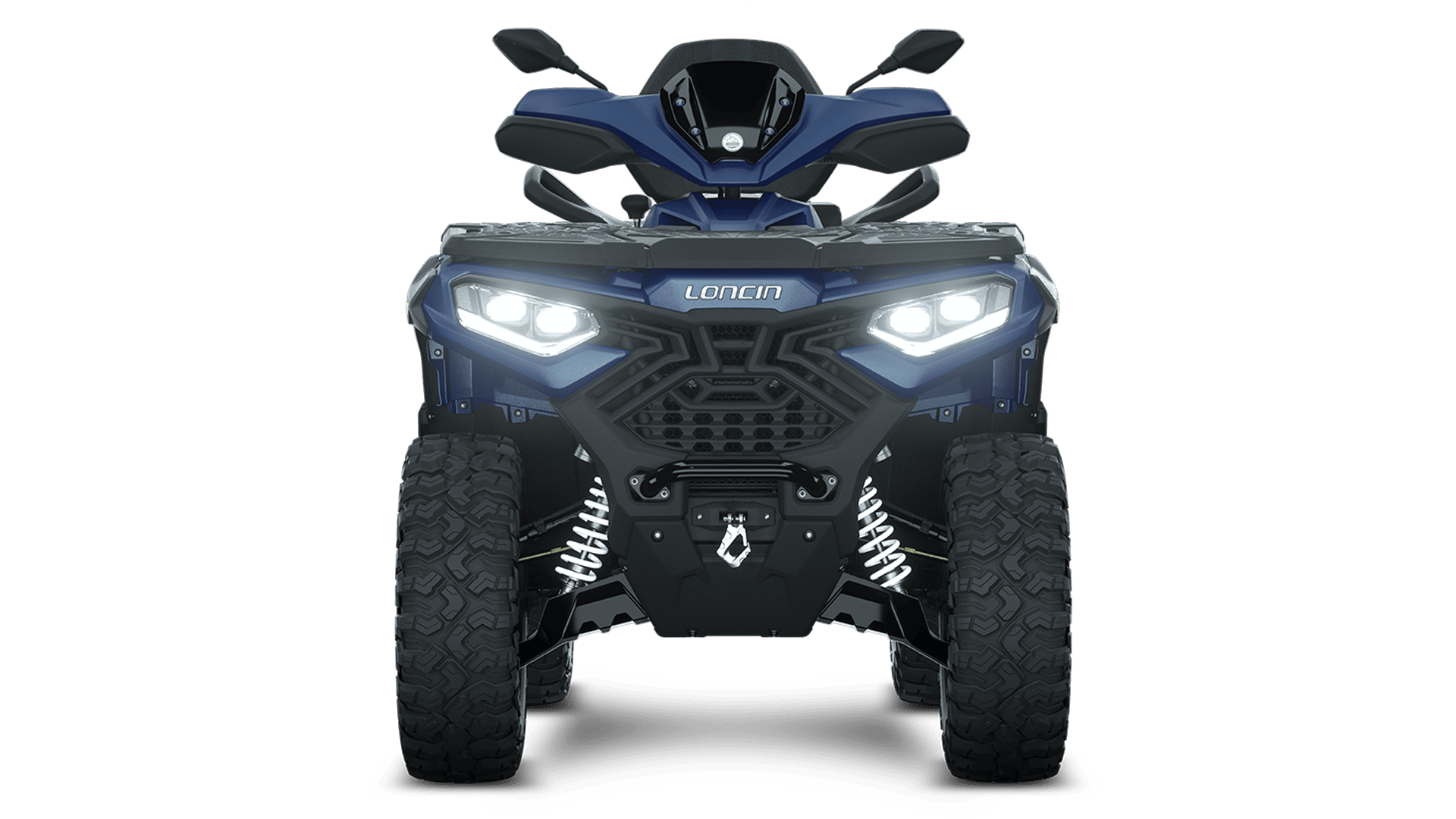

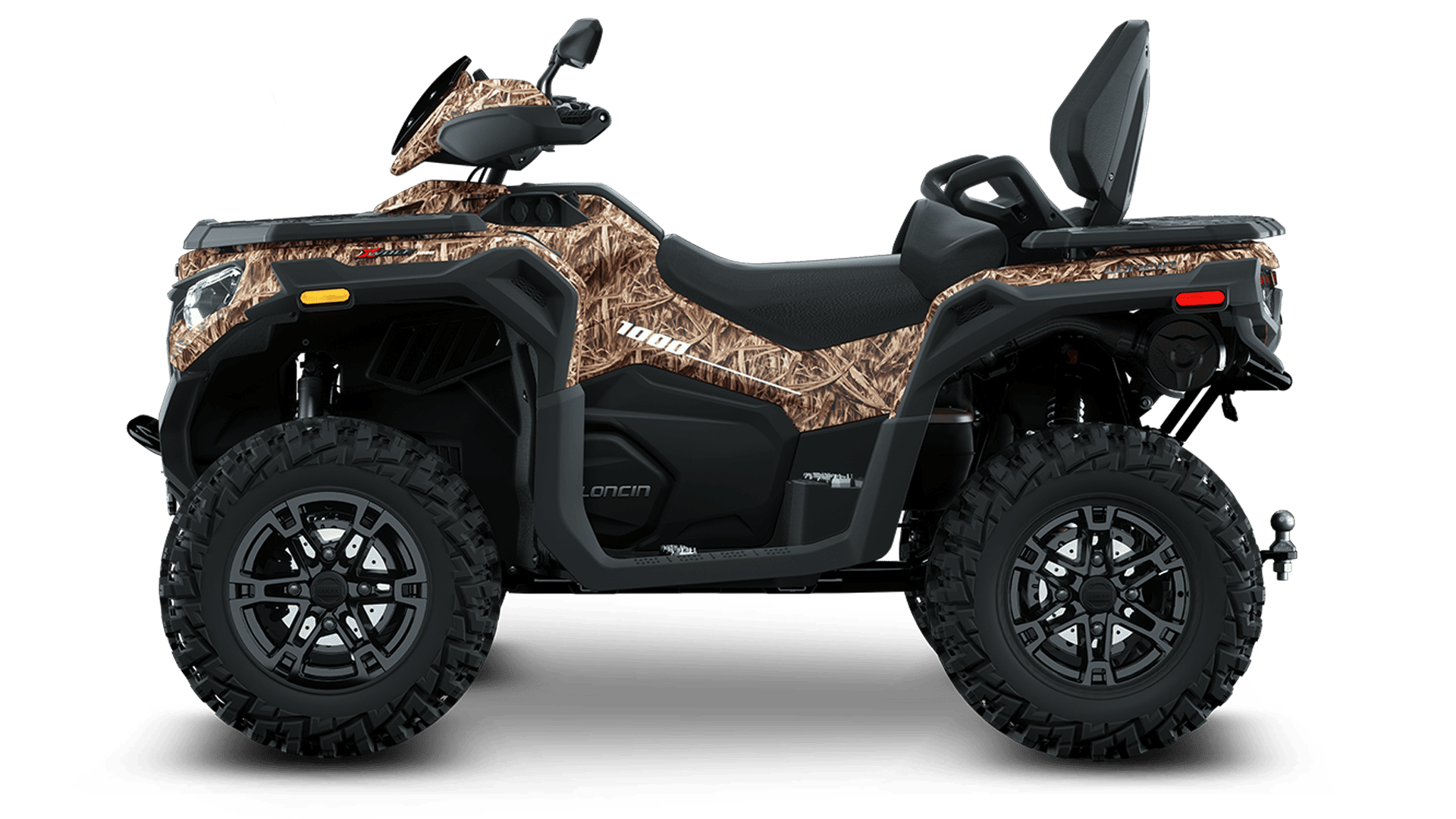

Multi-angle
images
Robust power of water cooling
V-double cylinder engine of 976cc, provide super strong power.

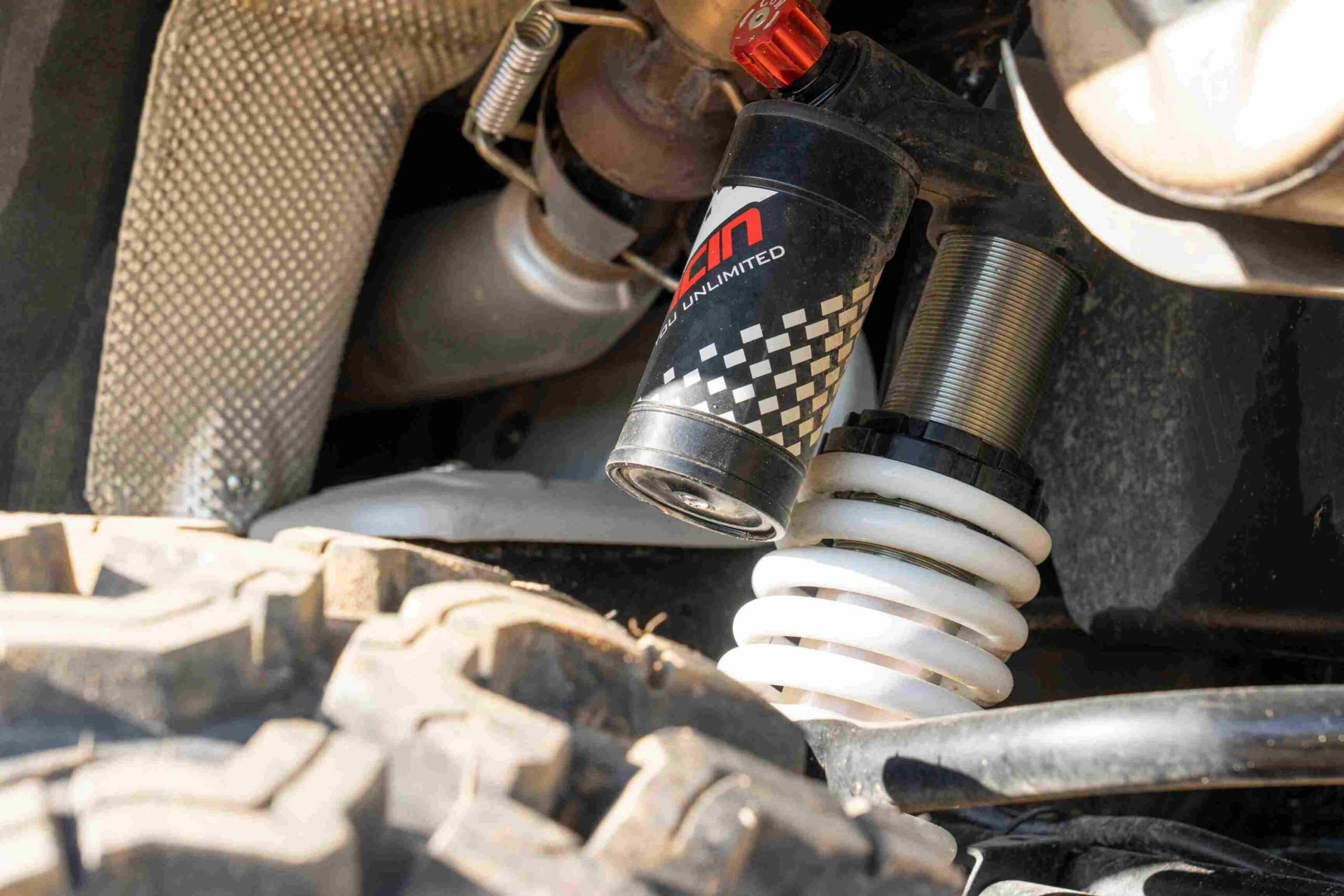

Individual suspension rack of double cross arm
Individual suspension rack of double cross arm for both front and rear against pitching, promote ability against side rolling.
Electric assistance of EPS
EPS of 3 modes makes easier and freer operation.

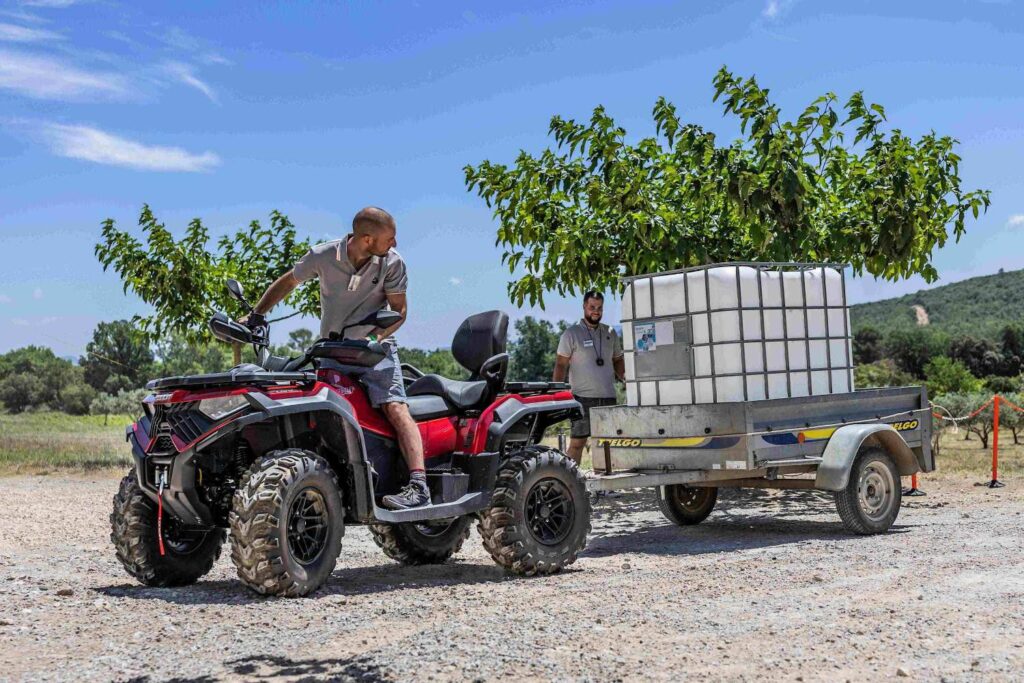

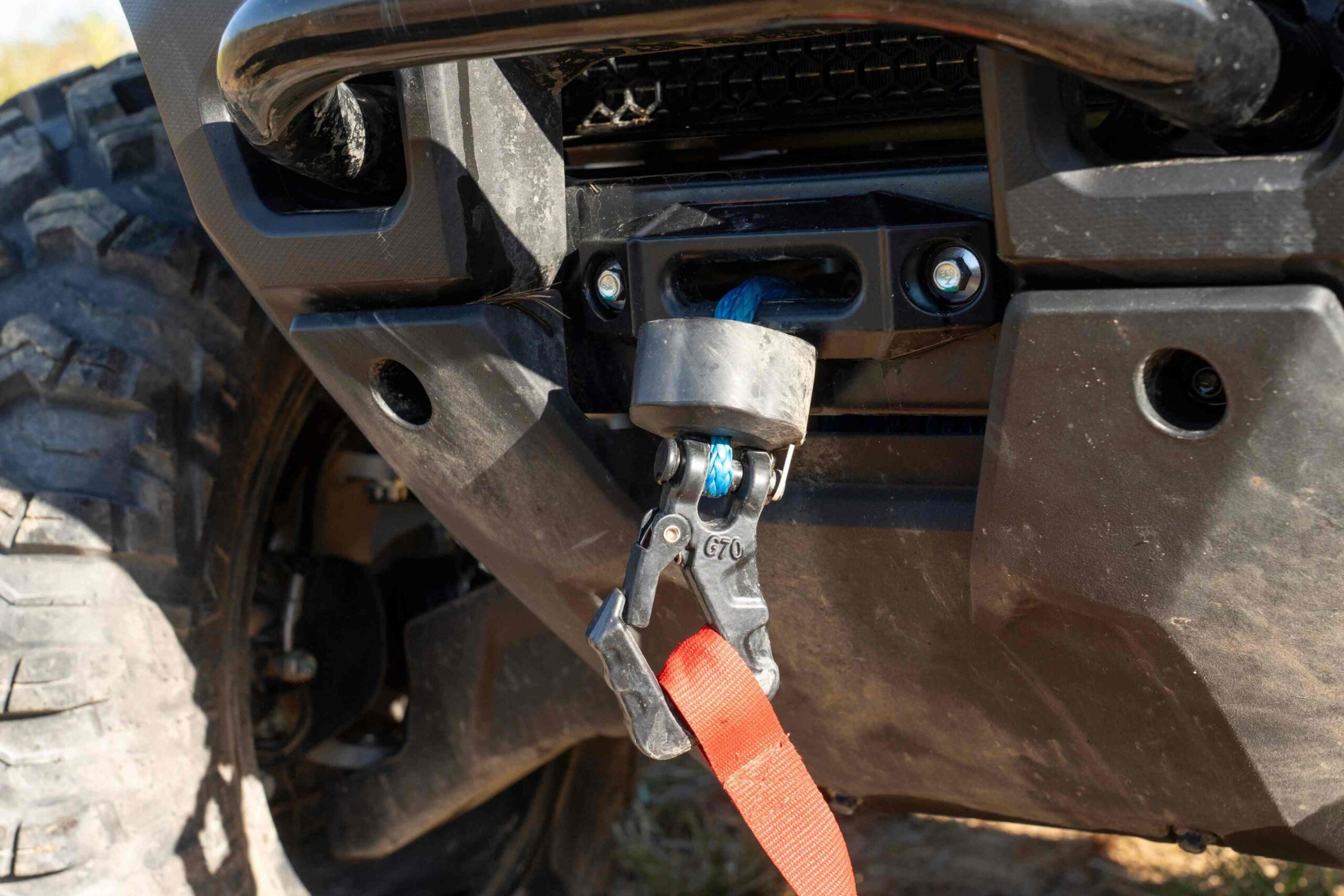

Super strong dragging
Super strong dragging reaches 900KG.

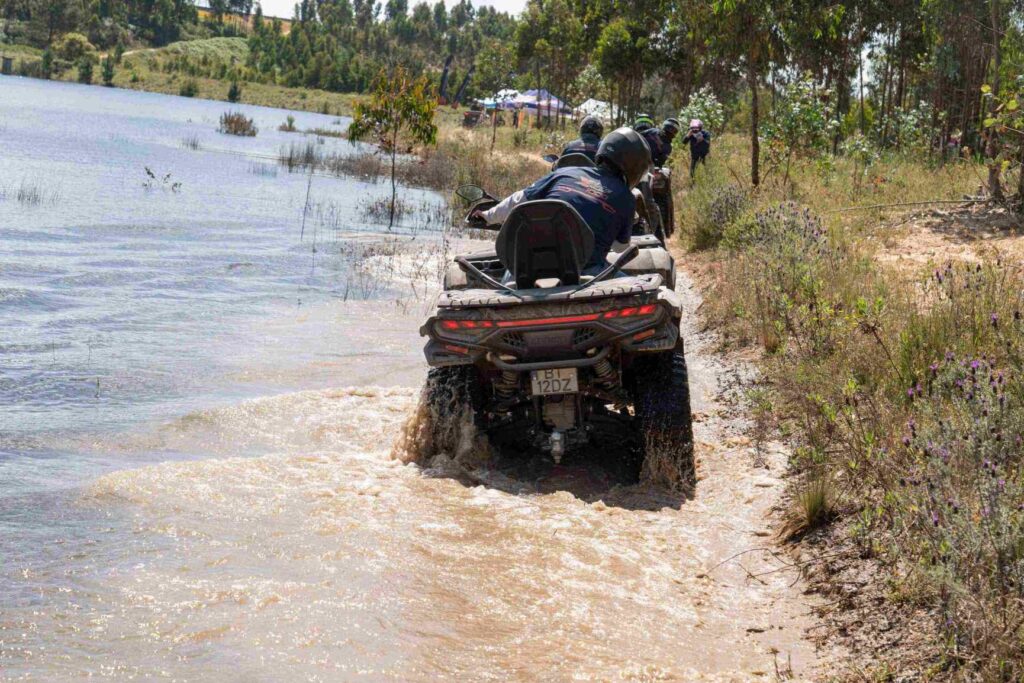

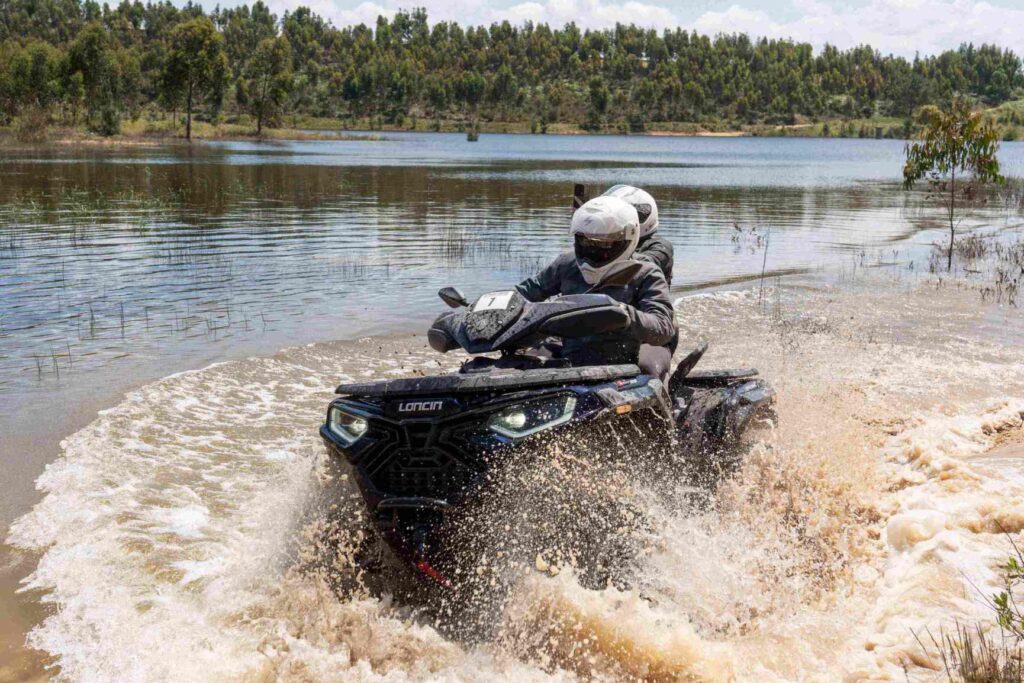

Excellent wading performance
Optimized design for air filter and air inlet port, ensures high wading performance compare to competitive products.
Fuel tank with super capacity
Big capacity for fuel tank makes driving range reach 300km.

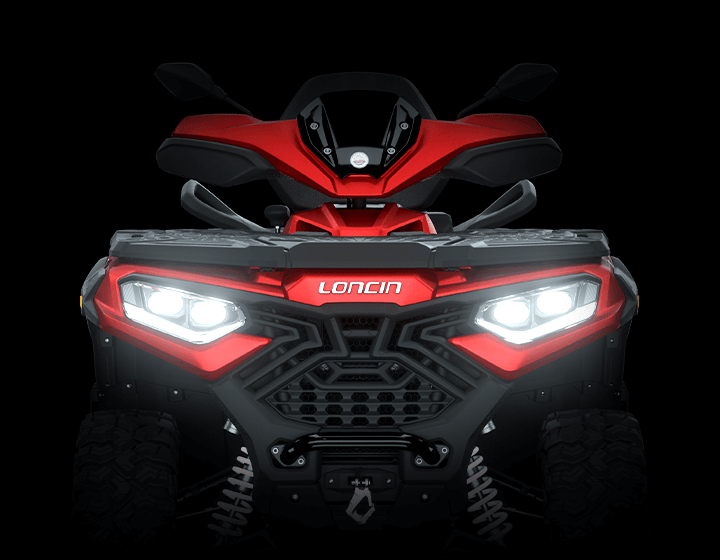

Splendid lights reaches auto grade
Adopt lights design of automobile, Loncin XWolf has long position light with lens around, which raises up feeling of luxury while ensuring driving safety

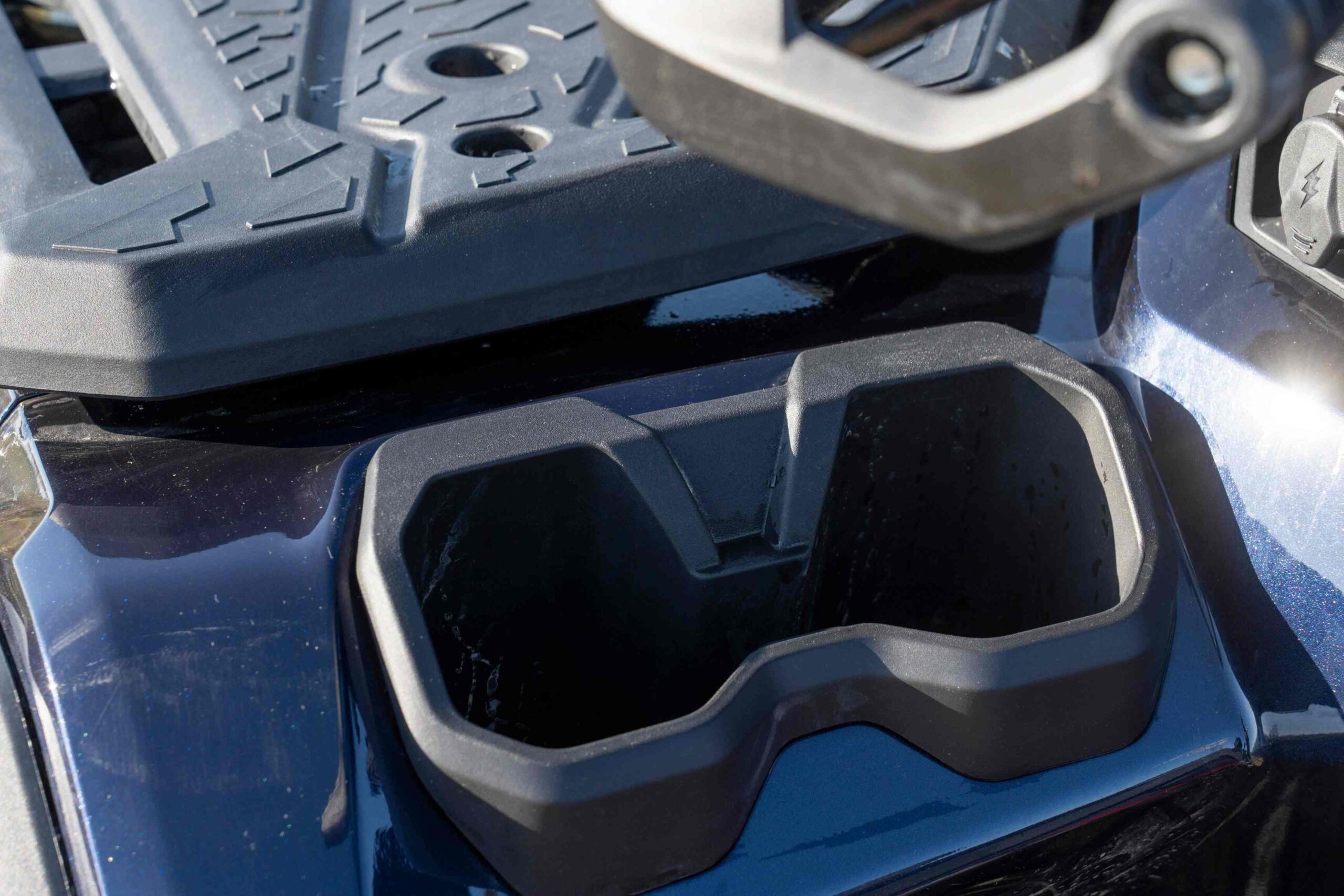

More space for luggage
More space for luggage with front case of 26L while rear 20L.

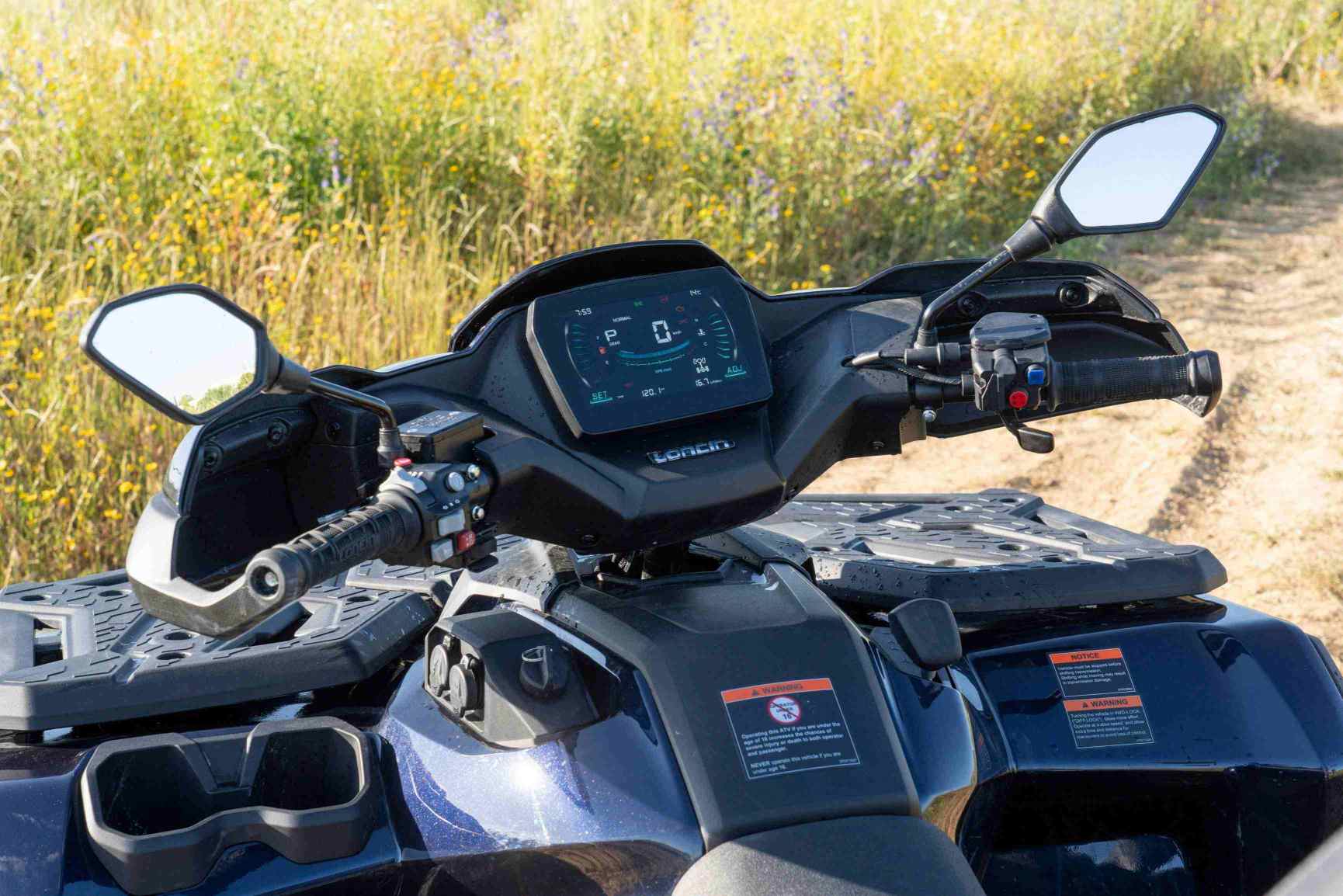

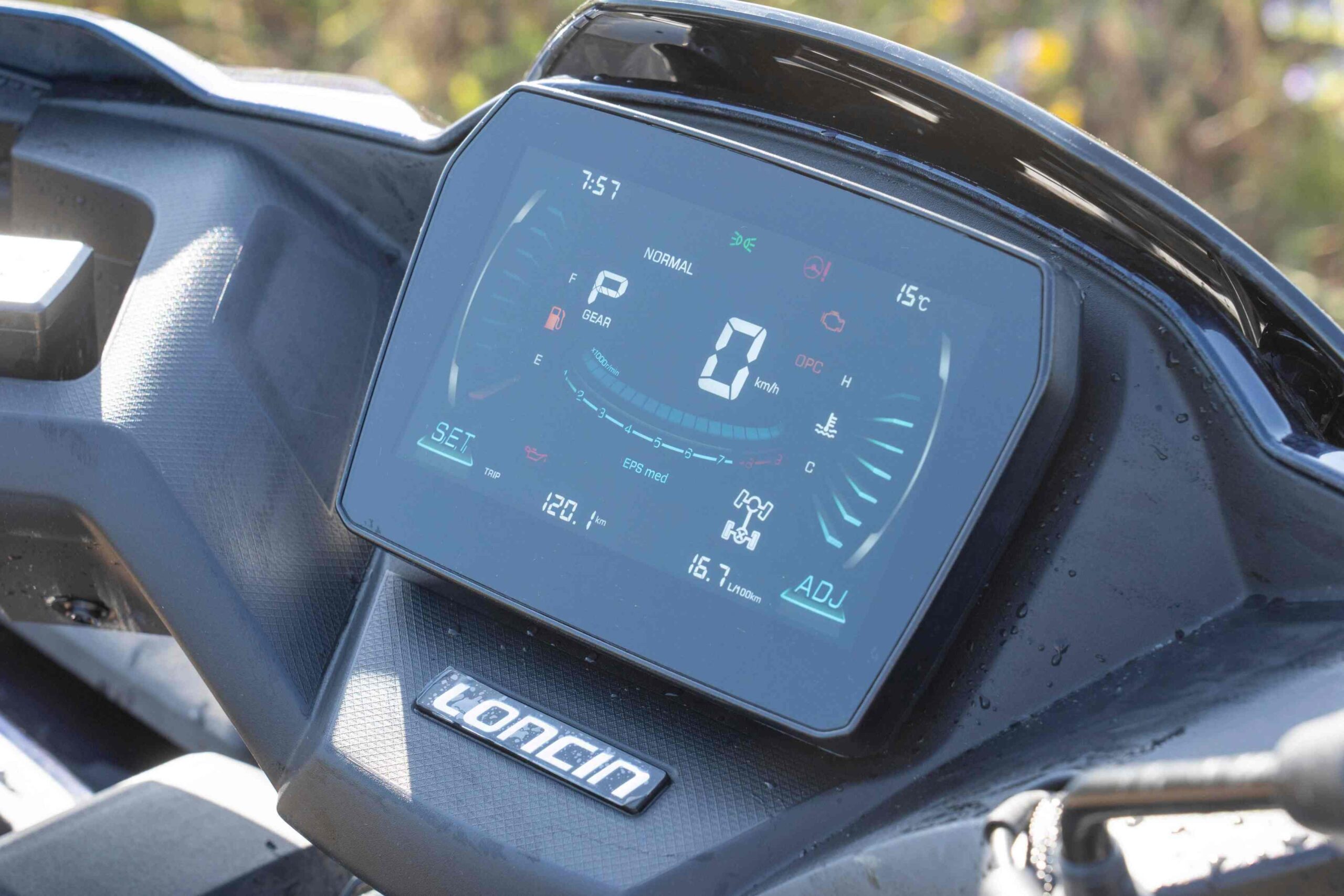

LCD speedometer of High identification
Speedometer of LCD, better in information read and visual appearance.
LONCIN XWolf 1000 Specifications
| Engine specification | V-twin cylinders, SOHC, 4 valves, liquid cooled |
| Displacement | 976cc |
| Bore x Stroke | 91×75mm |
| Compression ratio | 10.9:1 |
| Maximal power | 75kW/7000rpm |
| Maximal torque | 102N·m/5500rpm |
| Fuel supply | BOSCH ® EFI |
| Speed transmission | CVT, P/R/N/H/L |
| LxWxH | 2362×1266×1482mm |
| Wheelbase | 1500 |
| Seat height | 950(To ground）mm |
| Minimum ground clearance | 305mm |
| Minimum turning radius | 3.7m |
| Dry weight | 468kg |
| Maximal loading | 300kg |
| Fuel tank capacity | 33L |
| Drive mode | 2WD/4WD/4WD-Lock |
| Brake mode | Disc brake for 4 wheels |
| Suspension mode | Front：Double A-shaped arm of arch Rear：Double A-shaped arm |
| Front shock absorber | Piggyback gas shock absorbers |
| Rear shock absorber | Piggyback gas shock absorbers |
| Wheel hub specification | Aluminium wheel of 14 inches, with selectable dropping-proof wheel hub |
| Front tire | 27×9 R14 |
| Rear tire | 27×11 R14 |
XWolf 1000 MUD
Muddy terrains have always been the ultimate playground for thrill-seekers to unleash their wild side. Equipped with a revolutionary high-efficiency ventilation system, it delivers unrestricted wading and mud-slinging freedom; while its thunderous power output grants unmatched all-terrain dominance, turning every trek into a conquest of exhilaration. When the call of adventure courses through your veins, the LONCIN XWolf 1000 Mud—the ultimate machine crafted for untamed spirits!

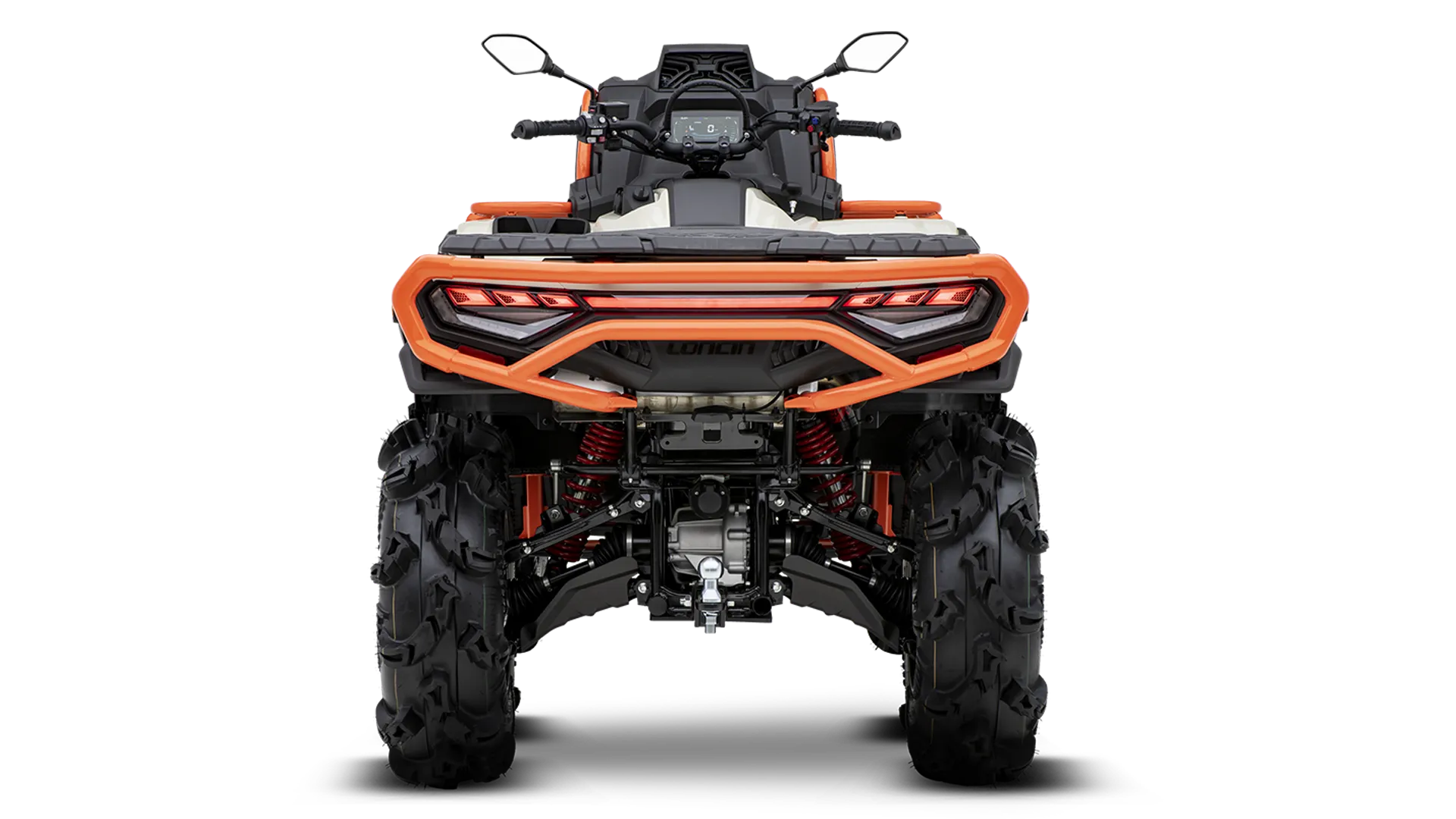

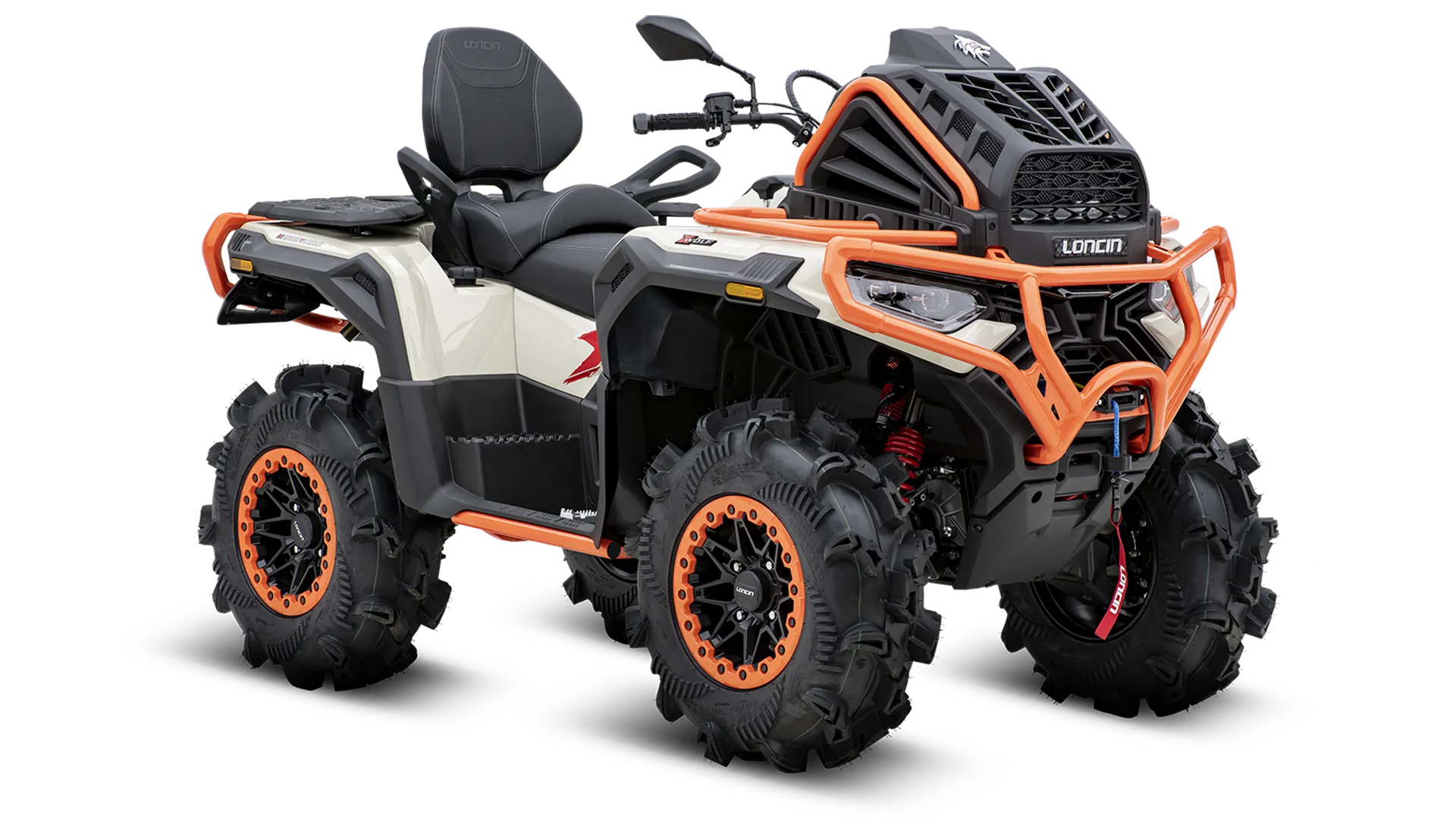

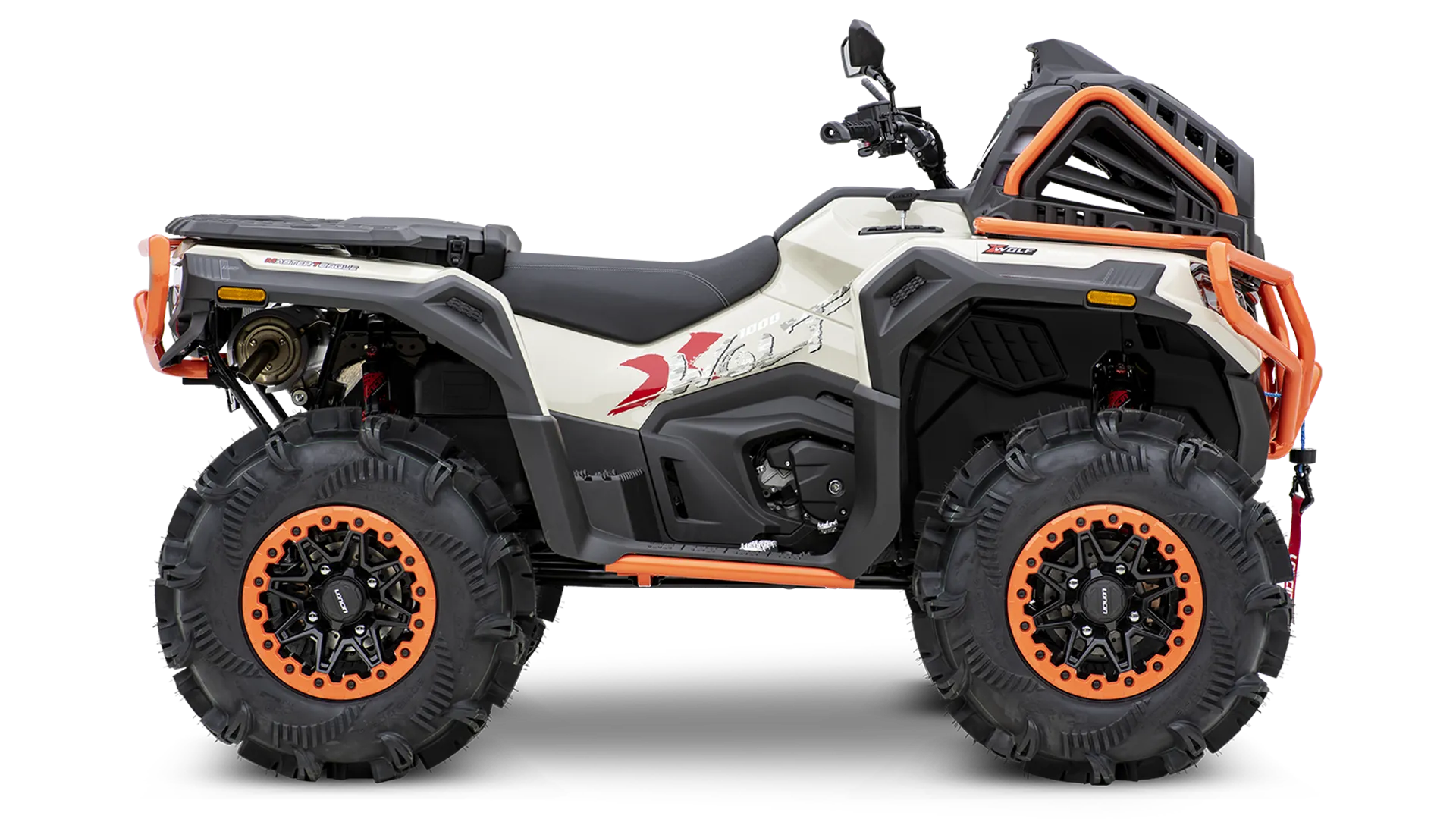

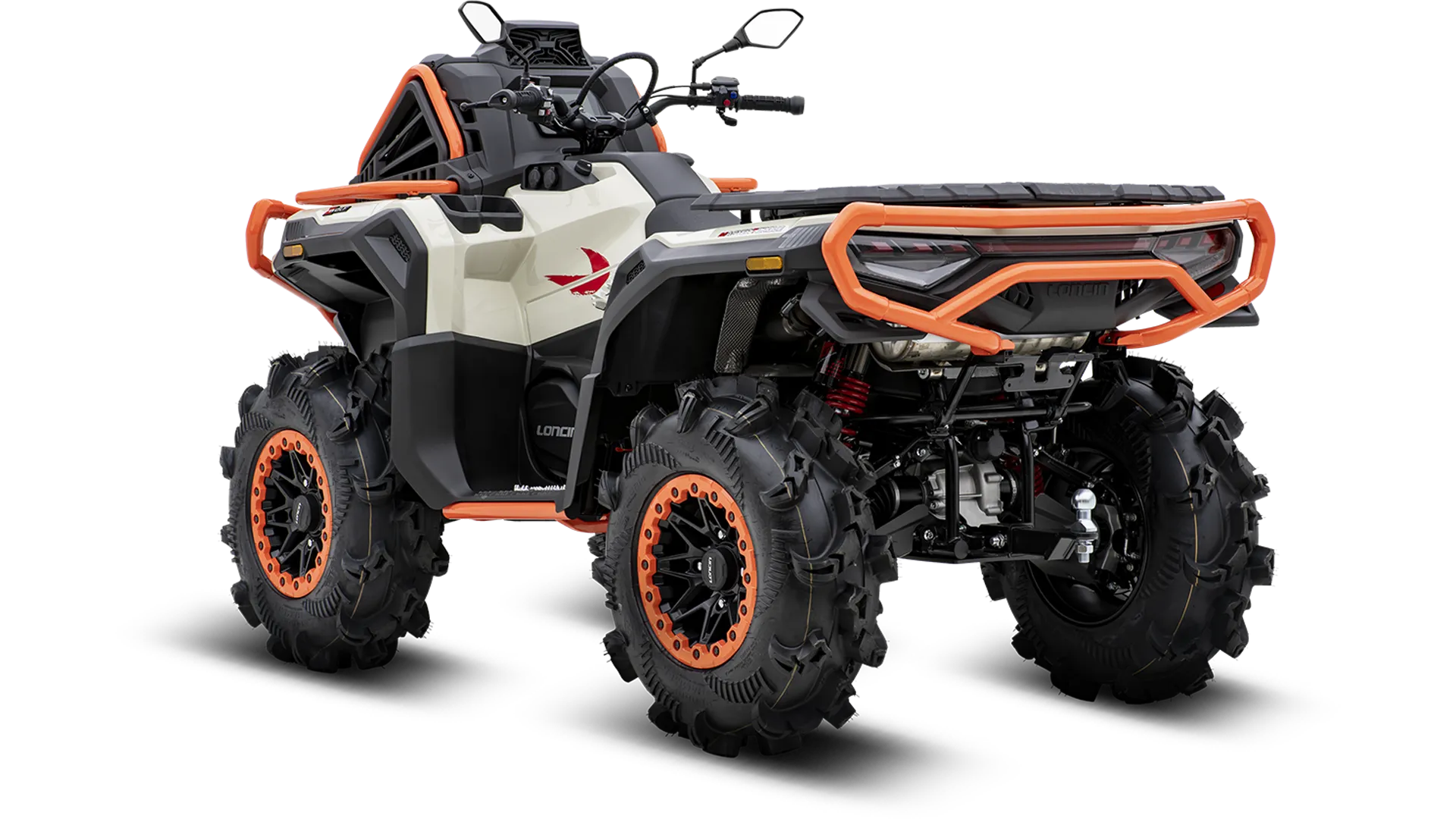

MUD

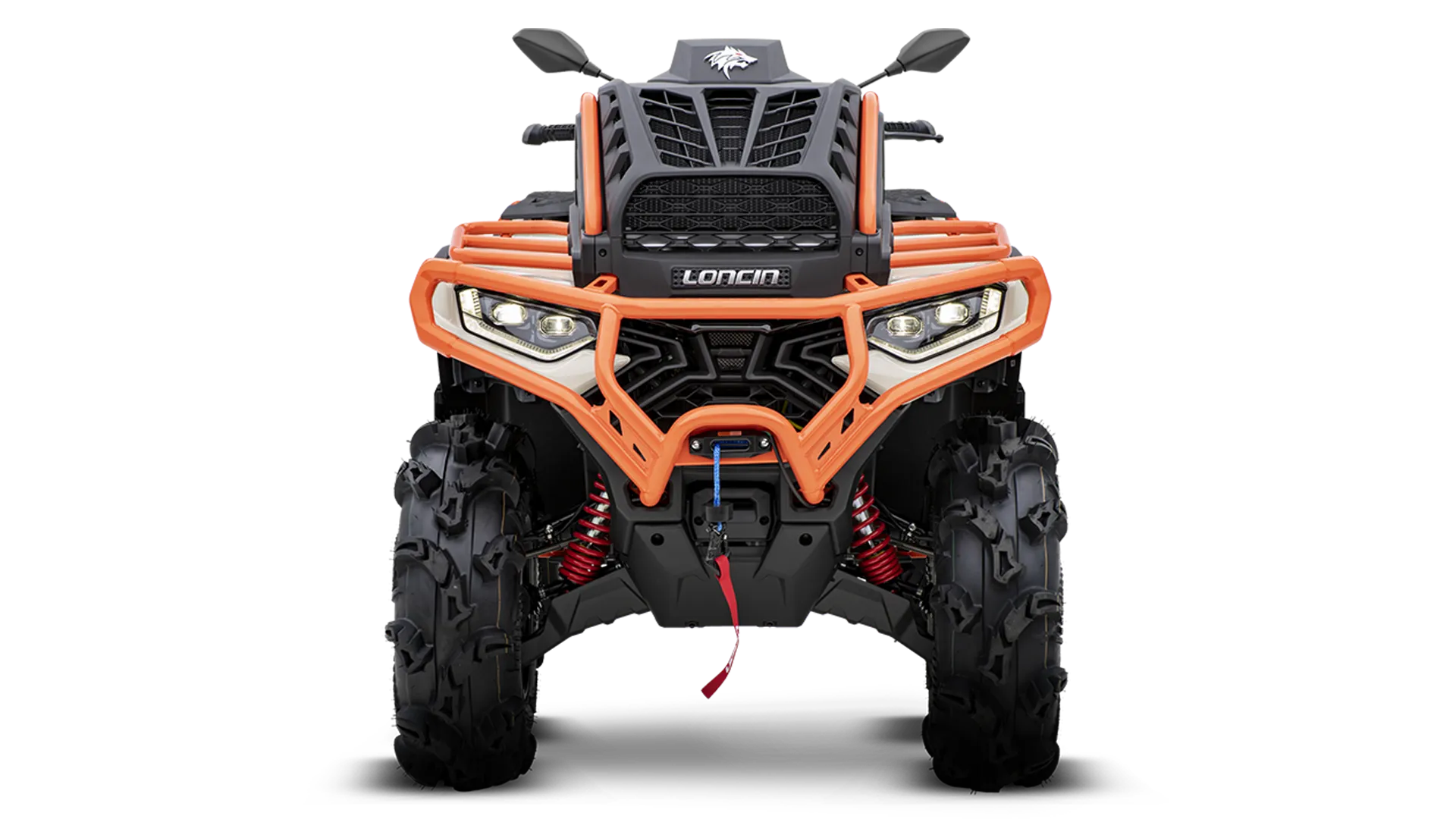

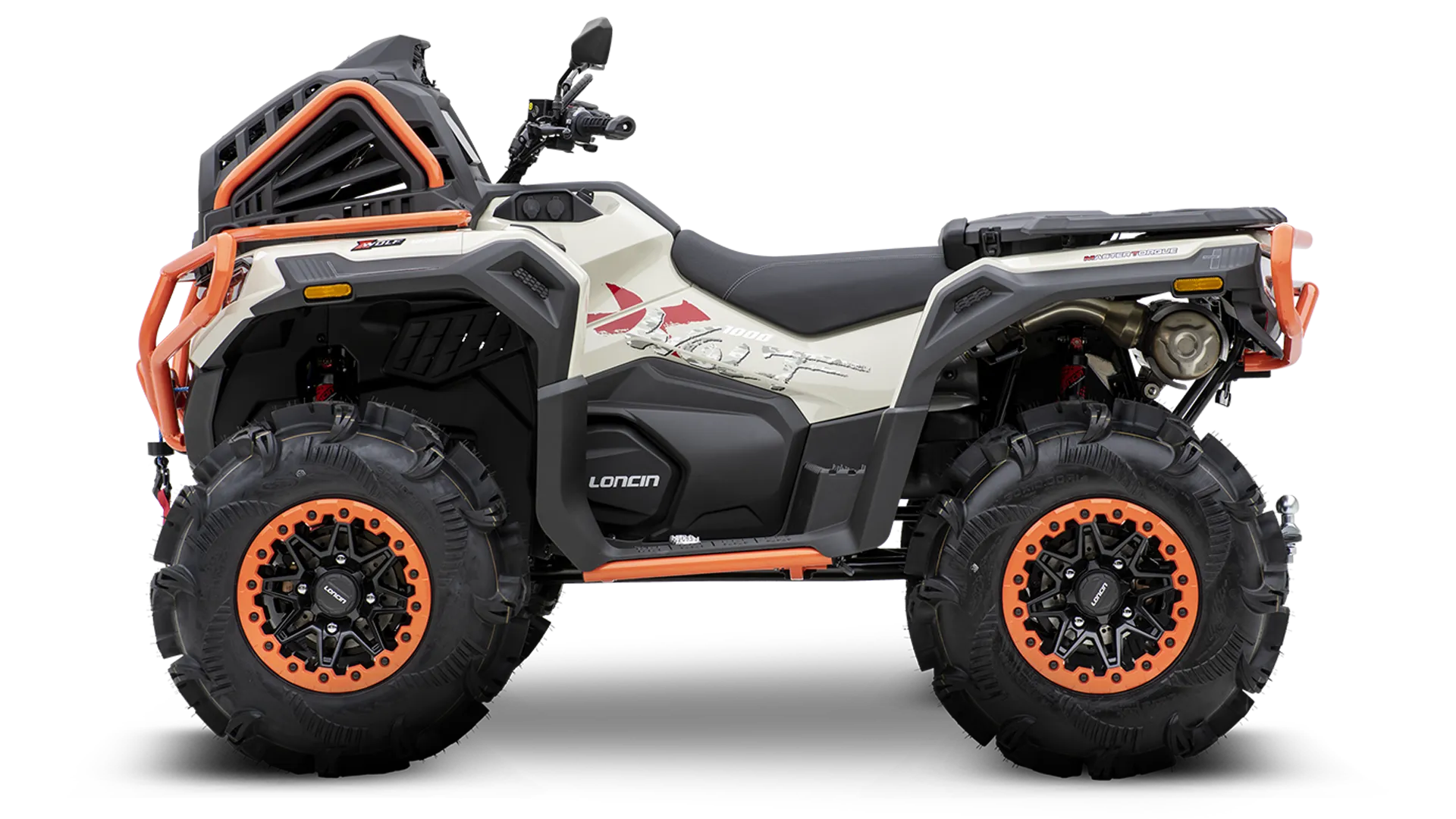

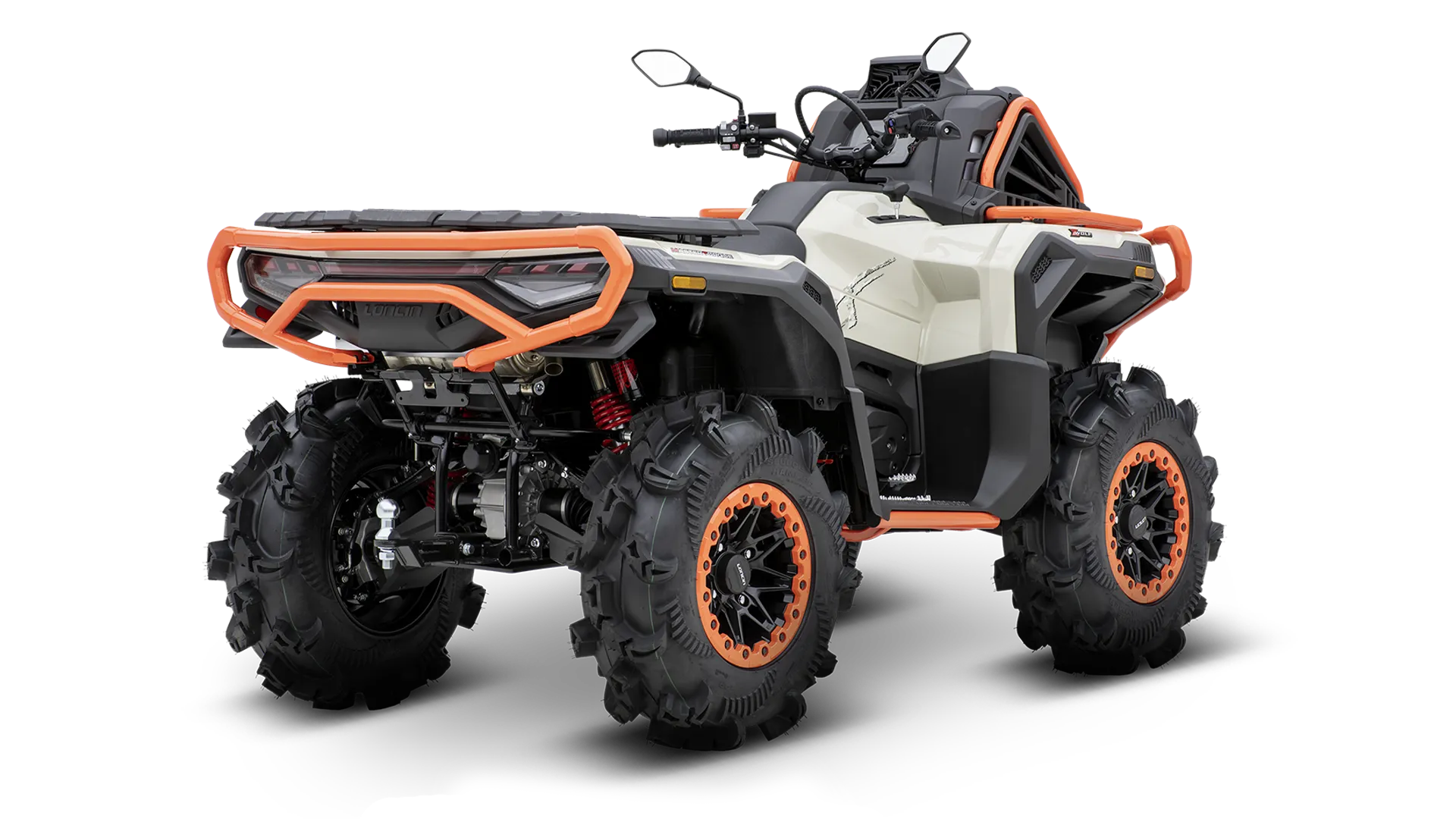

Multi-angle
images
Stronger power output
Equipped with a gearbox featuring an increased transmission ratio, along with a limited-slip differential and electronically controlled locking mechanism, it enhances ground grip, handling, and all-terrain traversability.

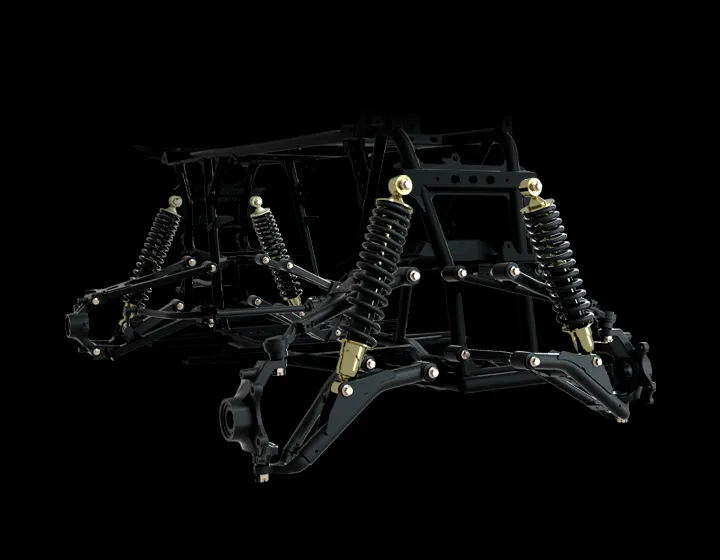

Excellent off-road capability
With front and rear arch-shaped double-A-arm suspensions and a high ground clearance of 343mm, it delivers exceptional off-road performance across all terrains.
Flexible and comfortable

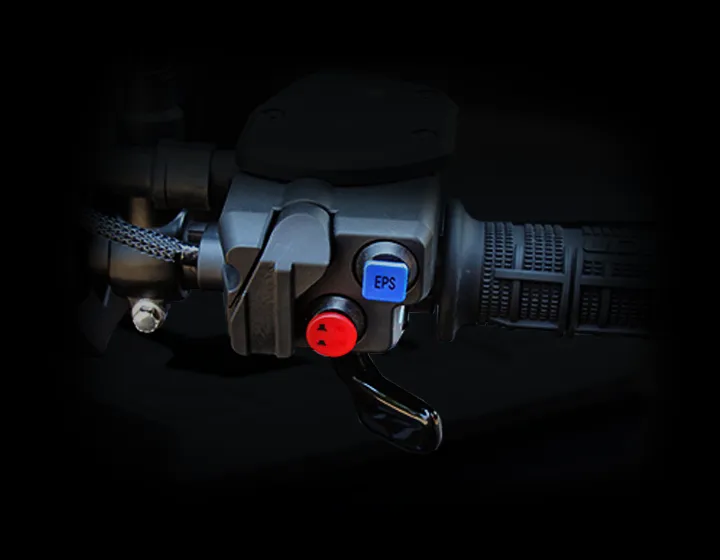

The three-mode EPS adapts to various driving conditions, reducing driver fatigue and enhancing comfort.

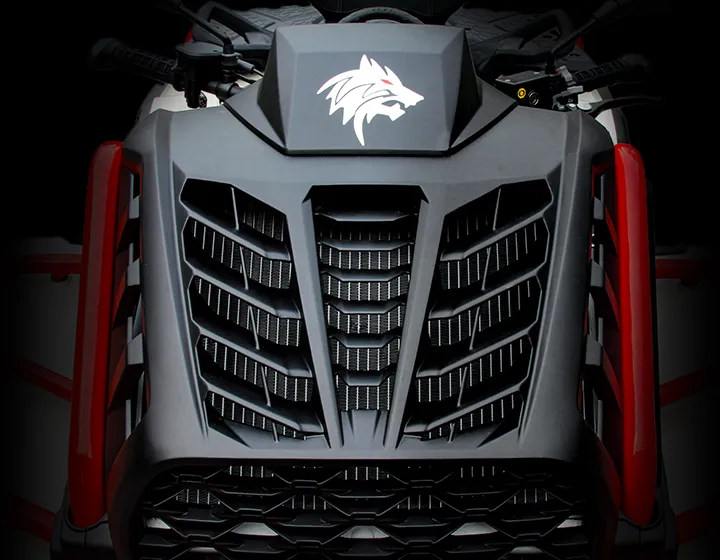

Efficient Heat Dissipation
The top-mounted radiator, combined with a brand-new front grille design, optimizes aerodynamics, enhances heat dissipation efficiency, and ensures engine performance under extreme operating conditions.
Safety Protection
Equipped with underbody armor, pedal supports, and front and rear external bumpers, it strengthens protection in complex road conditions and enhances driving safety.
LONCIN XWolf 1000 MUD Specifications
| Engine specification | V-twin cylinders, SOHC, 4 valves, liquid cooled |
| Displacement | 976cc |
| Bore x Stroke | 91×75mm |
| Compression ratio | 10.9:1 |
| Maximal power | 75kW/7000rpm |
| Maximal torque | 102N·m/5500rpm |
| Fuel supply | BOSCH ® EFI |
| Speed transmission | CVT, P/R/N/H/L |
| LxWxH | 2466x1340x1546mm |
| Wheelbase | 1500mm |
| Seat height | 1020mm |
| Minimum ground clearance | 343mm |
| Minimum turning radius | 3.7m |
| dry weight | 543kg |
| Maximal loading | 240kg |
| Fuel tank capacity | 33L |
| Drive mode | 2WD/4WD/4WD-Lock |
| Brake mode | Disc brake for 4 wheels |
| Suspension mode | Front：Double A-shaped arm of arch Rear：Double A-shaped arm |
| Front shock absorber | Piggyback gas shock absorbers |
| Rear shock absorber | Piggyback gas shock absorbers |
| Wheel hub specification | Aluminium wheel of 14 inches, with selectable dropping-proof wheel hub |
| Front tire | 30x10-14 |
| Rear tire | 30x10-14 |
