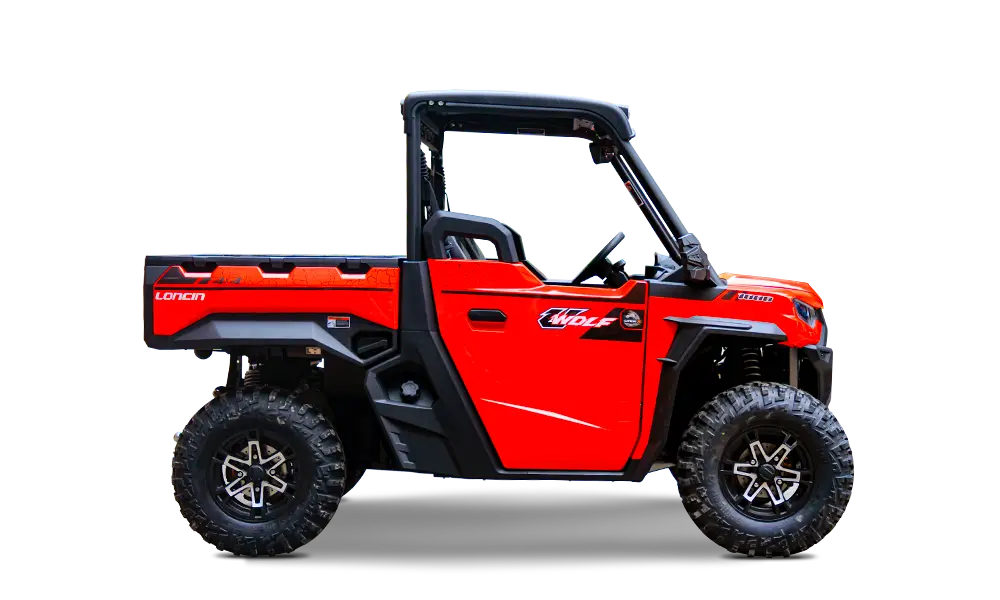

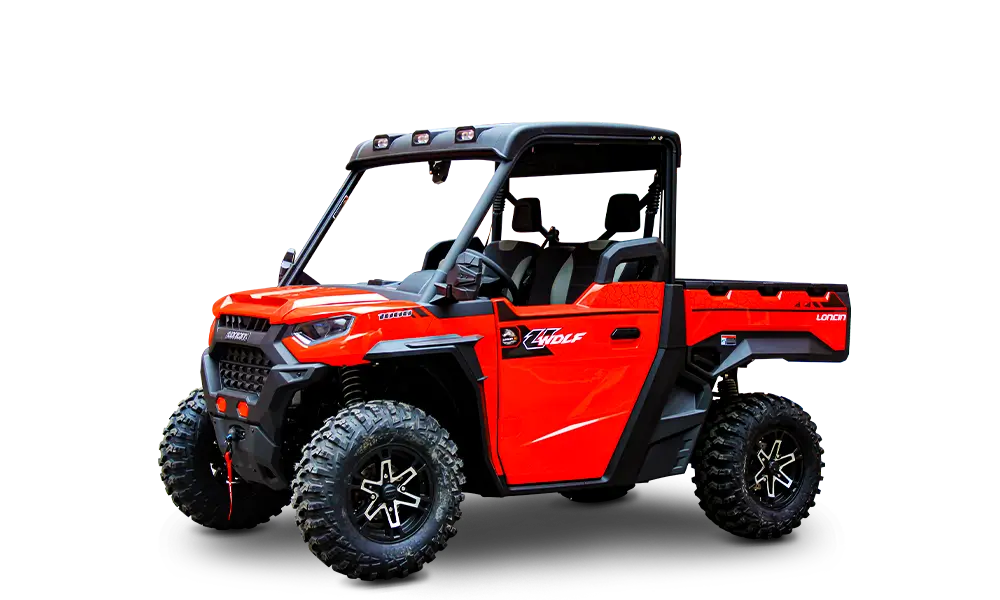

UWolf1000
UWolf1000
976 V-twin cylinder, Liquid-cooled, EFI, Electric throttle, Arched double A-arm with Fr./Rr Stabilizer Bar, Hydraulic shock absorption, HandleBrake, Fr./Rr. disk brake, Aluminum wheels, Tubeless Tyre(27/29in.), Turf/2wd/4wd/4wd-lock , Drive Mode, 4wd-lock differential lock, EPS(Tri-Mode), Longe range(45L), Multi-functional digital color instrument, Tilt Steering, Adjustable Driver Seat(Front & Rear/Angle), 4500lbs electric winch & Auto Stop, Hitch ball, Roof, Three front LED spotlights & two rear work lights, Half door, Cargo capacity 1200lbs, Easy maintenance, T1 EPA/CARB condition.
1000
Multi-angle
images
Super power
976cc V-twin engine delivers abundant power for fully loaded hill climbing and towing tasks, while electronic throttle ensures more precise and smooth handling.

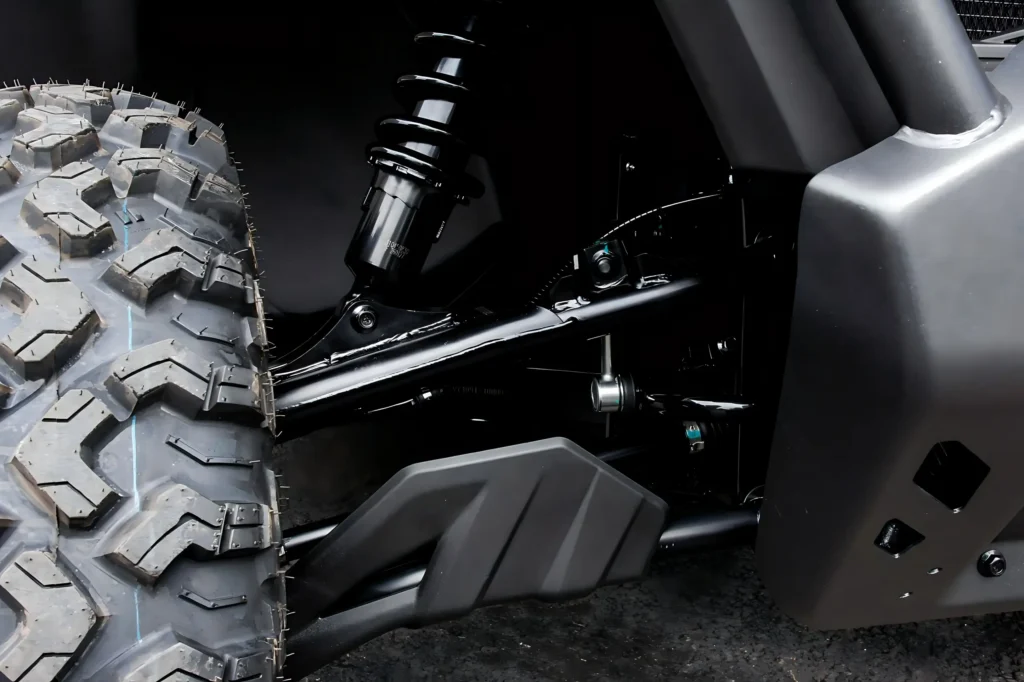

Front and rear double A-arm independent suspension
Front and rear arched double A-arm independent suspension with 286mm front / 260mm rear travel. The long stroke effectively absorbs shocks, greatly improving off-road capability and riding stability to handle rough terrain with ease.

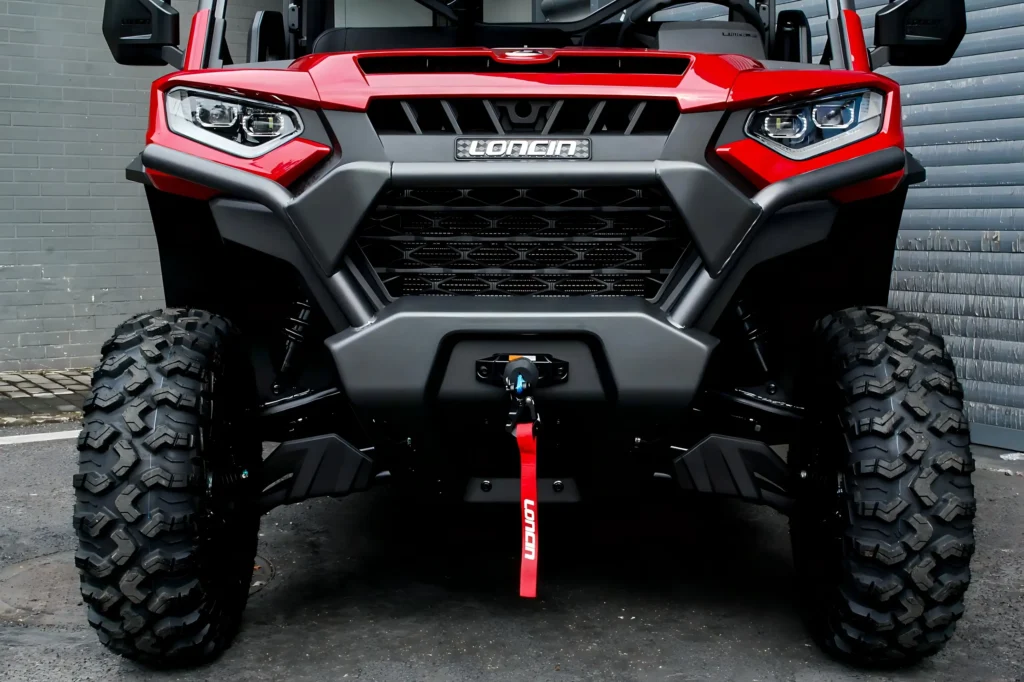

Excellent loading
Equipped with a 4500lbs remote-controlled winch (with auto-stop function), paired with 2500lbs towing capacity, showing beast-like strength.
High Load Capacity Cargo Bed
Equipped with a large-capacity tilting cargo bed with a 1200 lbs payload and 410L volume, it features strong load-bearing capacity to easily handle various heavy-duty work requirements.
long endurance
45L ultra-large capacity fuel tank, relieve riding anxiety

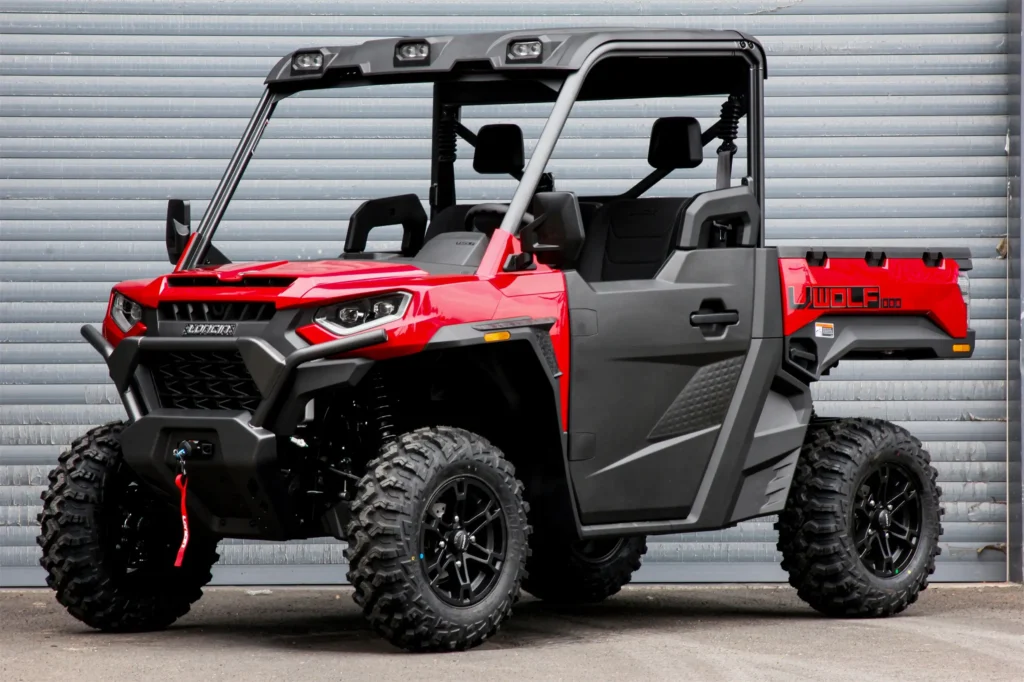

Fashionable appearance
Brand new tough styling with a 64-inch wide-body design for a more stable and powerful stance. Dual LED combined headlights, 120-meter high beams, and rear work lights ensure excellent night visibility, combining impressive presence with practicality.
Flexible control
3-mode EPS with return function, more flexible control
Easy to maintain
Openable front hatch cover, easy to maintain
LONCIN UWolf1000 Specifications
| Engine specification | V-twin cylinders，4-stroke，SOHC，4 valves |
| Displacement | 976cc |
| Bore x Stroke | 91×75mm |
| Compression ratio | 10.9:1 |
| Maximal power | 95hp(71kW)/6750rpm |
| Maximal torque | 108Nm/5750rpm |
| Fuel supply | EFI |
| Cooling mode | liquid cooled |
| Speed transmission | CVT P/R/N/H/L |
| LxWxH | 3046×1625×1964mm |
| Wheelbase | 2120mm |
| Minimum ground clearance | 300mm |
| Minimum turning radius | 4.2m |
| Dry Weight | 1726 lbs (782 kg) |
| Payload Capacity | 1700 lbs (771 kg) |
| Fuel tank capacity | 45L |
| Luggage case size | 920×1387×305 mm |
| Box Capacity | 1200 lbs (544 kg) |
| Drive mode | Turf / 2WD / 4WD / 4WD LOCK, Rear Differential |
| Brake mode | Disc brake for 4 wheels |
| Front suspension rack | Arch double A-arm, 286mm free travel |
| Rear suspension rack | Arch double A-arm, 265mm free travel |
| Front shock absorber | Fully adjustable air bag damping，Hydraulic |
| Rear shock absorber | Fully adjustable air bag damping，Hydraulic |
| Wheel hub specification | Aluminium wheel of 14 inches |
| Front tire | AT27×9 R14 |
| Rear tire | AT27×11 R14 |

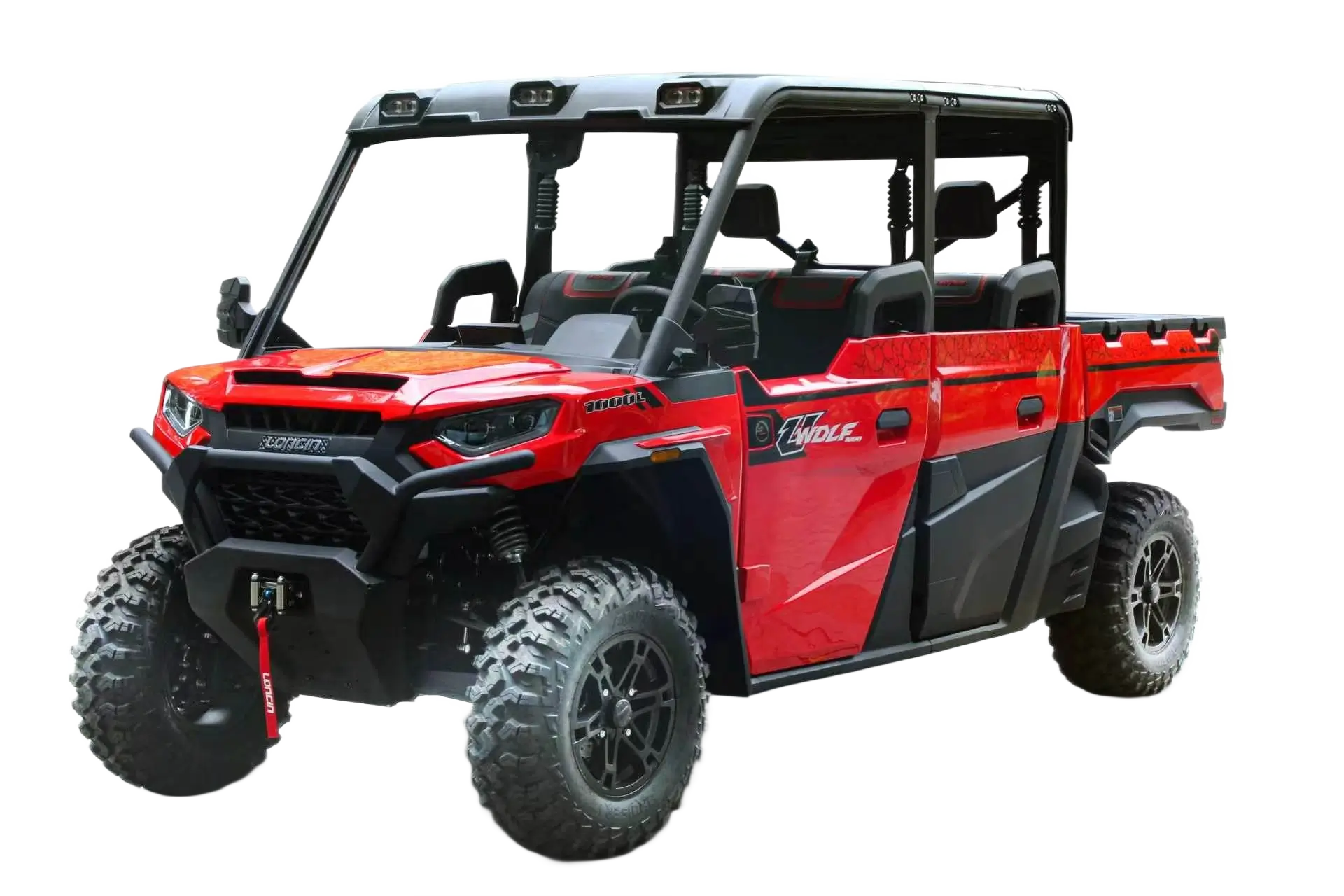

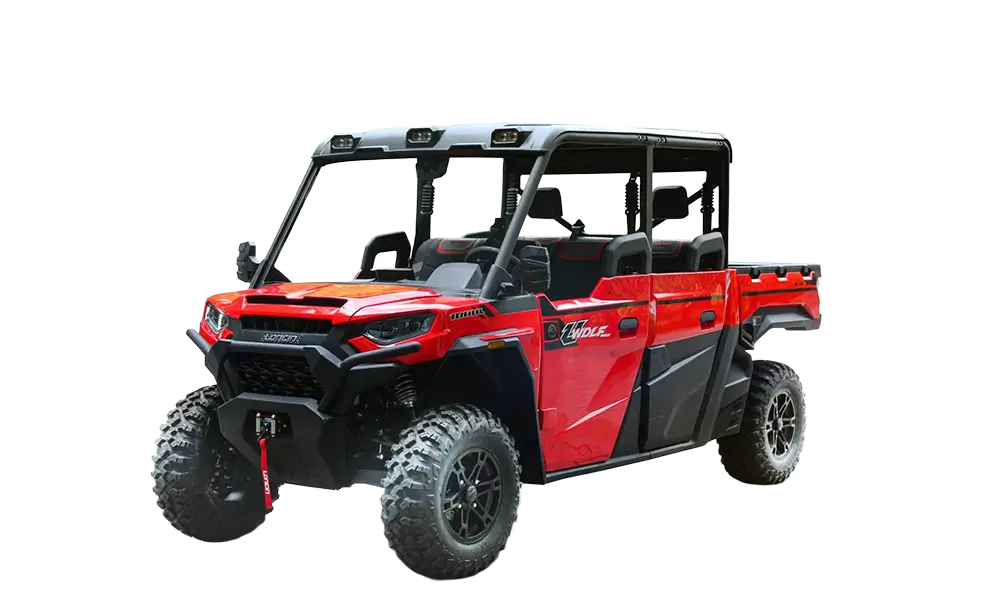

UWolf 1000L
976 V-twin cylinder, Liquid-cooled, EFI, Electric throttle, Arched double A-arm with Fr./Rr Stabilizer Bar, Hydraulic shock absorption, HandleBrake, Fr./Rr. disk brake, Aluminum wheels, Tubeless Tyre(27/29in.), Turf/2wd/4wd/4wd-lock , Drive Mode, 4wd-lock differential lock, EPS(Tri-Mode), Longe range(45L), Multi-functional digital color instrument, Tilt Steering, Adjustable Driver Seat(Front & Rear/Angle), 4500lbs electric winch & Auto Stop, Hitch ball, Roof, Three front LED spotlights & two rear work lights, Half door, Cargo capacity 1200lbs, Easy maintenance, T1 EPA/CARB condition.
1000L
Multi-angle
images

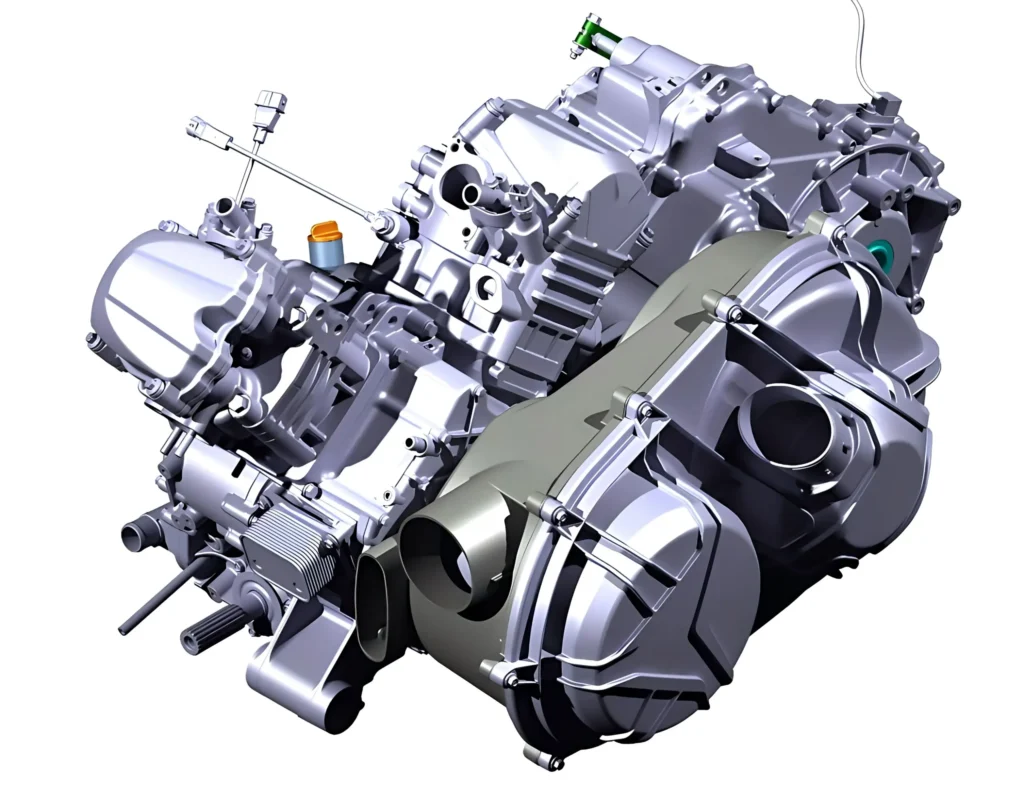

Super power
976cc V-twin engine delivers abundant power for fully loaded hill climbing and towing tasks, while electronic throttle ensures more precise and smooth handling.
Front and rear double A-arm independent suspension
Front and rear arched double A-arm independent suspension with 286mm front / 260mm rear travel. The long stroke effectively absorbs shocks, greatly improving off-road capability and riding stability to handle rough terrain with ease.
Excellent loading
Equipped with a 4500lbs remote-controlled winch (with auto-stop function), paired with 2500lbs towing capacity, showing beast-like strength.

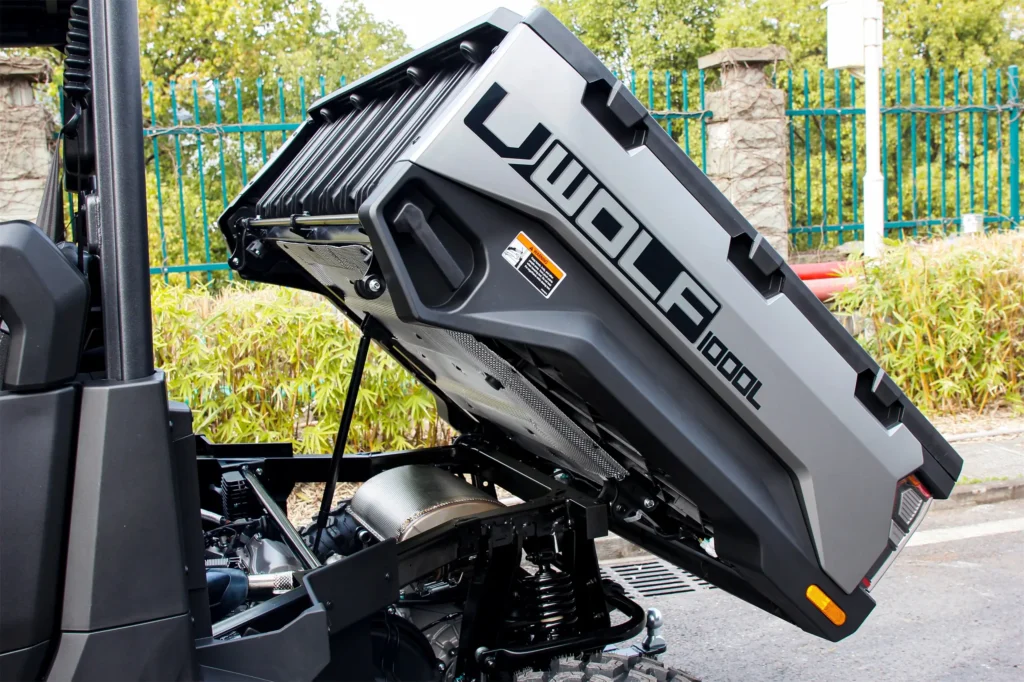

High Load Capacity Cargo Bed
Equipped with a large-capacity tilting cargo bed with a 1200 lbs payload and 410L volume, it features strong load-bearing capacity to easily handle various heavy-duty work requirements.

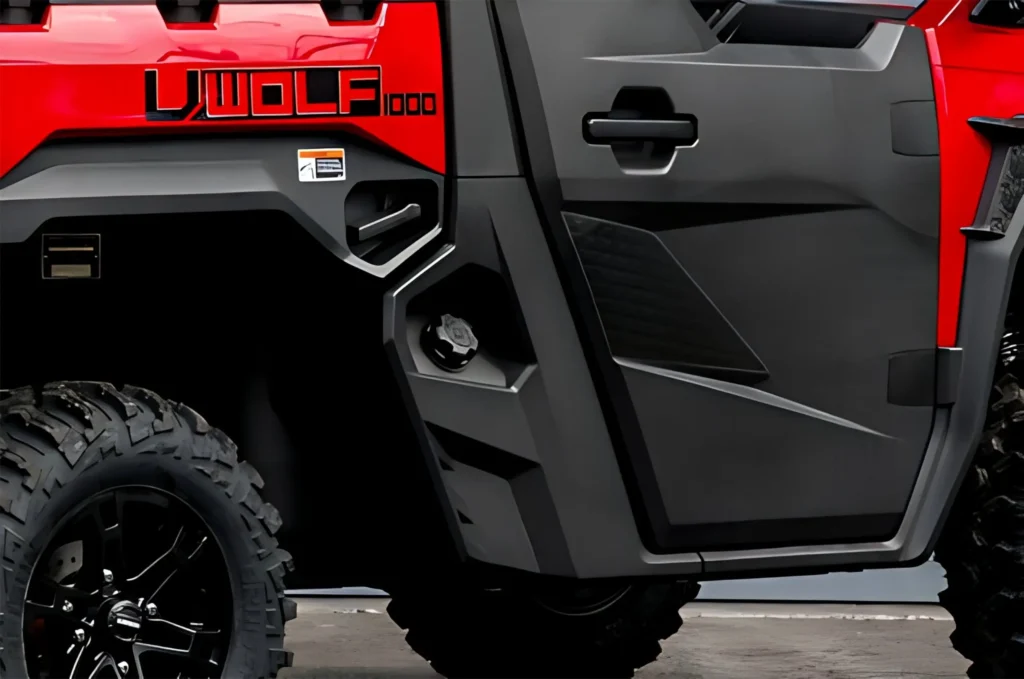

long endurance
45L ultra-large capacity fuel tank, relieve riding anxiety

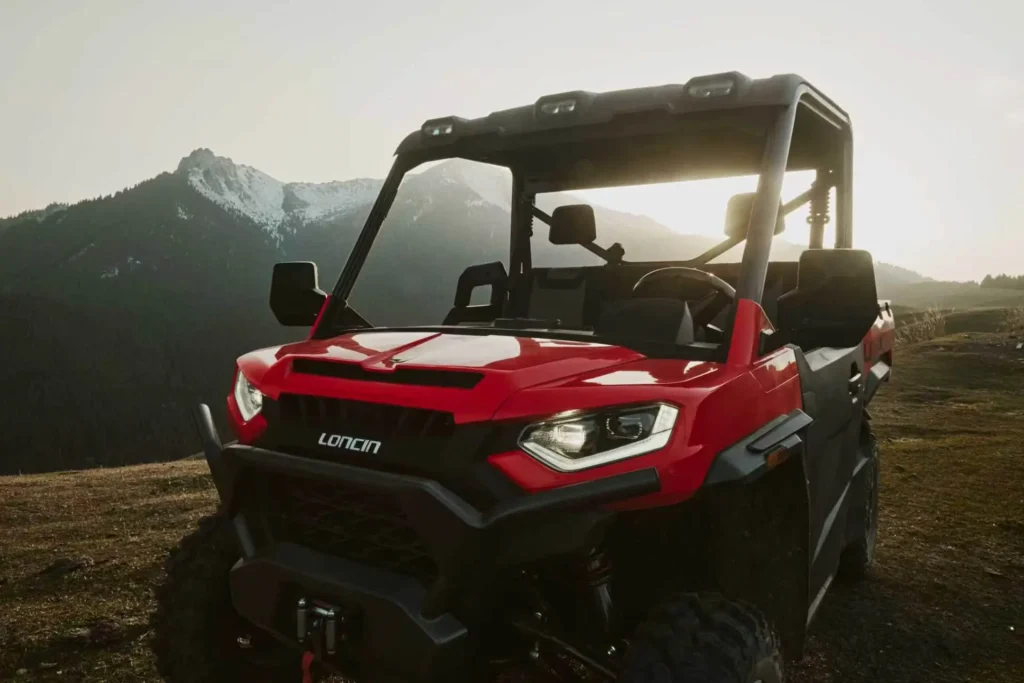

Fashionable appearance
Brand new tough styling with a 64-inch wide-body design for a more stable and powerful stance. Dual LED combined headlights, 120-meter high beams, and rear work lights ensure excellent night visibility, combining impressive presence with practicality.

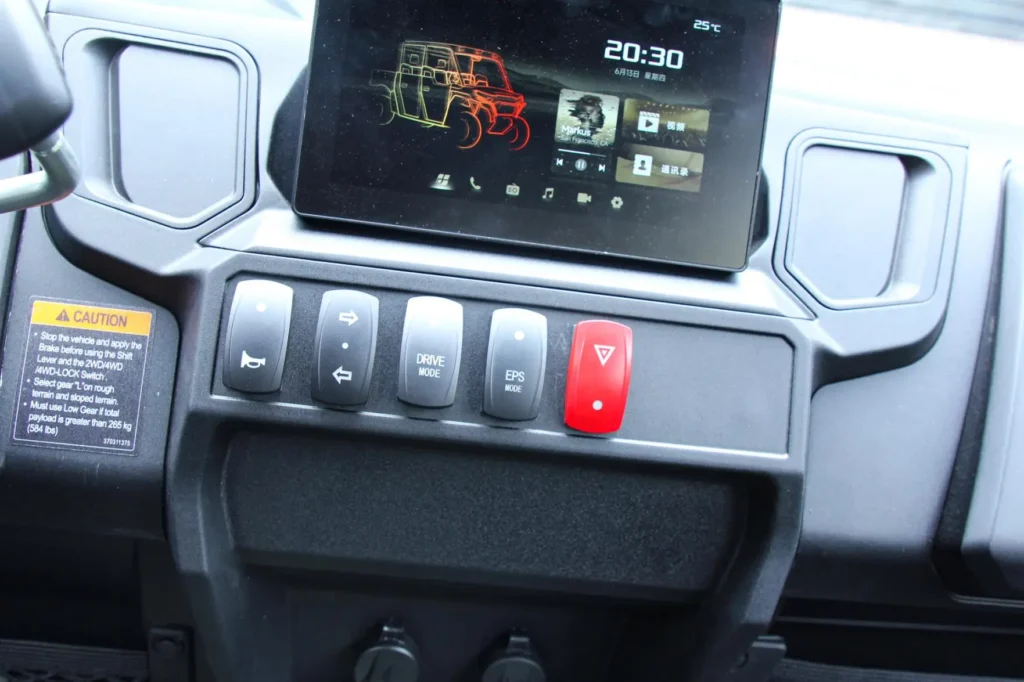

Flexible control
3-mode EPS with return function, more flexible control

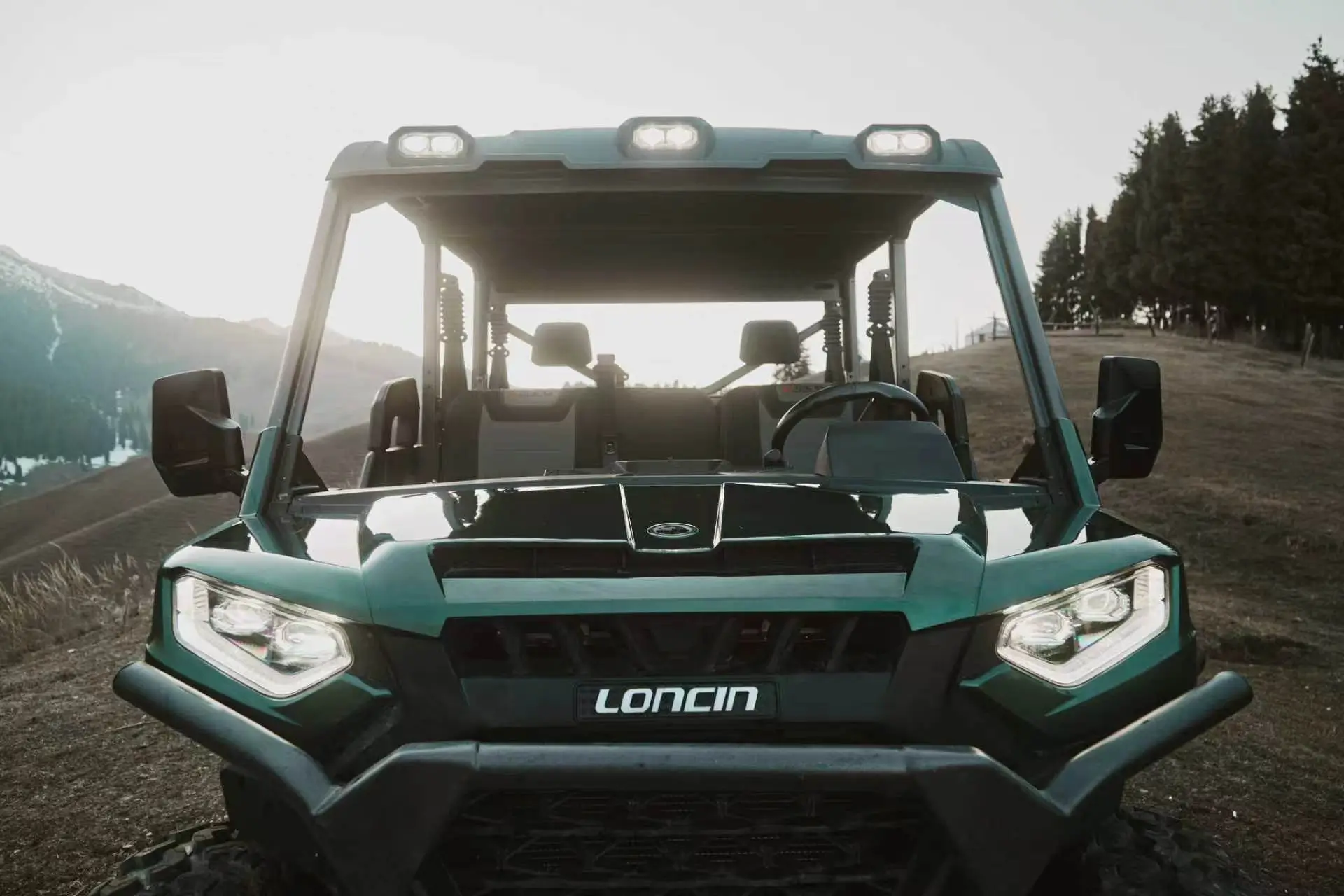

Easy to maintain
Openable front hatch cover, easy to maintain

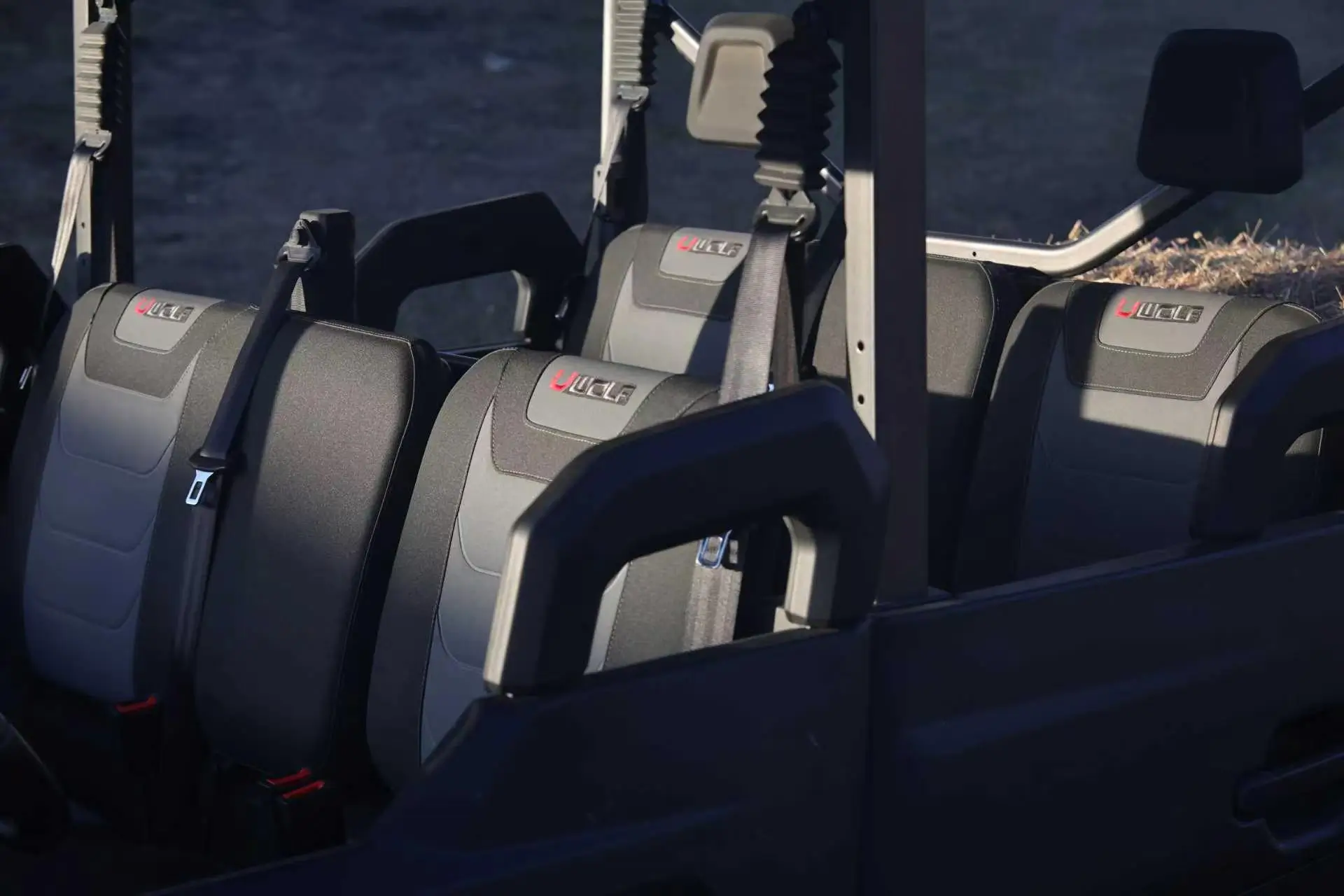

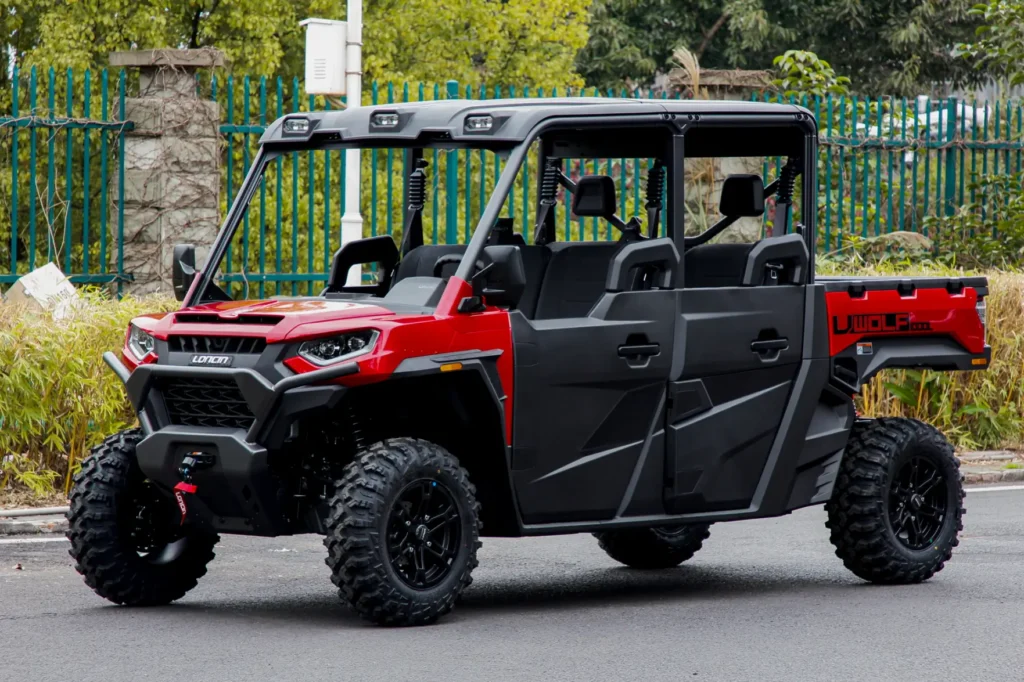

Spacious 6-seat layout
Designed for multi-passenger travel with a spacious six-seat layout, it offers ample room without crowding, suitable for team work and family outings, ensuring comfort for all.
LONCIN UWolf 1000L Specifications
| Engine specification | V-twin cylinders，4-stroke，SOHC，4 valves |
| Displacement | 976cc |
| Bore x Stroke | 91×75 |
| Compression ratio | 10.9:1 |
| Maximal power | 95hp(71kW)/6750rpm |
| Maximal torque | 108Nm/5750rpm |
| Fuel supply | EFI |
| Cooling mode | liquid cooled |
| Speed transmission | CVT P/R/N/H/L |
| LxWxH | 3846×1625×1975mm |
| Wheelbase | 2920mm |
| Minimum ground clearance | 300mm |
| Minimum turning radius | 5.4m |
| Dry Weight | 2048 lbs (929kg) |
| Payload Capacity | 1700 lbs (771 kg) |
| Fuel tank capacity | 45L |
| Luggage case size | 920×1387×305 mm |
| Box Capacity | 1200 lbs (544 kg) |
| Drive mode | Turf / 2WD / 4WD / 4WD LOCK, Rear Differential |
| Brake mode | Disc brake for 4 wheels |
| Front suspension rack | Arch double A-arm, 286mm free travel |
| Rear suspension rack | Arch double A-arm, 265mm free travel |
| Front shock absorber | Fully adjustable air bag damping，Hydraulic |
| Rear shock absorber | Fully adjustable air bag damping，Hydraulic |
| Wheel hub specification | Aluminium wheel of 14 inches |
| Front tire | AT27×9 R14 |
| Rear tire | AT27×11 R14 |
